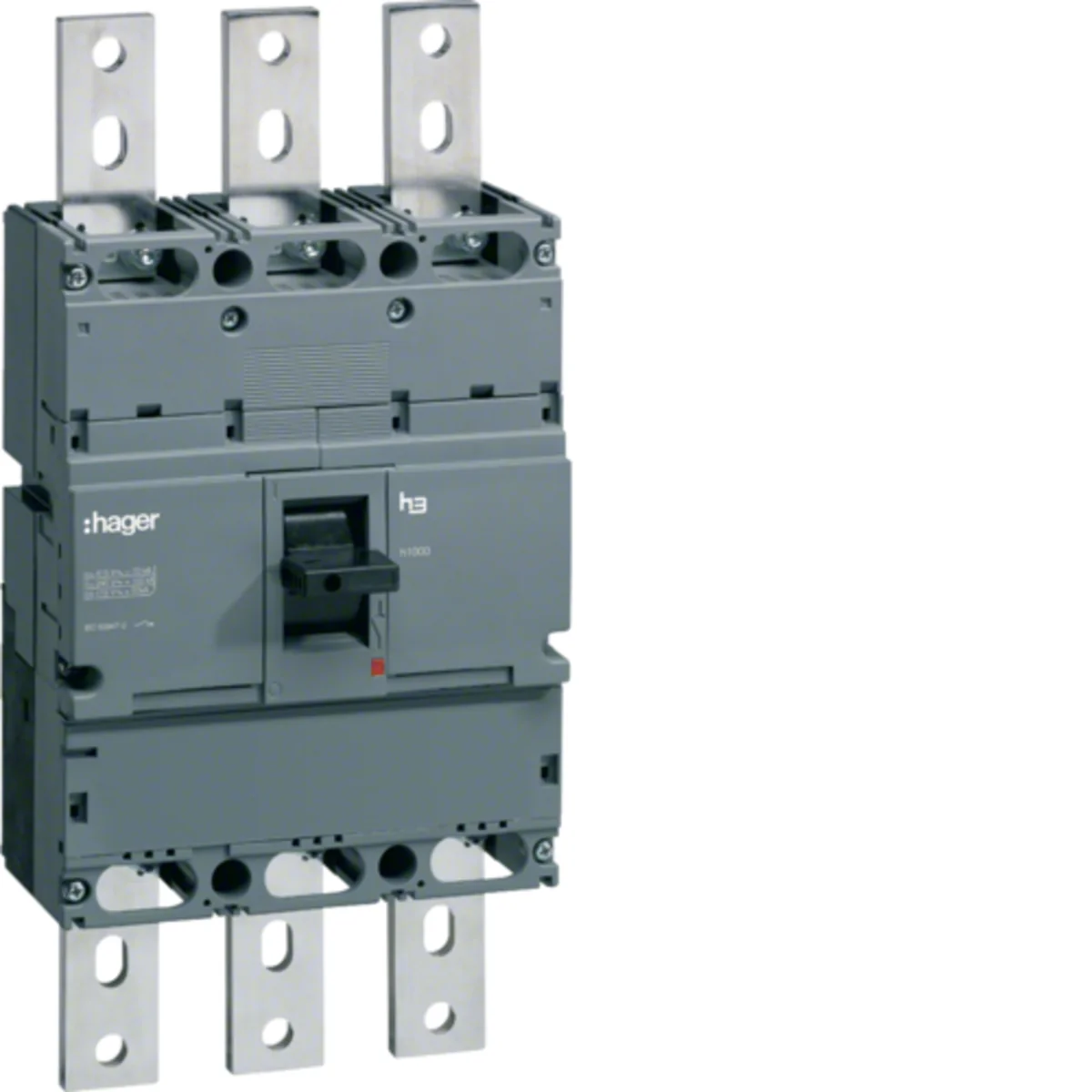

Load switch h1000 3P 800A HCE800H
local index:
ALM011HAGE
Catalog No:
HCE800H
EAN code:
3250613363178
Price:
1955,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power switches:
• for switching on and off operating currents, not equipped with releases
• accessories as for switchesów
• Icw (0.3s) = 10kA
• compliant with IEC 60947-3, cat. AC22A/AC23A
Features:
• supplied with terminal extensions, pole barriers and lever extensions as standard
• mounting on a mounting plate
• mechanical button TEST
• standard connection with cable lugs with hole ∅ 13 mm, width max. 50mm
• for switching on and off operating currents, not equipped with releases
• accessories as for switchesów
• Icw (0.3s) = 10kA
• compliant with IEC 60947-3, cat. AC22A/AC23A
Features:
• supplied with terminal extensions, pole barriers and lever extensions as standard
• mounting on a mounting plate
• mechanical button TEST
• standard connection with cable lugs with hole ∅ 13 mm, width max. 50mm
Technical data
-
Number of poles3
-
Rated insulation voltage [V]800
-
Electrical endurance (number of cycles)1000
-
PKWIU27.12.22.0
-
Surge voltage [kV]8000
-
Rated current [A]800
-
Mechanical durability (number of cycles)4000
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu800 A
-
Rated short-time withstand current lcw10 kA
-
Switching power at 400 V526 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP40
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage220 ... 690 V
-
Rated permanent current at AC-21, 400 V800 A
-
Rated operation power at AC-23, 400 V360 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementToggle
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (NEMA)Other
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 25 pcs. |
| Weight (kg) | 8,500 | 9,600 | 263,000 |
| Width (m) | 0,210 | 0,315 | 0,800 |
| Length (m) | 0,145 | 0,210 | 1,050 |
| Depth (m) | 0,435 | 0,535 | 1,200 |
