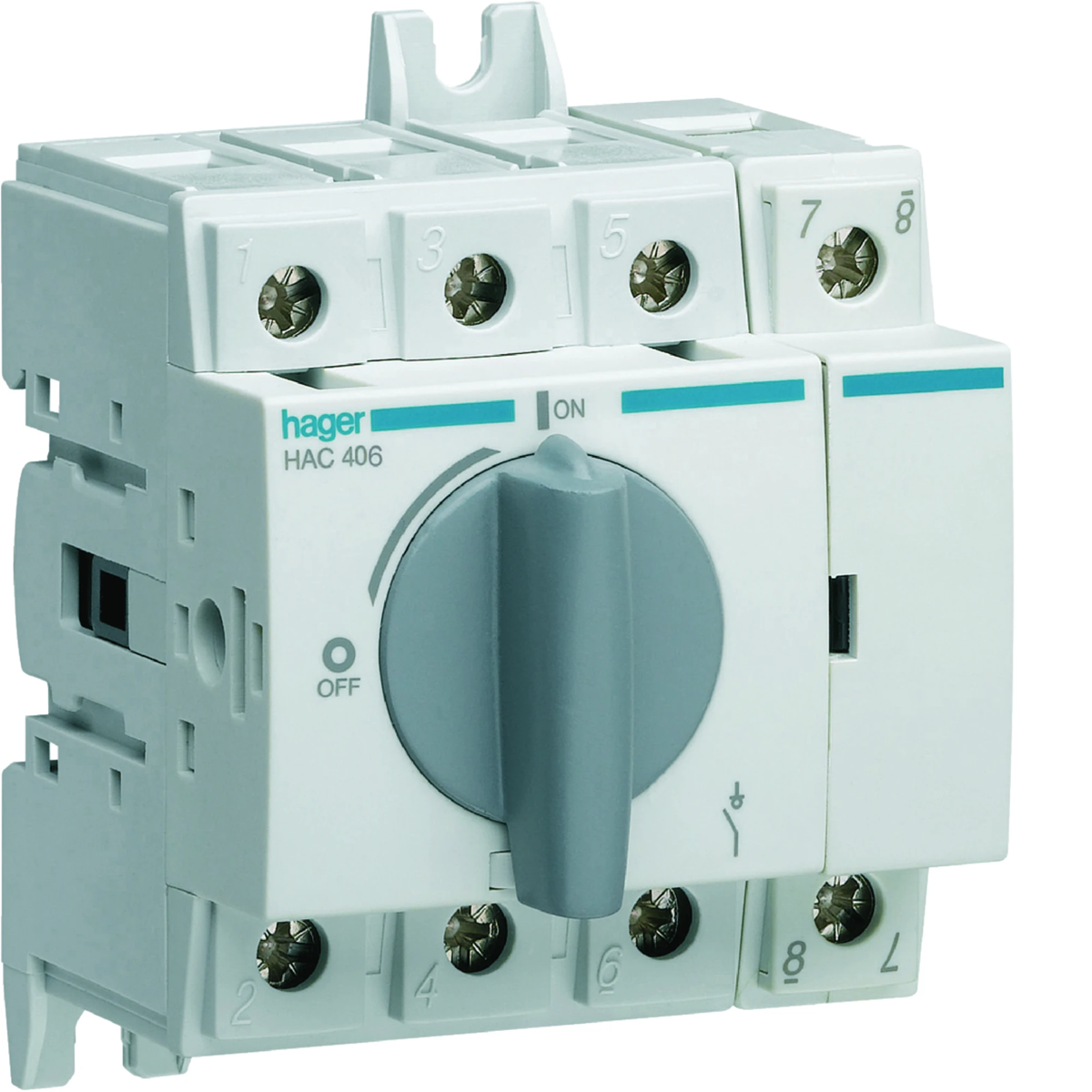

Load switch 4P 63A HAC406

local index:
ALB052HAGE
Catalog No:
HAC406
EAN code:
3250613140373
Manufacturer: HAGER
Rated frequency [Hz]: 50
Number of poles: 4
Rated insulation voltage [V]: 800
Price:
54,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular rotary handle switch disconnector, size 3

Technical data

  • Rated frequency [Hz]
    50
  • Rated insulation voltage [V]
    800
  • power loss [W]
    6
  • Rated impulse voltage [kV]
    8
  • Number of modules
    4
  • PKWIU
    27.12.22.0
  • Number of poles
    4
  • Rated current [A]
    63
  • Power loss per pole [W]
    1.5
  • Connection type
    With a screw
  • AC rated voltage [V]
    380/415

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    415 V
  • Rated permanent current Iu
    63 A
  • Rated permanent current at AC-21, 400 V
    63 A
  • Rated operation power at AC-23, 400 V
    28 kW
  • Conditioned rated short-circuit current Iq
    50 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Grey
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP20
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    380 ... 415 V
  • Rated permanent current at AC-23, 400 V
    63 A
  • Rated short-time withstand current lcw
    1.5 kA
  • Switching power at 400 V
    41 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Short thumb-grip
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 18 pcs. 432 pcs.
Weight (kg) 0,404 0,405 7,635 206,240
Width (m) 0,085 0,090 0,290 0,800
Length (m) 0,035 0,085 0,180 1,050
Depth (m) 0,072 0,115 0,350 1,200
