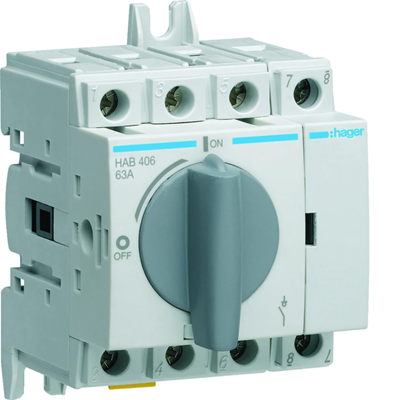

Load switch 4P 63A HAB406
local index:
ALI050HAGE
Catalog No:
HAB406
EAN code:
3250613140366
Price:
56,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Product features:
• modular disconnectors, mounting on a TS35 mounting rail or on a mounting plate
• knob directly on the device, with the possibility of closing with a padlock in the off state
• possibility of using a rotary mechanism on the cabinet door, contactóin auxiliary, connection covers
Characteristics:
• size 1, 2, 3 with visible contact status indicationów
• size 4 with visible insulation gap
• degree of protection: IP20
Connections with cage terminals:
(data for wire)
size 1: 1.5-16 mm2
size 2: 2.5-35 mm2
size 3, 4: 10-70mm2
HIM402, HIM404: 1.5-16mm2
HIM406, HIM408: 2.5-35mm2
• modular disconnectors, mounting on a TS35 mounting rail or on a mounting plate
• knob directly on the device, with the possibility of closing with a padlock in the off state
• possibility of using a rotary mechanism on the cabinet door, contactóin auxiliary, connection covers
Characteristics:
• size 1, 2, 3 with visible contact status indicationów
• size 4 with visible insulation gap
• degree of protection: IP20
Connections with cage terminals:
(data for wire)
size 1: 1.5-16 mm2
size 2: 2.5-35 mm2
size 3, 4: 10-70mm2
HIM402, HIM404: 1.5-16mm2
HIM406, HIM408: 2.5-35mm2
Technical data
-
Number of modules3.42
-
Surge voltage [kV]8000
-
Rated current [A]63
-
PKWIU27.12.22.0
-
Number of poles4
-
Rated insulation voltage [V]800
-
Number of modules3.42
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu63 A
-
Rated permanent current at AC-21, 400 V63 A
-
Rated operation power at AC-23, 400 V28 kW
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-23, 400 V40 A
-
Rated short-time withstand current lcw1.26 kA
-
Switching power at 400 V41 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementShort thumb-grip
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)Other
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 18 pcs. | 720 pcs. |
| Weight (kg) | 0,230 | 0,288 | 5,550 | 245,000 |
| Width (m) | 0,075 | 0,087 | 0,286 | 0,800 |
| Length (m) | 0,068 | 0,081 | 0,180 | 1,200 |
| Depth (m) | 0,060 | 0,112 | 0,373 | 1,200 |
