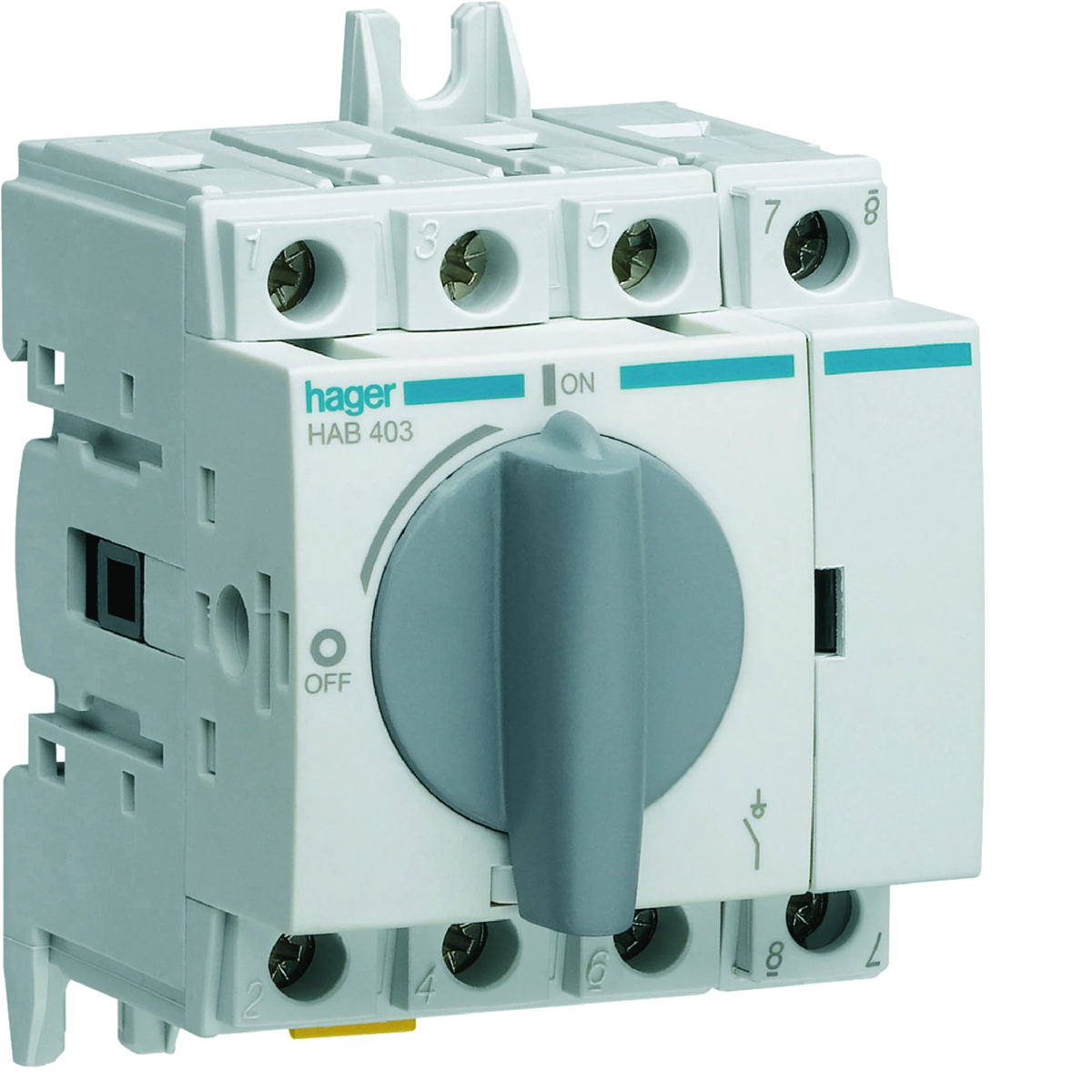

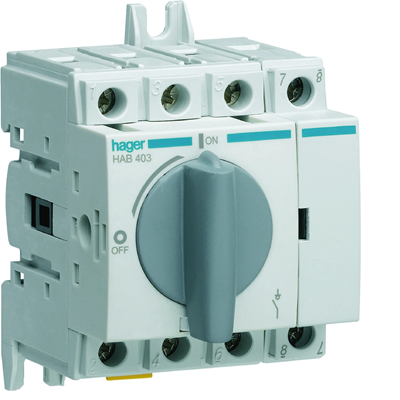

Load switch 4P 32A HAB403

local index:
ALI067HAGE
Catalog No:
HAB403
EAN code:
3250613140342
Manufacturer: HAGER
Rated frequency [Hz]: 50
Number of poles: 4
Rated insulation voltage [V]: 800
Price:
42,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Product features:

  •  modular switch disconnectors, mounting on a TS35 mounting rail or on a mounting plate
  •  handle directly on the device, with the possibility of closing the pins In the off state
  •  possibility of using a rotary mechanism on the cabinet door, auxiliary contacts, connection covers

Characteristics:

  •  size 1, 2, 3 with visible indication of the contact status
  •  size 4 with visible insulating gap
  •  degree of protection: IP20

Connections with cage clamps:
(wire data)

  • size 1: 1.5-16 mm2
  • size 2 : 2.5-35mm2
  • size 3, 4: 10-70mm2 HIM402,
  • HIM404: 1.5-16mm2 HIM406,
  • HIM408 : 2.5-35 mm2

Norm: PN-EN 60947-3

Technical data

  • Rated frequency [Hz]
    50
  • Rated insulation voltage [V]
    800
  • Surge voltage [V]
    8000
  • Rated switching voltage [V]
    380/415
  • PKWIU
    27.12.22.0
  • Number of poles
    4
  • Connection
    Screw
  • Rated current [A]
    32
  • Number of modules
    3.42

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    415 V
  • Rated permanent current Iu
    32 A
  • Rated permanent current at AC-21, 400 V
    32 A
  • Rated operation power at AC-23, 400 V
    14 kW
  • Conditioned rated short-circuit current Iq
    50 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Grey
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP20
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    380 ... 415 V
  • Rated permanent current at AC-23, 400 V
    32 A
  • Rated short-time withstand current lcw
    1.26 kA
  • Switching power at 400 V
    21 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Short thumb-grip
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 18 pcs. 432 pcs.
Weight (kg) 0,230 0,292 5,538 157,912
Width (m) 0,075 0,087 0,295 0,800
Length (m) 0,068 0,082 0,183 1,050
Depth (m) 0,060 0,113 0,373 1,200
