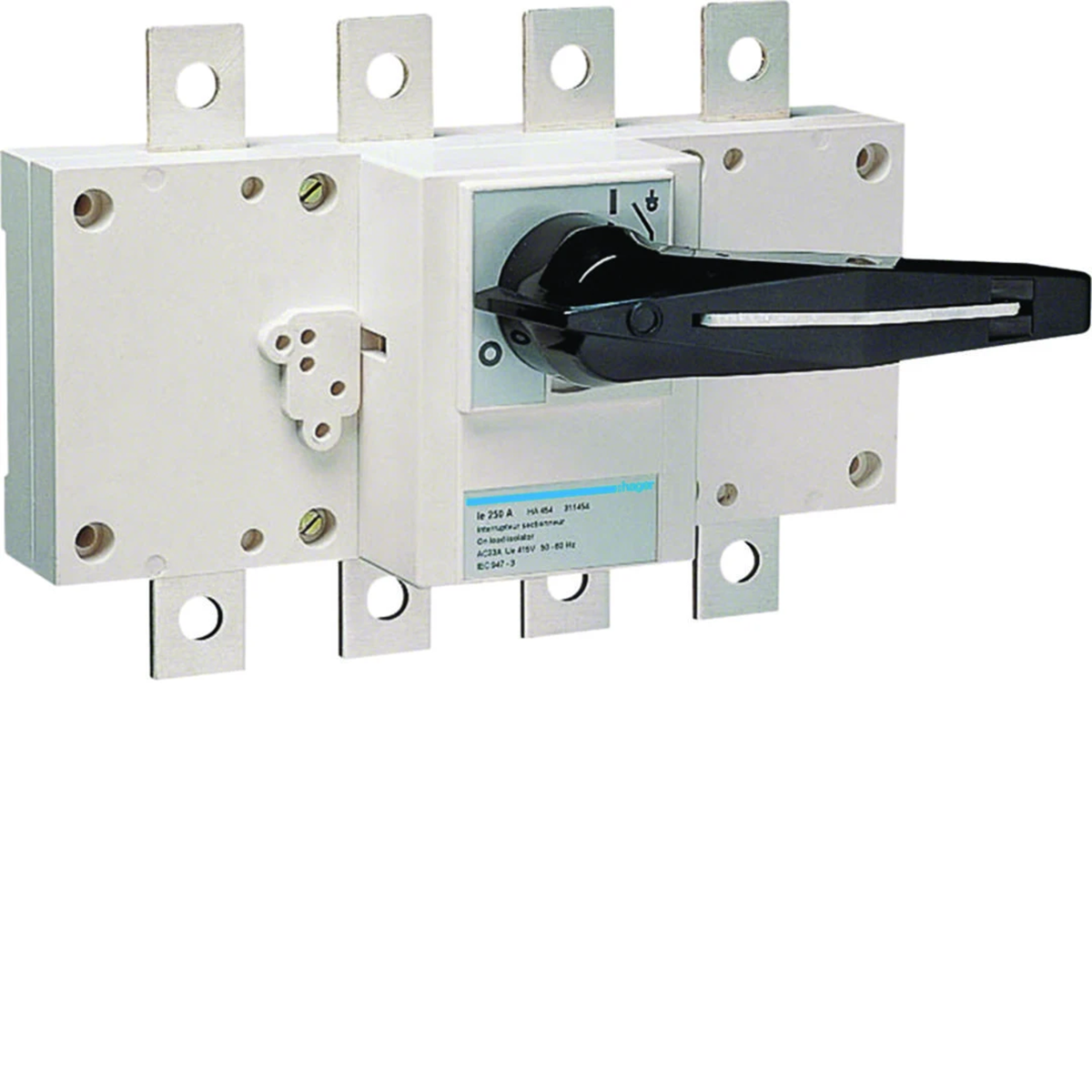

Load switch 4 pole. 250A HA454
local index:
ALB005HAGE
Catalog No:
HA454
EAN code:
3250613114541
Price:
422,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
HA switch disconnectors from 125 to 3200 A. - Power switch for installation in univers N and univers N HC switchgears with components:
- direct rotary drive,
- In from 125 to 3200 A,
- safe power on and off in low voltage circuits
Additional equipment:
- cage terminals (up to In = 630 A),
- disconnector covers and terminal covers
- auxiliary contacts,
- rotary drive for mounting on the switchgear door.
- direct rotary drive,
- In from 125 to 3200 A,
- safe power on and off in low voltage circuits
Additional equipment:
- cage terminals (up to In = 630 A),
- disconnector covers and terminal covers
- auxiliary contacts,
- rotary drive for mounting on the switchgear door.
Technical data
-
Number of poles4
-
Continuous current [A]250
-
PKWIU27.12.22.0
-
Rated voltage [V]690
-
Level of securityIP20
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu250 A
-
Rated permanent current at AC-21, 400 V250 A
-
Rated operation power at AC-23, 400 V112 kW
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP00
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-23, 400 V200 A
-
Rated short-time withstand current lcw9 kA
-
Switching power at 400 V164 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementLong turning handle
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (NEMA)Other
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 3 pcs. | 72 pcs. |
| Weight (kg) | 2,210 | 2,279 | 7,201 | 195,824 |
| Width (m) | 0,230 | 0,176 | 0,321 | 0,800 |
| Length (m) | 0,160 | 0,110 | 0,211 | 0,994 |
| Depth (m) | 0,125 | 0,239 | 0,367 | 1,200 |
