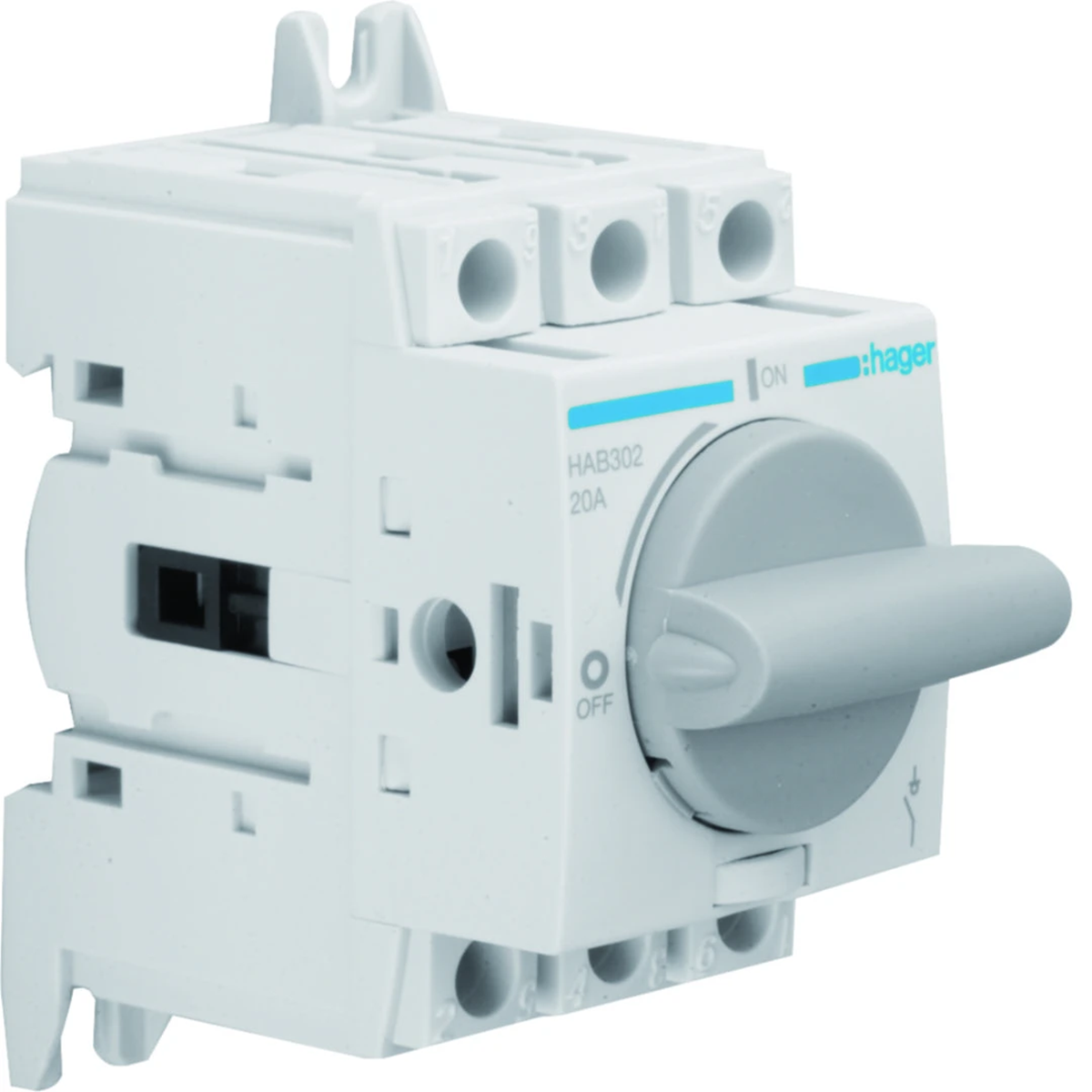

Load switch 3P 20A HAB302

local index:
ALI170HAGE
Catalog No:
HAB302
EAN code:
3250613140236
Manufacturer: HAGER
Number of modules: 2.57
Number of poles: 3
Surge voltage [kV]: 8000
Price:
31,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Product features:
• modular disconnectors, mounting on a TS35 mounting rail or on a mounting plate
• knob directly on the device, with the possibility of padlocking in the off state
•possibility of using a rotary mechanism on the cabinet door, auxiliary contacts, connection covers
Characteristics:
• size 1, 2, 3 with visible  contact status indicationów
• size 4 with visible insulation gap
• degree of protection: IP20 Connections with cage clamps:
(data for wire)
size 1: 1.5-16 mm2
size 2: 2.5-35 mm2
size 3 , 4: 10-70mm2
HIM402, HIM404: 1.5-16mm2
HIM406, HIM408: 2.5-35mm2

Technical data

  • Number of modules
    2.57
  • Surge voltage [kV]
    8000
  • Rated current [A]
    20
  • PKWIU
    27.12.22.0
  • Number of poles
    3
  • Rated insulation voltage [V]
    800
  • Number of modules
    2.57

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    415 V
  • Rated permanent current Iu
    20 A
  • Rated permanent current at AC-21, 400 V
    20 A
  • Rated operation power at AC-23, 400 V
    9 kW
  • Conditioned rated short-circuit current Iq
    50 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Grey
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP20
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    380 ... 415 V
  • Rated permanent current at AC-23, 400 V
    20 A
  • Rated short-time withstand current lcw
    1.26 kA
  • Switching power at 400 V
    13 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Short thumb-grip
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,219 0,220 5,660 160,840
Width (m) 0,085 0,175 0,245 0,800
Length (m) 0,065 0,105 0,187 0,900
Depth (m) 0,110 0,235 0,360 1,200
