LO-250Z switch disconnector A53AA-05040200100
local index:
ALM009ERGO
Catalog No:
A53AA-05040200100
EAN code:
5900003350834
Manufacturer:
ERGOM
short name: LO-250Z
Price:
542,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

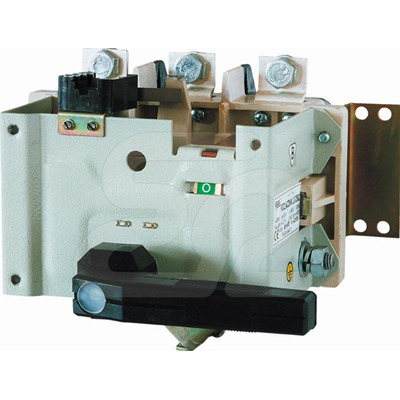

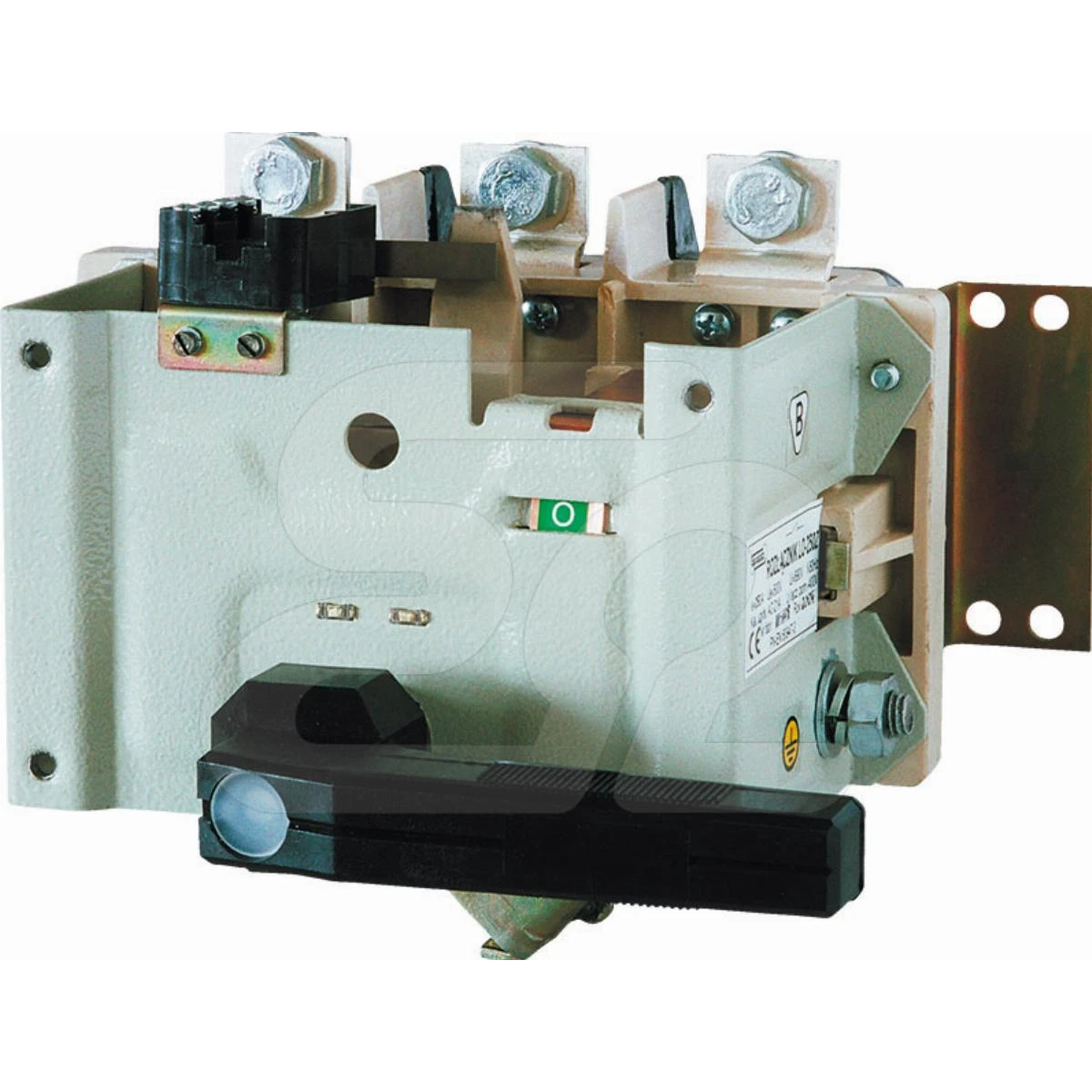

LO-250Z switch disconnector
Technical data
-
short nameLO-250Z
-
PKWIU27.12.23.0
Other technical data
-
Version as main switchNo
-
Version as safety switchNo
-
Max. rated operation voltage Ue AC400 V
-
Rated operation power at AC-23, 400 V0 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact2
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreYes
-
Suitable for intermediate mountingNo
-
InterlockableNo
-
Degree of protection (IP), front sideIP00
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationNo
-
Rated permanent current Iu250 A
-
Conditioned rated short-circuit current Iq15 kA
-
Number of auxiliary contacts as normally closed contact2
-
Number of auxiliary contacts as change-over contact4
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationNo
-
Type of control elementRocker lever
-
Type of electrical connection of main circuitScrew connection
Manufacturer details
-
ManufacturerERGOM Zakład Aparatury Elektrycznej Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10
-
Phone number
-
E-mail
-
Tax identification number7260129071
-
GLN5900009930221
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 3,150 |
| Width (m) | 2,100 |
| Length (m) | 1,800 |
| Depth (m) | 1,900 |
