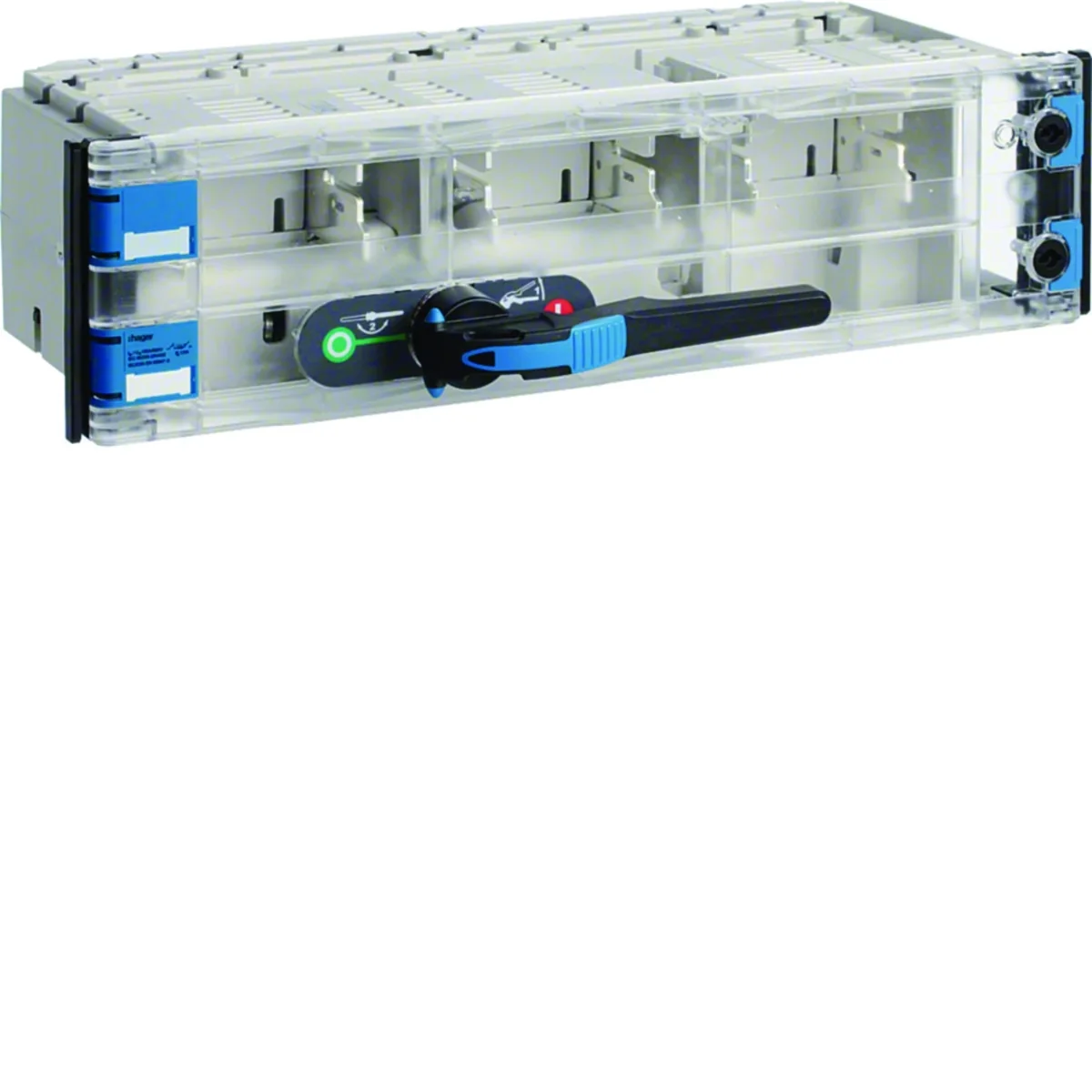

LLK-3 Horizontal Fuse Switch With Ammeter 1 Phase 600 A Right 3 Pole AC22B LLK075

local index:
ALB109HAGE
Catalog No:
LLK075
EAN code:
4049857163786
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 3
Tightening torque [Nm]: thirty
Price:
1418,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switch disconnector with LL series fuses:

  • with ammeter,
  • 1-phase,< /li>
  • horizontal
  • group 3,
  • right outlet,
  • AC22B.

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    thirty
  • Family
    LL
  • Connection type
    Vice
  • Height [mm]
    149.5
  • Mechanical durability (number of cycles)
    800
  • Fuse link rated current [A]
    0/630
  • storage temperature [°C]
    from -25 to 55
  • Wire cross-section (cord) [mm²]
    95
  • PKWIU
    27.12.23.0
  • Number of poles
    3
  • Rated insulation voltage [V]
    1000
  • power loss [W]
    295
  • Fuse link size
    NH3
  • Electrical endurance (number of cycles)
    200
  • Rated switching voltage [V]
    0/690
  • Conventional short-circuit current [kA]
    80
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    95

Other technical data

  • Version as main switch
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Rated operation power at AC-23, 400 V
    0.295 kW
  • Rated short-time withstand current lcw
    55 kA
  • Number of poles
    3
  • Type of electrical connection of main circuit
    Cable clamp
  • Equipped with connectors
    No
  • Suitable for front mounting
    No
  • Type of control element
    Long turning handle
  • Motor drive optional
    No
  • Version as emergency stop installation
    No
  • Version as safety switch
    No
  • Rated permanent current Iu
    630 A
  • Conditioned rated short-circuit current Iq
    55 kA
  • Suitable for fuses
    NH3
  • With error protection
    No
  • Cable entry
    Side
  • Suitable for floor mounting
    No
  • Suitable for busbar mounting
    Yes
  • Position control element
    Front side
  • Motor drive integrated
    Yes
  • Degree of protection (IP), front side
    IP40

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 14 pcs.
Weight (kg) 14,149 15,550 217,700
Width (m) 0,280 0,410 0,800
Length (m) 0,149 0,175 0,750
Depth (m) 0,590 0,675 1,200
