LLK-3 Horizontal 3-phase switch disconnector with fuses 600/5A SKL strip right 3-pole AC23B LLK692

Name: LLK-3 Horizontal 3-phase switch disconnector with fuses 600/5A SKL strip right 3-pole AC23B
Brand: HAGER
SKU: ALB123HAGE
Price: 1609.55 PLN

local index:

ALB123HAGE

Catalog No:

LLK692

EAN code:

4049857169955

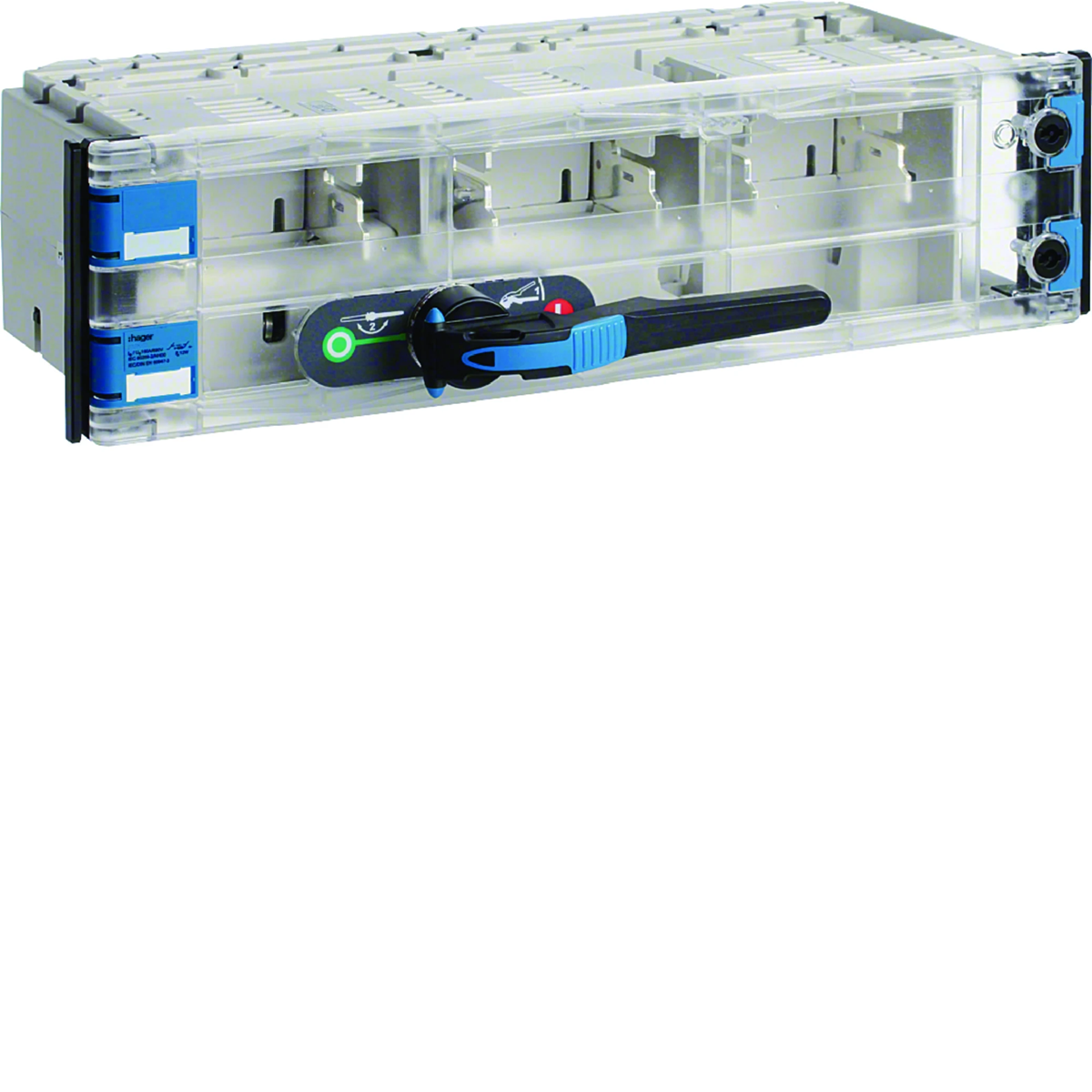

LLK-3 Horizontal 3-phase switch disconnector with fuses 600/5A SKL strip right 3-pole AC23B

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 60

Number of poles: 3

Tightening torque [Nm]: thirty

See full description

Price:

1609,55 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Switch disconnector with LL series fuses:

horizontal
group 3,
SKL trunking,
3-phase,
right outflow,
AC23B.

Technical data

Rated frequency [Hz]

60
Tightening torque [Nm]

thirty
Family

LL
Connection type

Vice
Height [mm]

149.5
Mechanical durability (number of cycles)

800
Fuse link rated current [A]

0/630
storage temperature [°C]

from -25 to 55
Wire cross-section (cord) [mm²]

95
PKWIU

27.12.23.0

Number of poles

3
Rated insulation voltage [V]

1000
power loss [W]

295
Fuse link size

NH3
Electrical endurance (number of cycles)

200
Rated switching voltage [V]

0/690
Conventional short-circuit current [kA]

80
Rated surge voltage [V]

8000
Conductor cross-section (wire) [mm²]

95

Other technical data

Version as main switch

No
Max. rated operation voltage Ue AC

690 V
Rated operation power at AC-23, 400 V

0.295 kW
Rated short-time withstand current lcw

100 kA
Number of poles

3
Type of electrical connection of main circuit

Cable clamp
Equipped with connectors

Yes
Suitable for front mounting

No
Type of control element

Long turning handle
Motor drive optional

No
Version as emergency stop installation

No

Version as safety switch

No
Rated permanent current Iu

630 A
Conditioned rated short-circuit current Iq

100 kA
Suitable for fuses

NH3
With error protection

No
Cable entry

Side
Suitable for floor mounting

No
Suitable for busbar mounting

Yes
Position control element

Front side
Motor drive integrated

Yes
Degree of protection (IP), front side

IP40

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	14 pcs.	1 pcs.	14 pcs.
Weight (kg)	15,912	222,768	15,912	222,768
Width (m)	0,410	-	0,410	-
Length (m)	0,175	-	0,175	-
Depth (m)	0,675	-	0,675	-

Files to download

LLK692.pdf
