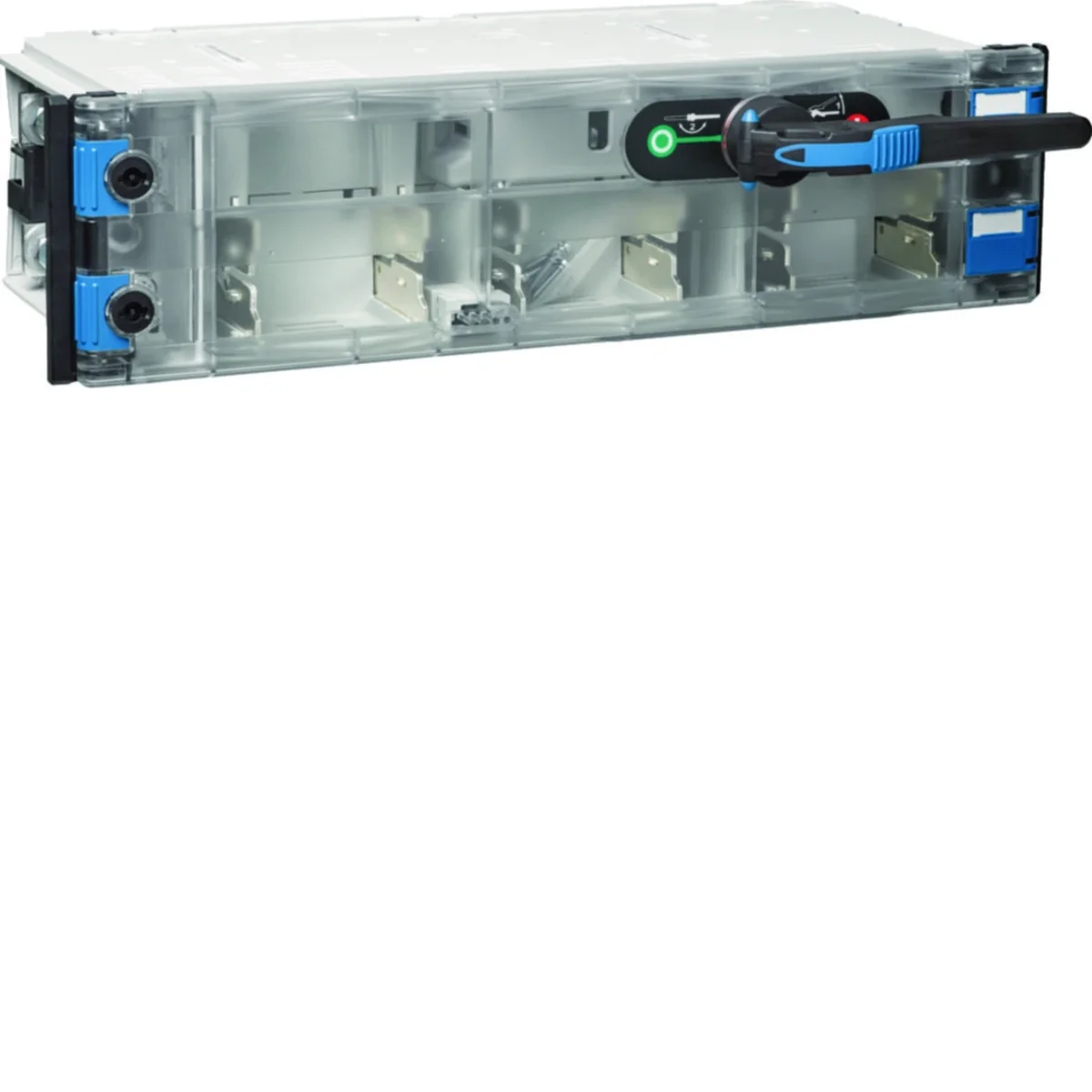

LLK-3 Fuse switch, horizontal right outlet 3-pole AC23B LLK721
local index:
ALB126HAGE
Catalog No:
LLK721
EAN code:
4049857170142
Price:
1489,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Switch disconnector with LL series fuses:
- horizontal
- group 3,
- right outflow,
- AC23B.
Technical data
-
Rated frequency [Hz]60
-
Tightening torque [Nm]thirty
-
FamilyLL
-
Connection typeVice
-
Height [mm]149.5
-
Mechanical durability (number of cycles)800
-
Fuse link rated current [A]0/630
-
storage temperature [°C]from -25 to 55
-
Wire cross-section (cord) [mm²]95
-
PKWIU27.12.23.0
-
Number of poles3
-
Rated insulation voltage [V]1000
-
power loss [W]295
-
Fuse link sizeNH3
-
Electrical endurance (number of cycles)200
-
Rated switching voltage [V]0/690
-
Conventional short-circuit current [kA]80
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]95
Other technical data
-
Version as main switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated operation power at AC-23, 400 V0.295 kW
-
Rated short-time withstand current lcw100 kA
-
Number of poles3
-
Type of electrical connection of main circuitCable clamp
-
Equipped with connectorsNo
-
Suitable for front mountingNo
-
Type of control elementLong turning handle
-
Motor drive optionalNo
-
Version as emergency stop installationNo
-
Version as safety switchNo
-
Rated permanent current Iu630 A
-
Conditioned rated short-circuit current Iq100 kA
-
Suitable for fusesNH3
-
With error protectionNo
-
Cable entrySide
-
Suitable for floor mountingNo
-
Suitable for busbar mountingYes
-
Position control elementFront side
-
Motor drive integratedYes
-
Degree of protection (IP), front sideIP40
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. |
| Weight (kg) | 13,851 | 0,014 | 25,174 |
| Width (m) | 0,280 | 0,410 | 0,800 |
| Length (m) | 0,149 | 0,175 | 0,690 |
| Depth (m) | 0,590 | 0,675 | 1,200 |
