LLD-1 Horizontal switch disconnector with fuses with ammeter 1-phase 250 A right 3-pole AC22B LLD075

Name: LLD-1 Horizontal switch disconnector with fuses with ammeter 1-phase 250 A right 3-pole AC22B
Brand: HAGER
SKU: ALB065HAGE
Price: 4207.93 PLN
Availability: BackOrder

local index:

ALB065HAGE

Catalog number:

LLD075

EAN code:

4049857140749

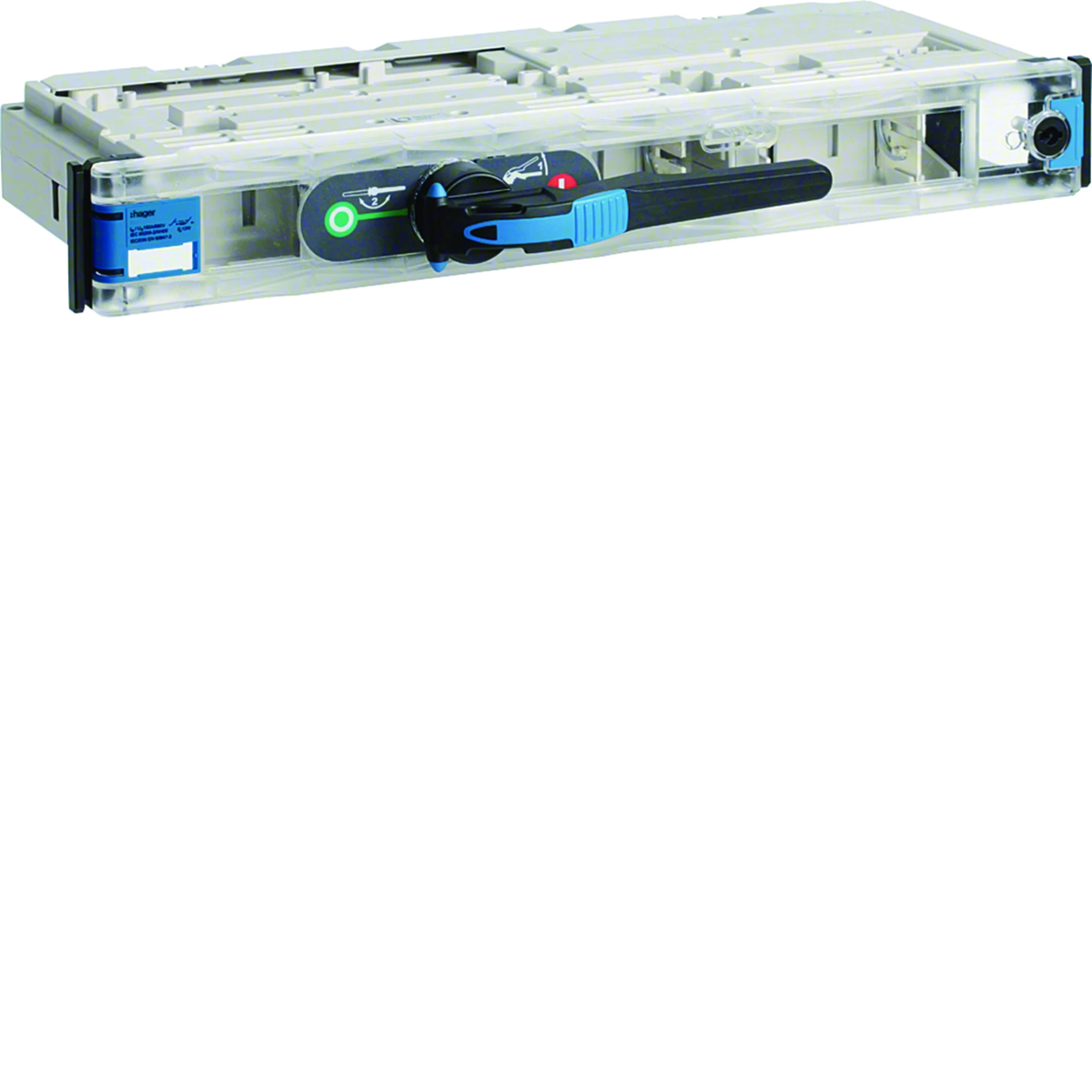

LLD-1 Horizontal switch disconnector with fuses with ammeter 1-phase 250 A right 3-pole AC22B

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 60

Number of poles: 3

Tightening torque [Nm]: 15

See full description

Price:

4 207,93 zł

gross / pcs.

(including VAT 23%)

up to 10 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Switch disconnector with LL series fuses:

horizontal
group 1,
with ammeter,
1-phase,
right drain,
AC22B.

Technical data

Rated frequency [Hz]

60
Tightening torque [Nm]

15
Family

LL
Connection type

Vice
Height [mm]

74.5
Mechanical durability (number of cycles)

1400
Fuse link rated current [A]

0/250
storage temperature [°C]

from -25 to 55
Wire cross-section (cord) [mm²]

95
PKWIU

27.12.23.0

Number of poles

3
Rated insulation voltage [V]

1000
power loss [W]

82
Fuse link size

NH1
Electrical endurance (number of cycles)

200
Rated switching voltage [V]

0/400
Conventional short-circuit current [kA]

55
Rated surge voltage [V]

8000
Conductor cross-section (wire) [mm²]

95

Other technical data

Version as main switch

No
Max. rated operation voltage Ue AC

400 V
Rated operation power at AC-23, 400 V

0.082 kW
Rated short-time withstand current lcw

55 kA
Number of poles

3
Type of electrical connection of main circuit

Cable clamp
Equipped with connectors

No
Suitable for front mounting

No
Type of control element

Long turning handle
Motor drive optional

No
Version as emergency stop installation

No

Version as safety switch

No
Rated permanent current Iu

250 A
Conditioned rated short-circuit current Iq

55 kA
Suitable for fuses

NH1
With error protection

No
Cable entry

Side
Suitable for floor mounting

No
Suitable for busbar mounting

Yes
Position control element

Front side
Motor drive integrated

Yes
Degree of protection (IP), front side

IP40

Manufacturer details

Manufacturer

Hager Electro S.A.S.
Address

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	26 pcs.	1 pcs.	26 pcs.
Weight (kg)	7,000	207,000	7,000	207,000
Width (m)	0,440	0,800	0,440	0,800
Length (m)	0,080	0,960	0,080	0,960
Depth (m)	0,670	1,200	0,670	1,200
