LLD-1 Fuse switch, horizontal right outlet 4-pole AC22B LLD433

Name: LLD-1 Fuse switch, horizontal right outlet 4-pole AC22B
Brand: HAGER
SKU: ALB073HAGE
Price: 6240.90 PLN
Availability: BackOrder

Index local:

ALB073HAGE

Numéro de catalogue:

LLD433

Code EAN:

4049857144327

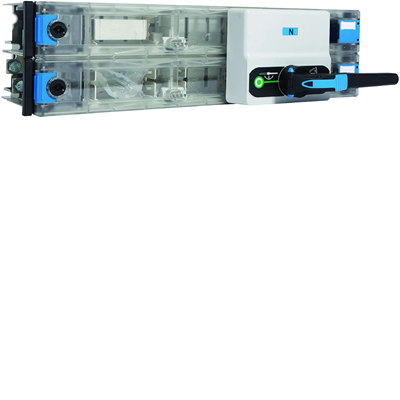

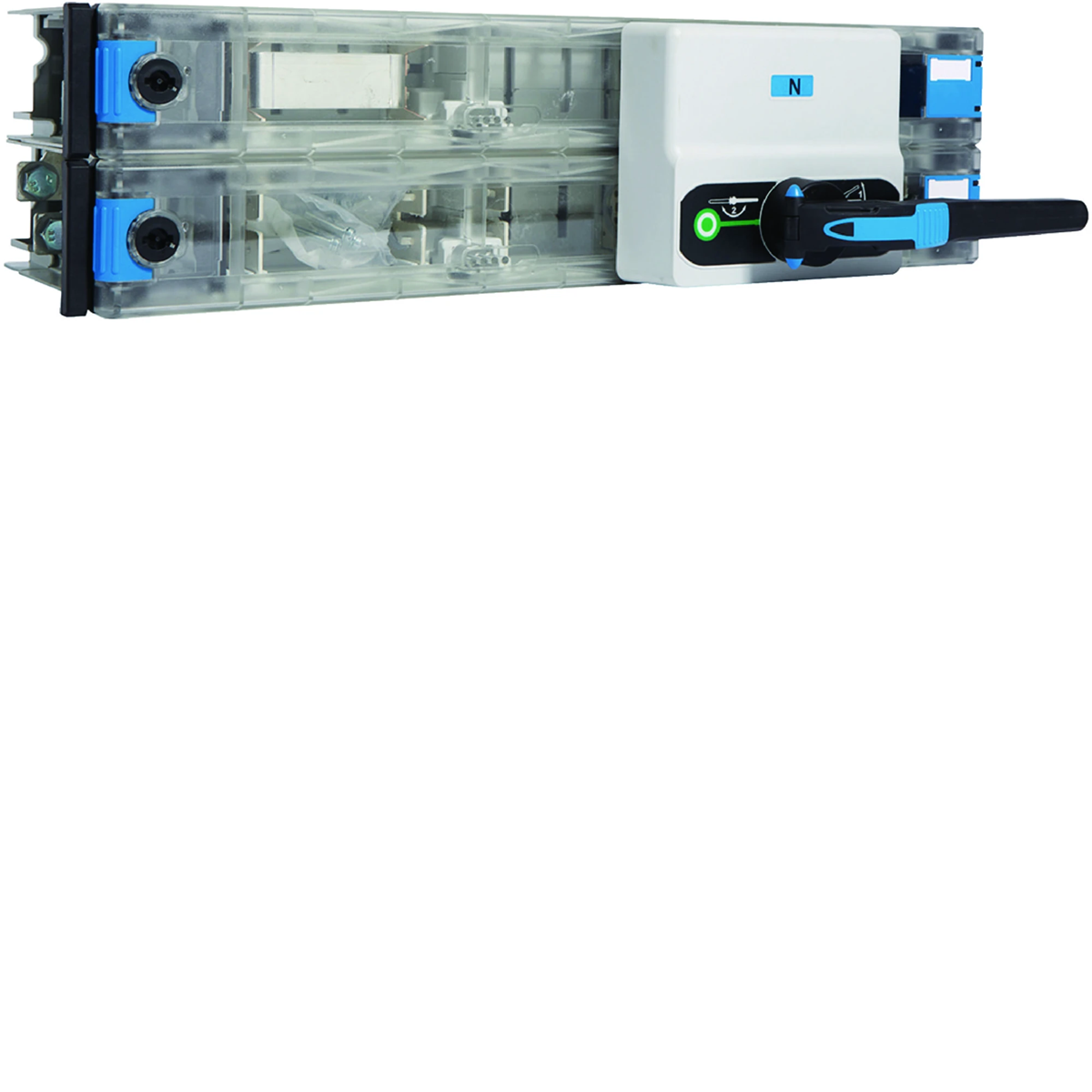

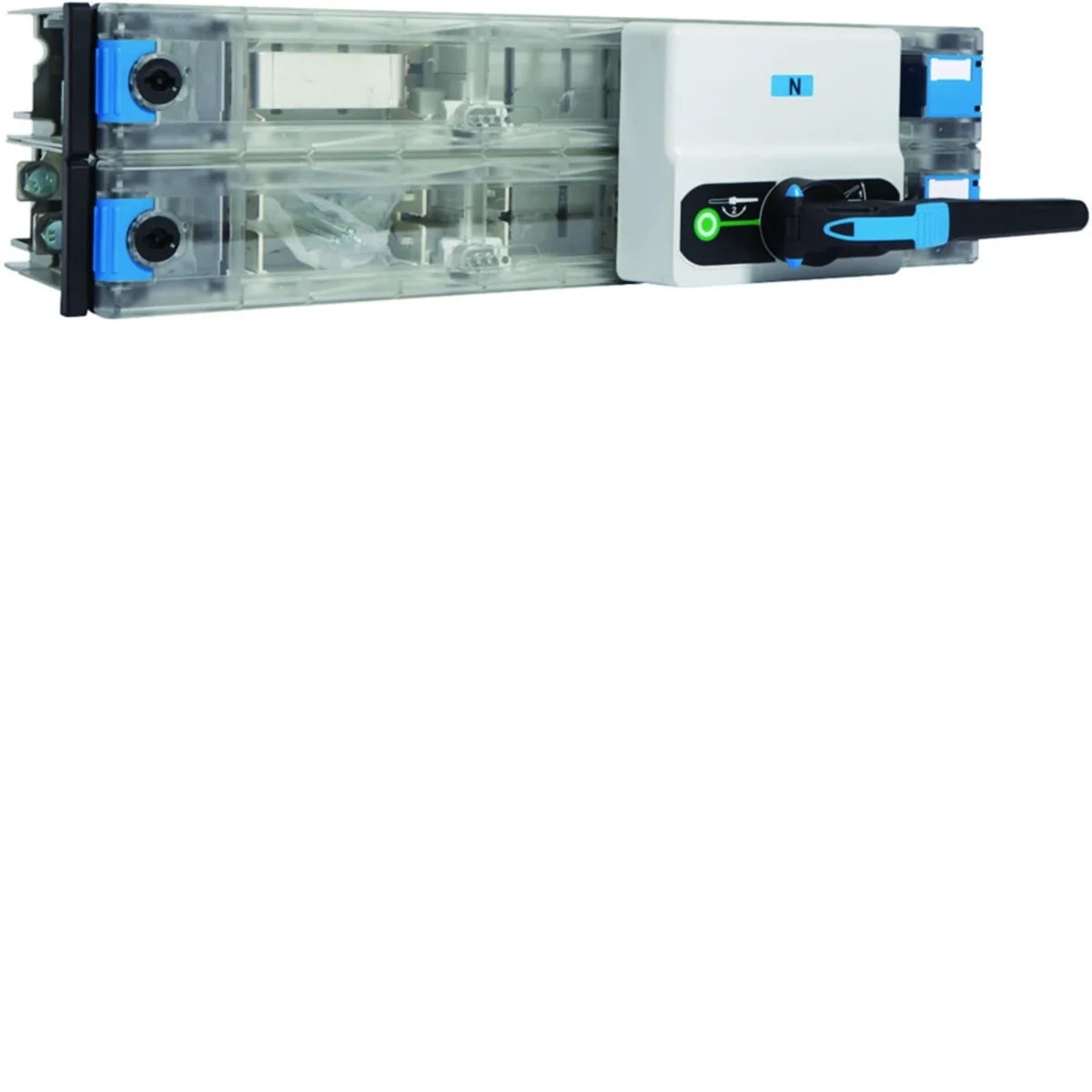

LLD-1 Fuse switch, horizontal right outlet 4-pole AC22B

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Rated frequency [Hz]: 60

Number of poles: 4

Tightening torque [Nm]: 15

Voir la description complète

Prix:

6 240,90 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 10 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Switch disconnector with LL series fuses:

horizontal
group 1,
right outflow,
AC22B.

Données techniques

Rated frequency [Hz]

60
Tightening torque [Nm]

15
Family

LL
Connection type

Vice
Height [mm]

149.5
Mechanical durability (number of cycles)

1400
Fuse link rated current [A]

0/250
storage temperature [°C]

from -25 to 55
Wire cross-section (cord) [mm²]

95
PKWIU

27.12.23.0

Number of poles

4
Rated insulation voltage [V]

1000
power loss [W]

109
Fuse link size

NH1
Electrical endurance (number of cycles)

200
Rated switching voltage [V]

500/690
Conventional short-circuit current [kA]

55
Rated surge voltage [V]

8000
Conductor cross-section (wire) [mm²]

95

Autres données techniques

Version as main switch

No
Max. rated operation voltage Ue AC

690 V
Rated operation power at AC-23, 400 V

0.109 kW
Rated short-time withstand current lcw

55 kA
Number of poles

4
Type of electrical connection of main circuit

Cable clamp
Equipped with connectors

No
Suitable for front mounting

No
Type of control element

Long turning handle
Motor drive optional

No
Version as emergency stop installation

No

Version as safety switch

No
Rated permanent current Iu

250 A
Conditioned rated short-circuit current Iq

55 kA
Suitable for fuses

NH1
With error protection

No
Cable entry

Side
Suitable for floor mounting

No
Suitable for busbar mounting

Yes
Position control element

Front side
Motor drive integrated

Yes
Degree of protection (IP), front side

IP40
