El12 and HAGER

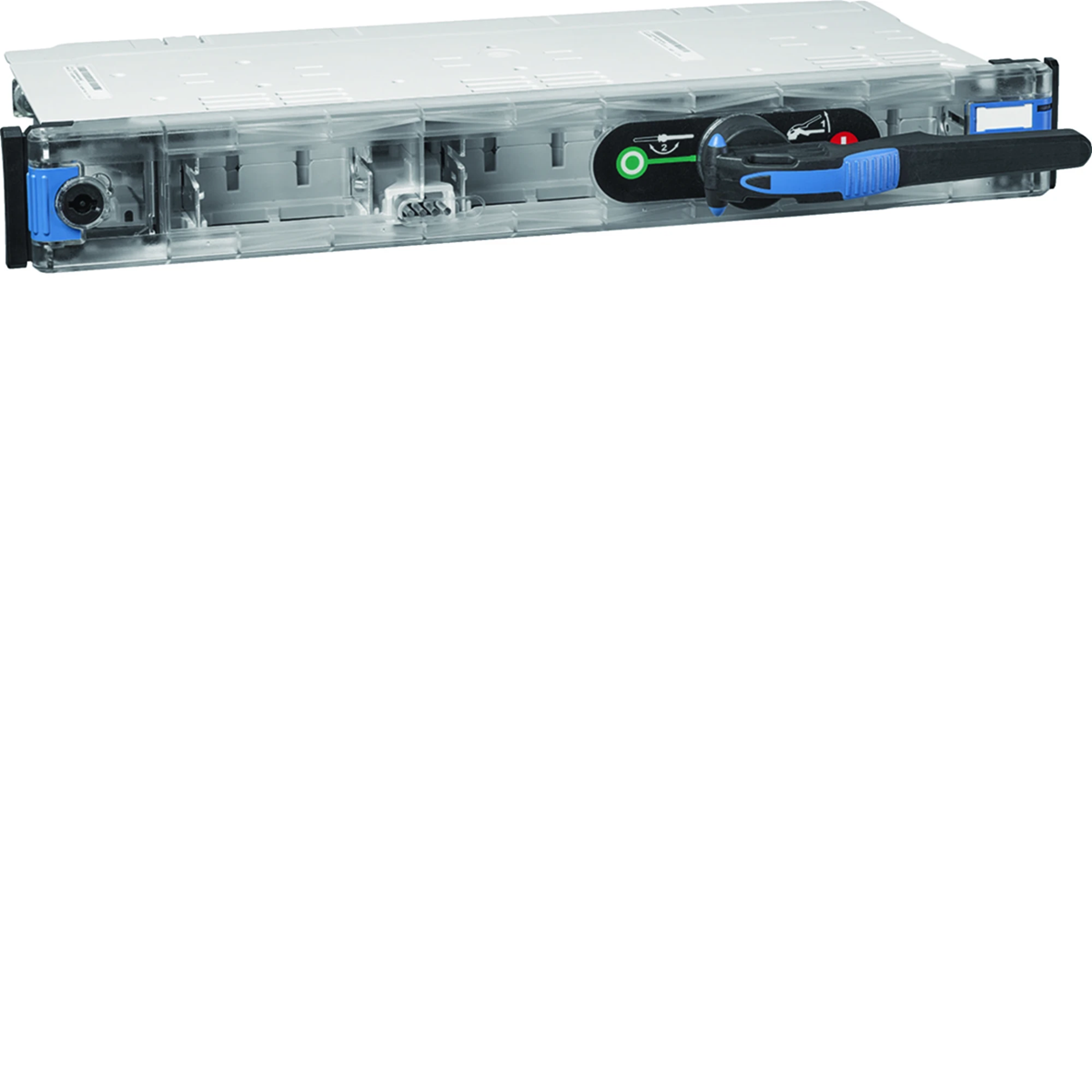

LLD-1 Fuse switch, horizontal right outlet 3-pole AC23B LLD721
local index:
ALB082HAGE
Catalog No:
LLD721
EAN code:
4049857147205
Click on the photo to enlarge
Manufacturer:
HAGER
Rated frequency [Hz]:
60
Number of poles:
3
Tightening torque [Nm]:
15
See full description
Price:
651,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Switch disconnector
with
LL
series fuses:
horizontal
group 1,
right outflow,
AC23B.
Technical data
Rated frequency [Hz]
60
Tightening torque [Nm]
15
Family
LL
Connection type
Vice
Height [mm]
74.5
Mechanical durability (number of cycles)
1400
Fuse link rated current [A]
0/250
storage temperature [°C]
from -25 to 55
Wire cross-section (cord) [mm²]
95
PKWIU
27.12.23.0
Number of poles
3
Rated insulation voltage [V]
1000
power loss [W]
82
Fuse link size
NH1
Electrical endurance (number of cycles)
200
Rated switching voltage [V]
0/690
Conventional short-circuit current [kA]
55
Rated surge voltage [V]
8000
Conductor cross-section (wire) [mm²]
95
Other technical data
Version as main switch
No
Max. rated operation voltage Ue AC
690 V
Rated operation power at AC-23, 400 V
0.082 kW
Rated short-time withstand current lcw
100 kA
Number of poles
3
Type of electrical connection of main circuit
Cable clamp
Equipped with connectors
No
Suitable for front mounting
No
Type of control element
Long turning handle
Motor drive optional
No
Version as emergency stop installation
No
Version as safety switch
No
Rated permanent current Iu
250 A
Conditioned rated short-circuit current Iq
100 kA
Suitable for fuses
NH1
With error protection
No
Cable entry
Side
Suitable for floor mounting
No
Suitable for busbar mounting
Yes
Position control element
Front side
Motor drive integrated
Yes
Degree of protection (IP), front side
IP40
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
12 pcs.
Weight (kg)
6,103
6,814
81,768
Width (m)
0,280
0,440
-
Length (m)
0,075
0,085
-
Depth (m)
0,590
0,655
-
