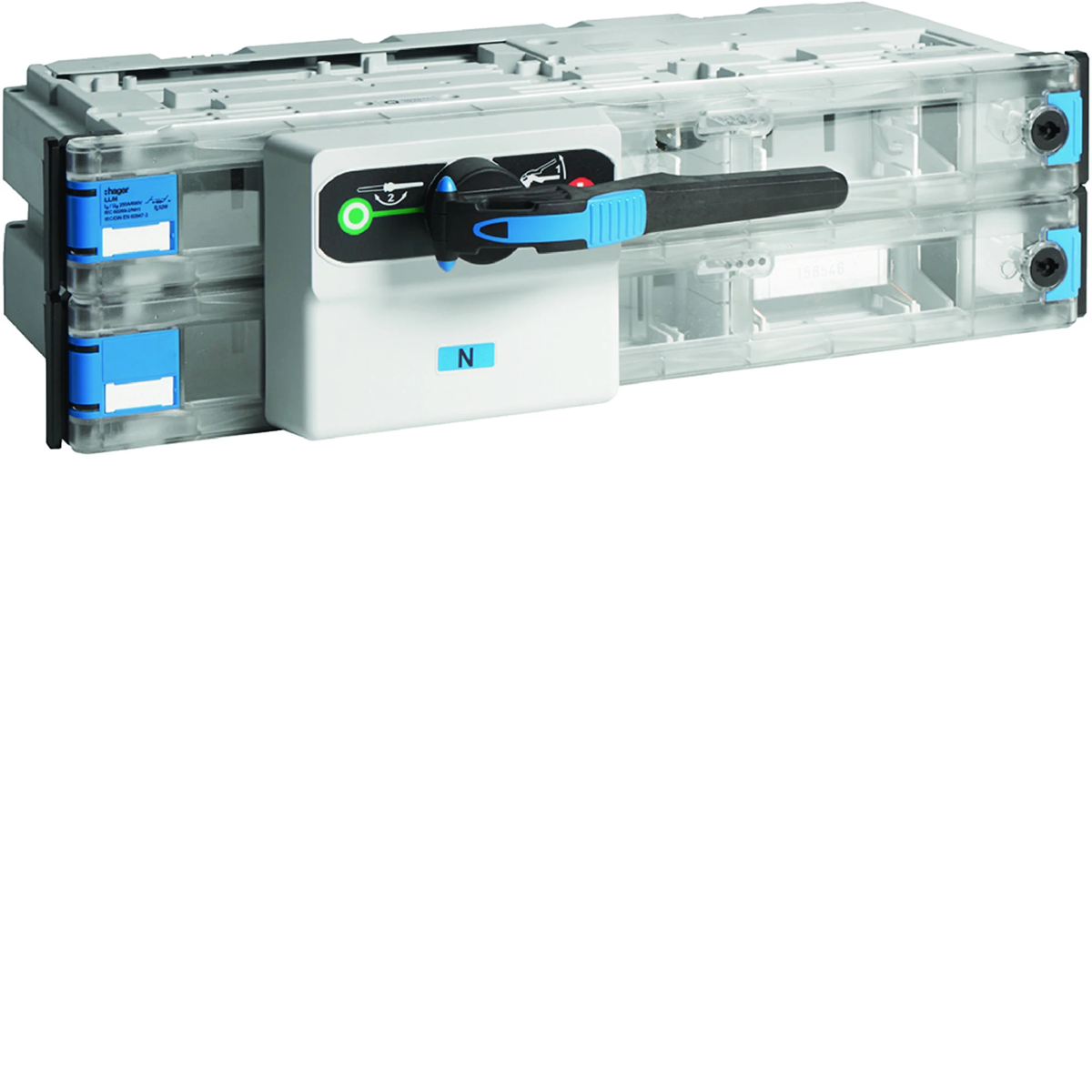

LLD-1 Fuse switch disconnector horizontal left outlet 4-pole AC23B LLD865
Lokaler Index:
ALB083HAGE
Katalognummer:
LLD865
EAN-Code:
4049857148646
Preis:
6 637,13 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Switch disconnector with LL series fuses:
- horizontal
- group 1,
- left outlet,
- AC23B.
Technische Daten
-
Rated frequency [Hz]60
-
Tightening torque [Nm]15
-
FamilyLL
-
Connection typeVice
-
Height [mm]149.5
-
Mechanical durability (number of cycles)1400
-
Fuse link rated current [A]0/250
-
storage temperature [°C]from -25 to 55
-
Wire cross-section (cord) [mm²]95
-
PKWIU27.12.23.0
-
Number of poles4
-
Rated insulation voltage [V]1000
-
power loss [W]109
-
Fuse link sizeNH1
-
Electrical endurance (number of cycles)200
-
Rated switching voltage [V]0/690
-
Conventional short-circuit current [kA]55
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]95
Weitere technische Daten
-
Version as main switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated operation power at AC-23, 400 V0.109 kW
-
Rated short-time withstand current lcw100 kA
-
Number of poles4
-
Type of electrical connection of main circuitCable clamp
-
Equipped with connectorsNo
-
Suitable for front mountingNo
-
Type of control elementLong turning handle
-
Motor drive optionalNo
-
Version as emergency stop installationNo
-
Version as safety switchNo
-
Rated permanent current Iu250 A
-
Conditioned rated short-circuit current Iq100 kA
-
Suitable for fusesNH1
-
With error protectionNo
-
Cable entrySide
-
Suitable for floor mountingNo
-
Suitable for busbar mountingYes
-
Position control elementFront side
-
Motor drive integratedYes
-
Degree of protection (IP), front sideIP40
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Paleta |
| Menge | 1 stk. | 14 stk. |
| Gewicht (kg) | 11,000 | 179,000 |
| Breite (m) | 0,440 | 0,800 |
| Länge (m) | 0,080 | 1,300 |
| Tiefe (m) | 0,650 | 1,200 |
