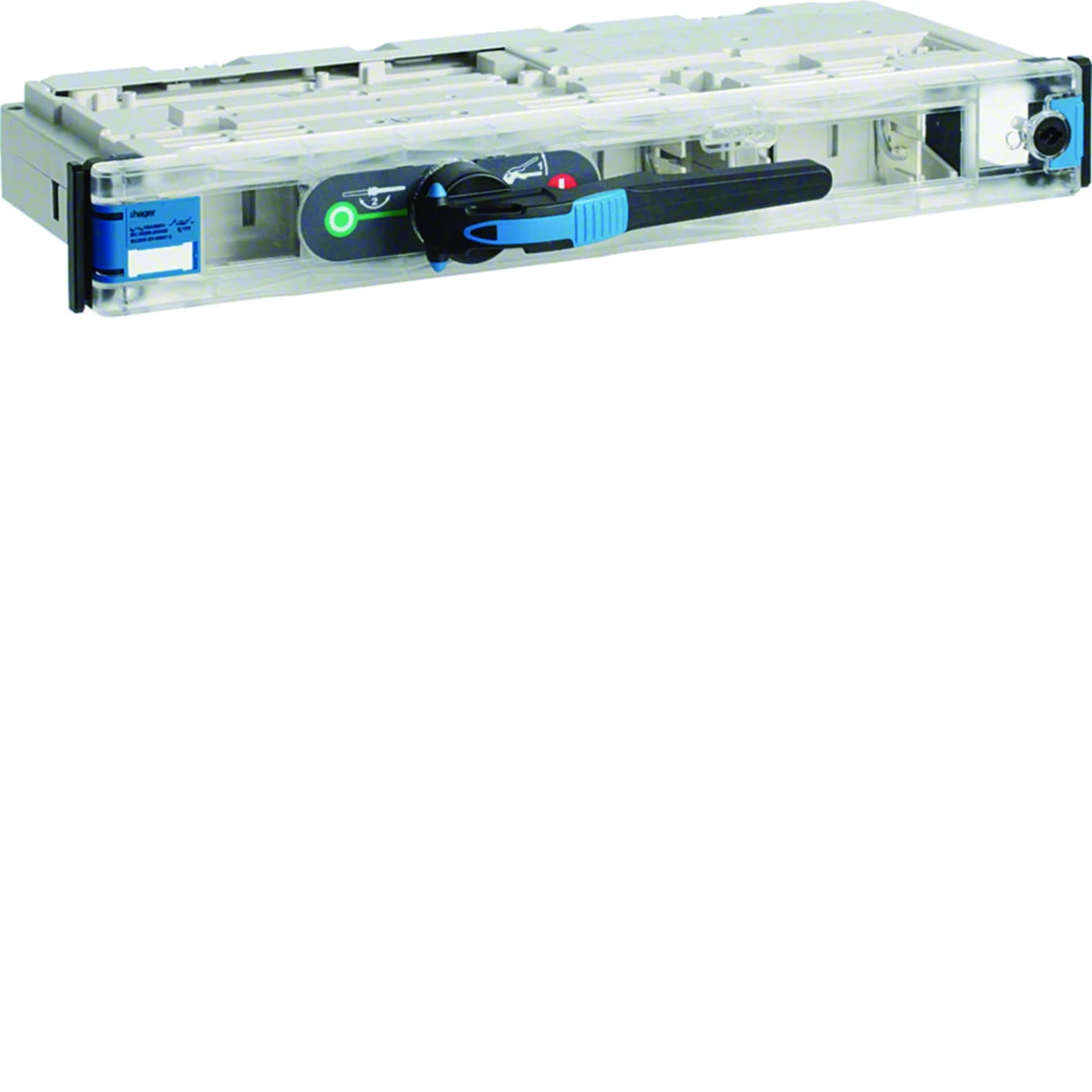

LLD-1 Fuse switch disconnector horizontal left outlet 3-pole AC22B LLD001
Lokaler Index:
ALB063HAGE
Katalognummer:
LLD001
EAN-Code:
4049857140008
Preis:
3393,40 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Switch disconnector with LL series fuses:
- horizontal
- group 1,
- left outlet,
- AC22B.
Technische Daten
-
Rated frequency [Hz]60
-
Tightening torque [Nm]15
-
FamilyLL
-
Connection typeVice
-
Height [mm]74.5
-
Mechanical durability (number of cycles)1400
-
Fuse link rated current [A]0/250
-
storage temperature [°C]from -25 to 55
-
Wire cross-section (cord) [mm²]95
-
PKWIU27.12.23.0
-
Number of poles3
-
Rated insulation voltage [V]1000
-
power loss [W]82
-
Fuse link sizeNH1
-
Electrical endurance (number of cycles)200
-
Rated switching voltage [V]0/400
-
Conventional short-circuit current [kA]55
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]95
Weitere technische Daten
-
Version as main switchNo
-
Max. rated operation voltage Ue AC400 V
-
Rated operation power at AC-23, 400 V0.082 kW
-
Rated short-time withstand current lcw55 kA
-
Number of poles3
-
Type of electrical connection of main circuitCable clamp
-
Equipped with connectorsNo
-
Suitable for front mountingNo
-
Type of control elementLong turning handle
-
Motor drive optionalNo
-
Version as emergency stop installationNo
-
Version as safety switchNo
-
Rated permanent current Iu250 A
-
Conditioned rated short-circuit current Iq55 kA
-
Suitable for fusesNH1
-
With error protectionNo
-
Cable entrySide
-
Suitable for floor mountingNo
-
Suitable for busbar mountingYes
-
Position control elementFront side
-
Motor drive integratedYes
-
Degree of protection (IP), front sideIP40
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Paleta |
| Menge | 1 stk. | 26 stk. |
| Gewicht (kg) | 6,100 | 158,670 |
| Breite (m) | 0,410 | 0,800 |
| Länge (m) | 0,170 | 0,690 |
| Tiefe (m) | 0,670 | 1,200 |
