LLA-00 Horizontal 3-phase switch disconnector with fuses 150/5A SKL strip right 3-pole AC23B LLA692

local index:
ALB057HAGE
Catalog No:
LLA692
EAN code:
4049857181483
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 3
Tightening torque [Nm]: 10
Price:
608,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

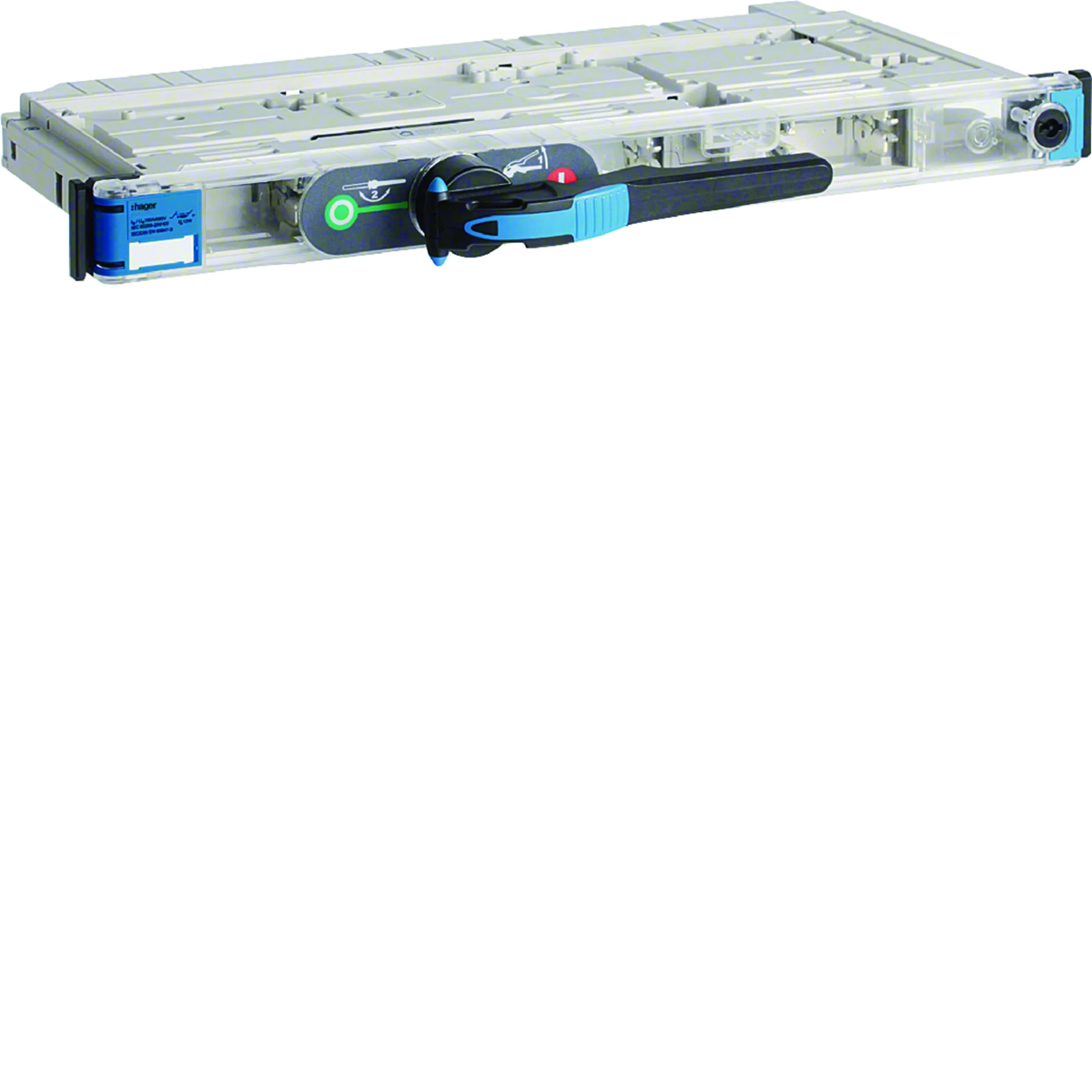

Switch disconnector with LL fuses:

  • horizontal
  • SKL rail,
  • group 00,
  • 3-phase,
  • right drain,
  • AC23B.

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    10
  • Family
    LL
  • Connection type
    Vice
  • Height [mm]
    50
  • Mechanical durability (number of cycles)
    1400
  • Fuse link rated current [A]
    0/160
  • storage temperature [°C]
    from -25 to 55
  • Wire cross-section (cord) [mm²]
    95
  • PKWIU
    27.12.23.0
  • Number of poles
    3
  • Rated insulation voltage [V]
    1000
  • power loss [W]
    47
  • Fuse link size
    NH00
  • Electrical endurance (number of cycles)
    200
  • Rated switching voltage [V]
    0/690
  • Conventional short-circuit current [kA]
    80
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    95

Other technical data

  • Version as main switch
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Rated operation power at AC-23, 400 V
    0.047 kW
  • Rated short-time withstand current lcw
    55 kA
  • Number of poles
    3
  • Type of electrical connection of main circuit
    Cable clamp
  • Equipped with connectors
    Yes
  • Suitable for front mounting
    No
  • Type of control element
    Long turning handle
  • Motor drive optional
    No
  • Version as emergency stop installation
    No
  • Version as safety switch
    No
  • Rated permanent current Iu
    160 A
  • Conditioned rated short-circuit current Iq
    55 kA
  • Suitable for fuses
    NH00
  • With error protection
    No
  • Cable entry
    Side
  • Suitable for floor mounting
    No
  • Suitable for busbar mounting
    Yes
  • Position control element
    Front side
  • Motor drive integrated
    Yes
  • Degree of protection (IP), front side
    IP40

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 40 pcs.
Weight (kg) 5,011 0,006 25,224
Width (m) 0,280 0,375 0,800
Length (m) 0,049 0,060 0,690
Depth (m) 0,590 0,625 1,200
