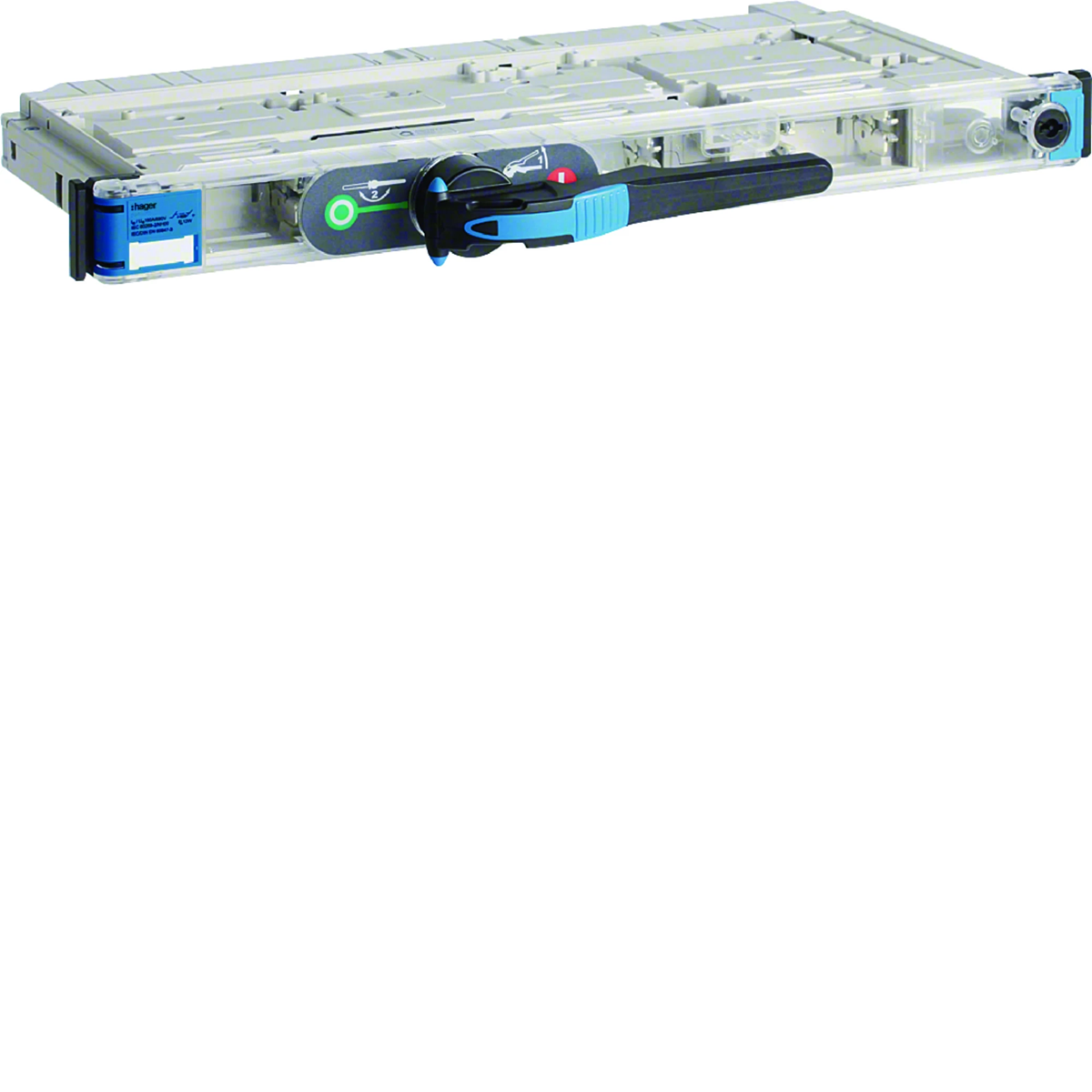

LLA-00 Horizontal 3-phase switch disconnector with fuses 150/5A SKL strip right 3-pole AC22B

Click on the photo to enlarge

LLA-00 Horizontal 3-phase switch disconnector with fuses 150/5A SKL strip right 3-pole AC22B LLA116

Name: LLA-00 Horizontal 3-phase switch disconnector with fuses 150/5A SKL strip right 3-pole AC22B
Brand: HAGER
SKU: ALB182HAGE
Price: 615.91 PLN

local index:

ALB182HAGE

Catalog No:

LLA116

EAN code:

4049857175727

Price:

615,91 €

gross / pcs.

including VAT 23%

Availability:

up to 10 weeks (business days)

Delivery:

From 3,70 € (prepaid courier) Details

Quantity:

Goods at a promotional price can only be purchased in the quantity available in stock

pcs.

Delivery methods:

details

Payment methods:

details

Go to section:

Product description Technical data

Product description

Switch disconnector with LL fuses:

horizontal
SKL rail,
3-phase,
group 00,
right drain,
AC22B.

Report an error

Technical data

Rated frequency [Hz]

60
Tightening torque [Nm]

10
Family

LL
Connection type

Vice
Height [mm]

50
Mechanical durability (number of cycles)

1400
Fuse link rated current [A]

0/160
storage temperature [°C]

from -25 to 55
Wire cross-section (cord) [mm²]

95

Number of poles

3
Rated insulation voltage [V]

1000
power loss [W]

47
Fuse link size

NH00
Electrical endurance (number of cycles)

200
Rated switching voltage [V]

0/400
Conventional short-circuit current [kA]

55
Rated surge voltage [V]

8000
Conductor cross-section (wire) [mm²]

95

Other technical data

Version as main switch

no
Max. rated operation voltage Ue AC

400 V
Rated operation power at AC-23, 400 V

0.047 kW
Rated short-time withstand current lcw

55 kA
Number of poles

3
Type of electrical connection of main circuit

Cable clamp
Equipped with connectors

yes
Suitable for front mounting

no
Type of control element

Long turning handle
Motor drive optional

no
Version as emergency stop installation

no

Version as safety switch

no
Rated permanent current Iu

160 A
Conditioned rated short-circuit current Iq

55 kA
Suitable for fuses

NH00
With error protection

no
Cable entry

Side
Suitable for floor mounting

no
Suitable for busbar mounting

yes
Position control element

Front side
Motor drive integrated

yes
Degree of protection (IP), front side

IP40
