LLA-00 Horizontal 3-phase switch disconnector with fuses 150/5A SKL strip right 3-pole AC22B LLA081

Name: LLA-00 Horizontal 3-phase switch disconnector with fuses 150/5A SKL strip right 3-pole AC22B
Brand: HAGER
SKU: ALB181HAGE
Price: 465.75 PLN

local index:

ALB181HAGE

Catalog No:

LLA081

EAN code:

4049857175376

LLA-00 Horizontal 3-phase switch disconnector with fuses 150/5A SKL strip right 3-pole AC22B

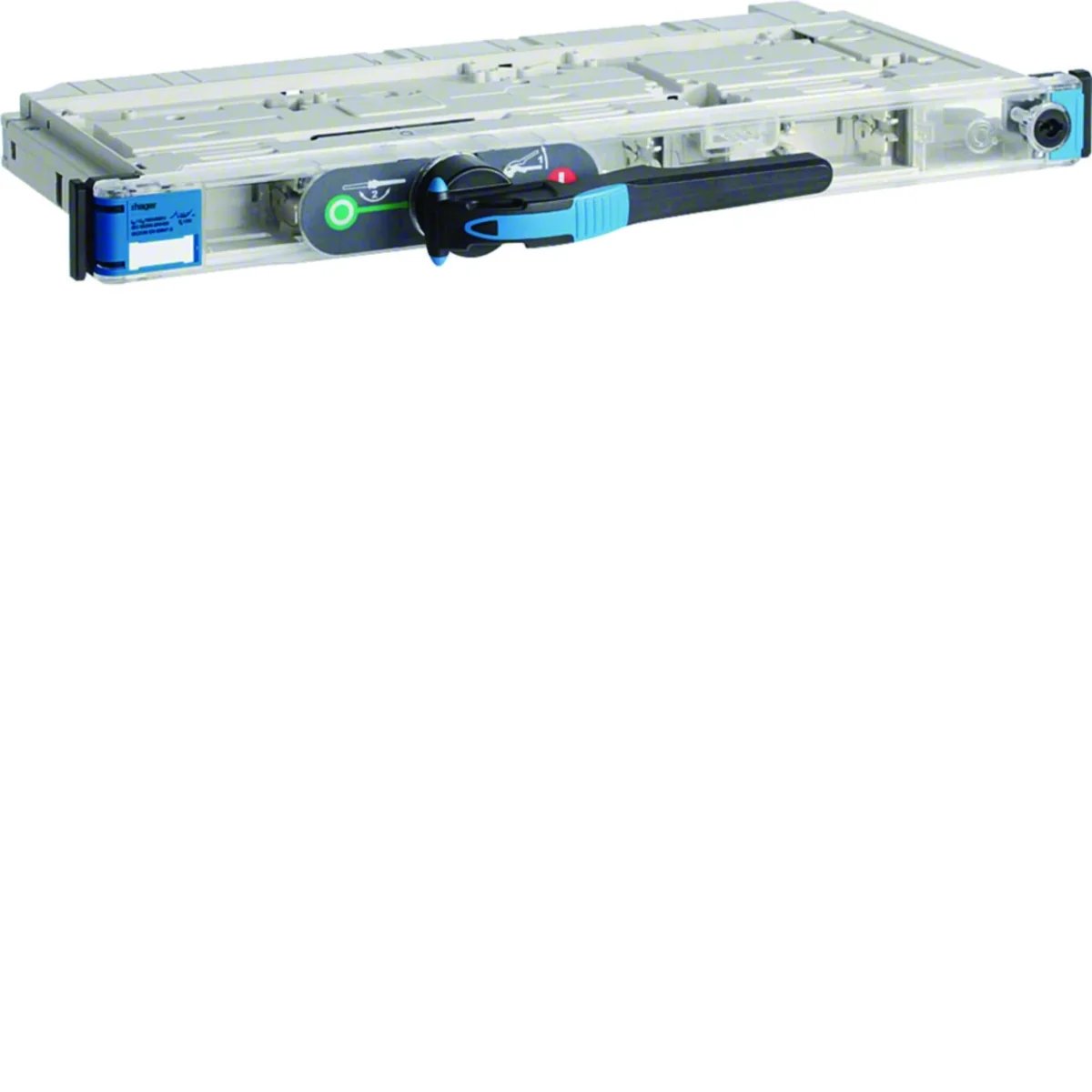

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 60

Number of poles: 3

Tightening torque [Nm]: 10

See full description

Price:

465,75 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Bulk packaging

Product description

Switch disconnector with LL fuses:

horizontal
SKL rail,
3-phase,
group 00,
right drain,
AC22B.

Technical data

Rated frequency [Hz]

60
Tightening torque [Nm]

10
Family

LL
Connection type

Vice
Height [mm]

50
Mechanical durability (number of cycles)

1400
Fuse link rated current [A]

0/160
storage temperature [°C]

from -25 to 55
Wire cross-section (cord) [mm²]

95
PKWIU

27.12.23.0

Number of poles

3
Rated insulation voltage [V]

1000
power loss [W]

47
Fuse link size

NH00
Electrical endurance (number of cycles)

200
Rated switching voltage [V]

0/400
Conventional short-circuit current [kA]

55
Rated surge voltage [V]

8000
Conductor cross-section (wire) [mm²]

95

Other technical data

Version as main switch

No
Max. rated operation voltage Ue AC

400 V
Rated operation power at AC-23, 400 V

0.047 kW
Rated short-time withstand current lcw

55 kA
Number of poles

3
Type of electrical connection of main circuit

Cable clamp
Equipped with connectors

Yes
Suitable for front mounting

No
Type of control element

Long turning handle
Motor drive optional

No
Version as emergency stop installation

No

Version as safety switch

No
Rated permanent current Iu

160 A
Conditioned rated short-circuit current Iq

55 kA
Suitable for fuses

NH00
With error protection

No
Cable entry

Side
Suitable for floor mounting

No
Suitable for busbar mounting

Yes
Position control element

Front side
Motor drive integrated

Yes
Degree of protection (IP), front side

IP40

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	40 pcs.
Weight (kg)	4,695	5,040	226,600
Width (m)	0,280	0,405	0,800
Length (m)	0,049	0,065	0,690
Depth (m)	0,590	0,670	1,200
