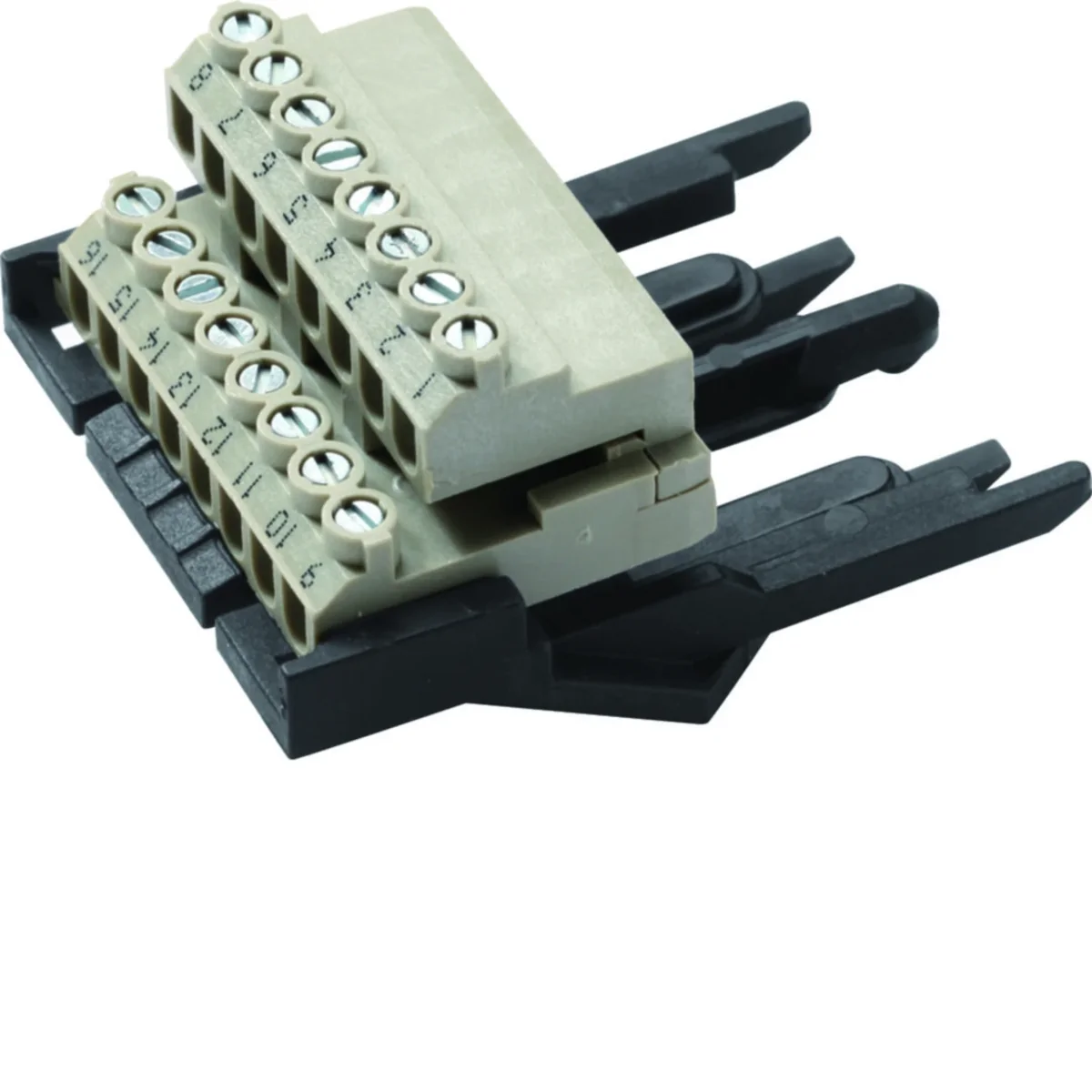

LL Connector strip for control and signaling cables, 16-pin LLZ027

local index:
ALA342HAGE
Catalog No:
LLZ027
EAN code:
4049857186341
Manufacturer: HAGER
Family: LL
Height [mm]: 50
Operating temperature range [°C]: from -25 to 55
Price:
32,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Plug-in terminal, for control and signal cables, 16-pin, LL series.

Technical data

  • Family
    LL
  • Operating temperature range [°C]
    from -25 to 55
  • Height [mm]
    50
  • PKWIU
    27.12.40.0

Other technical data

  • Contact type
    Bus
  • Number of plug-in contact rows
    2
  • Connectable conductor cross section fine-strand without cable end sleeve
    0 ... 2.5 mm²
  • Type of electric connection
    Insulation displacement connection
  • Housing colour
    Grey
  • Degree of protection (IP), mounted
    IP00
  • Number of poles
    16
  • Rated current In
    630 A
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 1.5 mm²
  • Housing material
    Plastic
  • Operating temperature
    -25 ... 55 °C

Manufacturer details

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 1000 pcs.
Weight (kg) 0,049 0,060 85,000
Width (m) 0,025 0,042 0,800
Length (m) 0,035 0,022 1,620
Depth (m) 0,070 0,048 1,200
