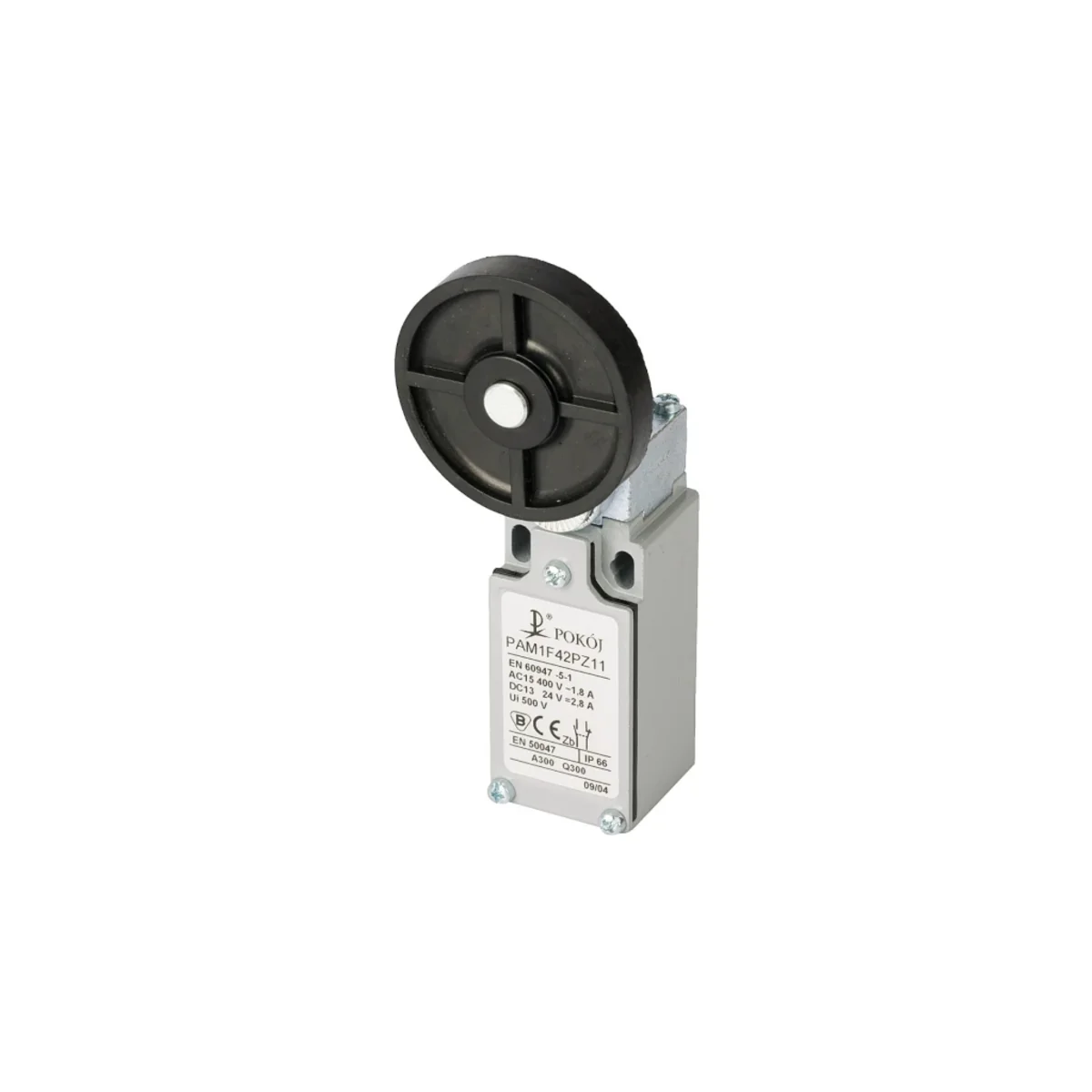

Limit switch 1R 1Z snap action metal lever with rubber roller Ø50 PAM1F42PZ11 A37-4680 A37-4680
Lokaler Index:
ALC081POKO
Katalognummer:
A37-4680
EAN-Code:
5902626143312
Hersteller:
POKÓJ
Preis:
151,97 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Technische Daten
-
PKWIU27.33.11
Weitere technische Daten
-
Width sensor30.3 mm
-
Height of sensor30 mm
-
Rated operation current Ie at AC-15, 24 V10 A
-
Rated operation current Ie at AC-15, 230 V3 A
-
Rated operation current Ie at DC-13, 125 V0.55 A
-
Switching functionQuick-break switch
-
Forced openingYes
-
Number of contacts as normally closed contact1
-
Number of contacts as change-over contact0
-
Type of interface for safety communicationNone
-
Construction type housingCuboid
-
Coating housingPowder coating
-
Alignment of the control elementOther
-
With status indicationNo
-
Explosion safety category for gasNone
-
Ambient temperature during operating-25 ... 70 °C
-
Diameter sensor50 mm
-
Length of sensor124 mm
-
Rated operation current Ie at AC-15, 125 V6 A
-
Rated operation current Ie at DC-13, 24 V2.8 A
-
Rated operation current Ie at DC-13, 230 V0.27 A
-
Output electronicNo
-
Number of safety auxiliary contacts0
-
Number of contacts as normally open contact1
-
Type of interfaceNone
-
Obudowa zgodnie z normąDIN EN 50047
-
Housing materialMetal
-
Type of control elementRoller lever
-
Type of electric connectionCable entry PG
-
Suitable for safety functionsNo
-
Explosion safety category for dustNone
-
Degree of protection (IP)IP66
Hersteller-Details
-
HerstellerPOKÓJ S.E.
-
Adresse91-202 Łódź Warecka 1 Polska
-
