KVL-00 3p M8-M8 box disconnector 001690870

local index:
ALI037ETIP
Catalog No:
001690870
Manufacturer: ETI POLAM
Number of poles: 3
DC rated voltage [V]: 440
Rated current [A]: 160
Price:
35,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

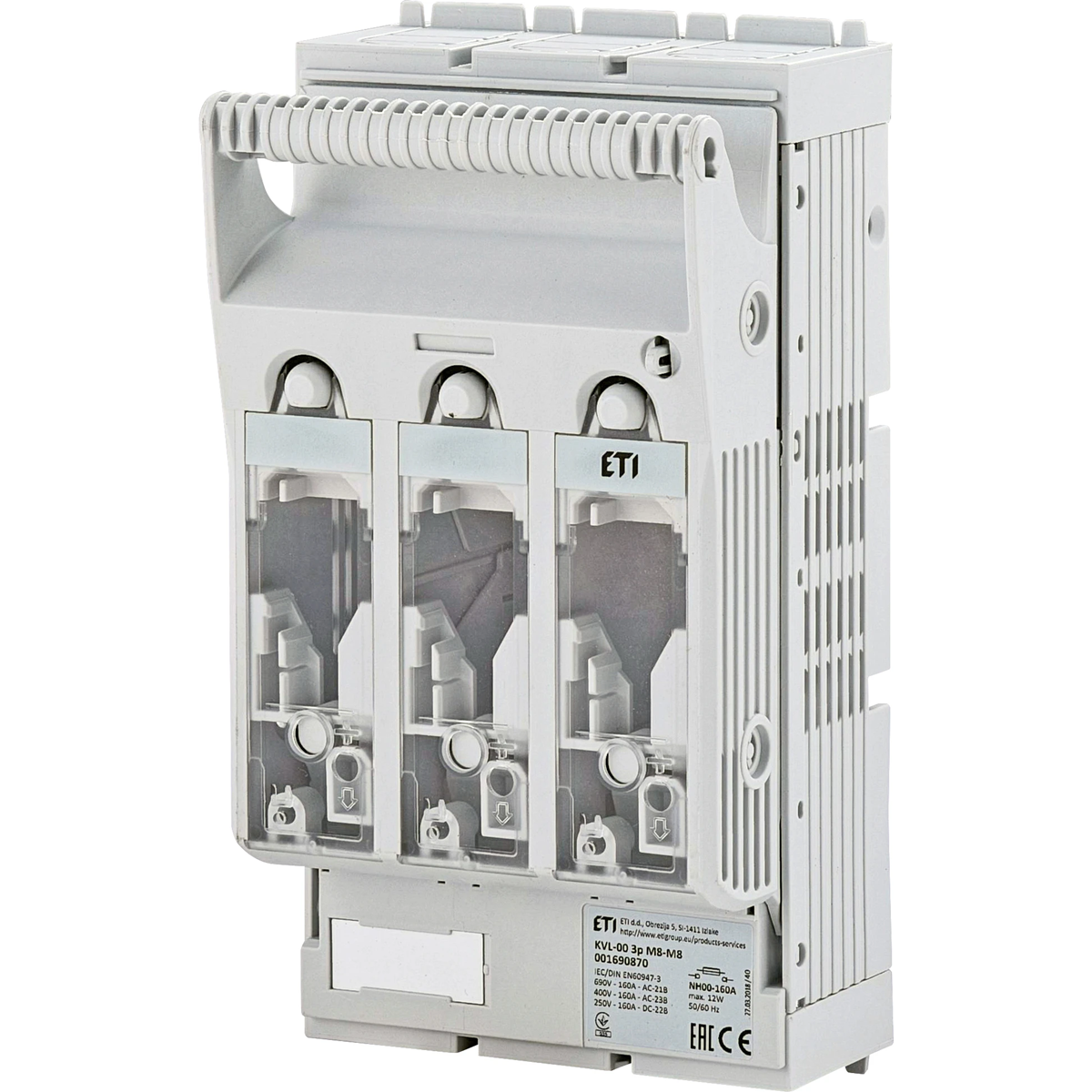

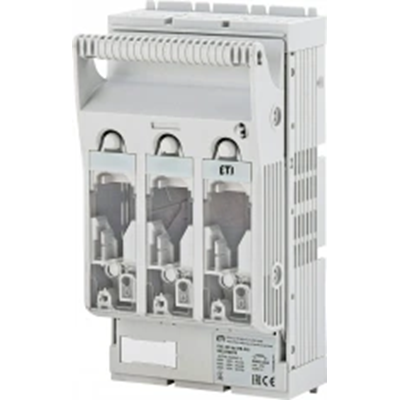

KVL-00 3p M8-M8 box switch disconnector

Technical data

  • Number of poles
    3
  • Rated current [A]
    160
  • PKWIU
    27.12.22.0
  • DC rated voltage [V]
    440
  • AC rated voltage [V]
    690

Other technical data

  • Version as main switch
    Yes
  • Max. rated operation voltage Ue AC
    690 V
  • Suitable for fuses
    NH00
  • Type of electrical connection of main circuit
    Screw connection
  • Type of control element
    Cover grip
  • Version as safety switch
    Yes
  • Rated permanent current Iu
    160 A
  • With error protection
    No
  • Suitable for floor mounting
    Yes
  • Degree of protection (IP), front side
    IP20
