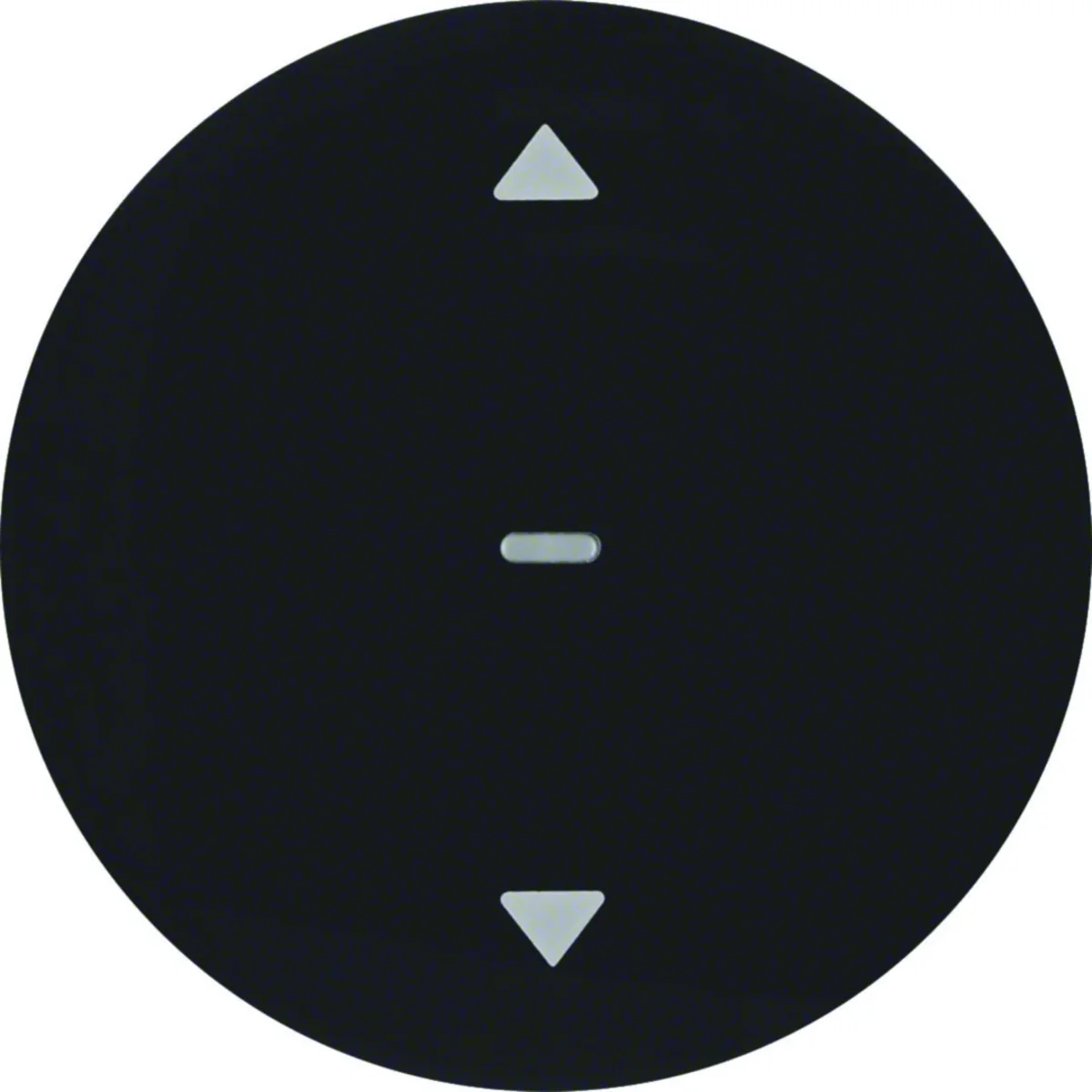

KNX RF QUICKLINK R.1/R.3/R.CLASSIC/SERIE 1930 Blind push button for blind controllers and actuators black 85245231

local index:
AIK045BERK
Catalog No:
85245231
EAN code:
4011334481676
Manufacturer: BERKER
Switching time [s]: < 0.6s
Material: Thermoplastic
Surface: Gloss
Price:
218,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Blind button for blind controllers and Berker.Net switching mechanisms, KNX RF quicklink series. Main design line: Berker R.1/R.3/Serie 1930/R.classic.

Features:

  • "party" function , automatic commands, radio commands and extension commands are not executed (block)
  • possibility of configuring transmitter and/or receiver functions
  • memory function enabling automatic execution of stored lifting and lowering times with position
  • reset function (to factory settings) ;
  • ability to save the position of the slats for a given scene
  • recalling scenes using KNX radio devices
  • quicklink functions : blinds, 2 scenes, memory, forced control, up/down button switch

Controls and indicators:

  • activation "party" function by pressing the scroll button up and down > 20 s
  • with configuration and function button

Detection

  • sun protection and twilight function combined with a radio illuminance sensor

LED control:

  • with red/amber status LED for memory and party functions
  • with configuration and function LED
  • with status LED for door lock protection
  • < li> cap and mechanism compatibility LED indicator

Connection:

  • integration with KNX-TP system via KNX radio network/gateway TP

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Technical data

  • Switching time [s]
    < 0.6s
  • Surface
    Gloss
  • Operating temperature range [°C]
    from -5 to 45
  • Number of radio channels
    1
  • Minimum slat adjustment time [ms]
    150
  • Radio protocol
    KNX
  • Range of the radio transmitter (in the building) [m]
    thirty
  • PKWIU
    26.51.20.0
  • Material
    Thermoplastic
  • Family
    KNX RF QUICKLINK
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Radio transmitter power [mA]
    <10
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    Black
  • Transparent
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,054 0,077 3,137 123,384
Width (m) 0,058 0,085 0,300 0,800
Length (m) 0,028 0,072 0,225 1,050
Depth (m) 0,058 0,085 0,400 1,200
