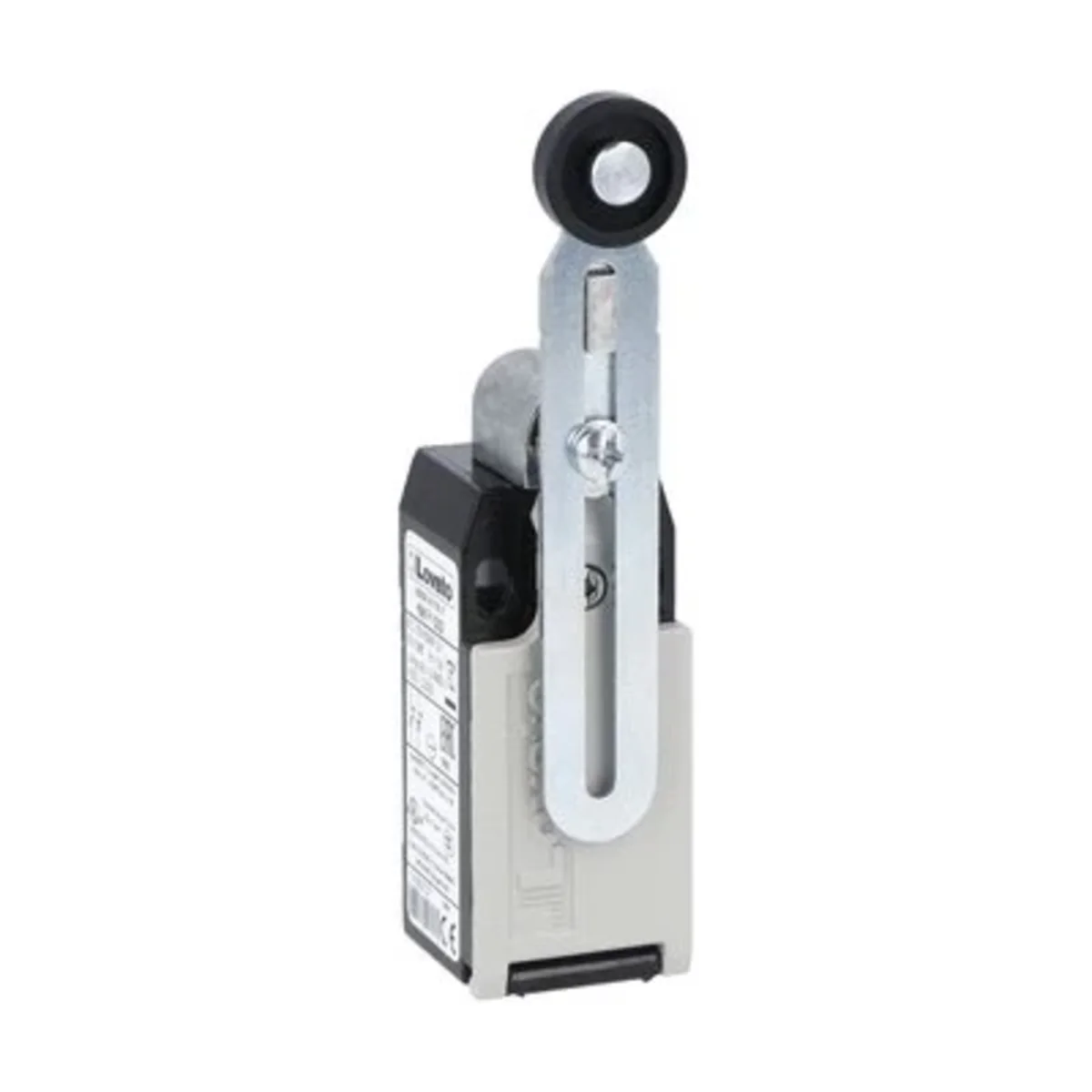

KMF1D02 K series limit switch, 2NC independent contacts. Plastic roller. KMF1D02

Name: KMF1D02 K series limit switch, 2NC independent contacts. Plastic roller.
Brand: LOVATO
SKU: ALC019LOVA
Price: 203.07 PLN
Availability: BackOrder

local index:

ALC019LOVA

Catalog number:

KMF1D02

EAN code:

8013975154922

KMF1D02 K series limit switch, 2NC independent contacts. Plastic roller.

Click on the photo to enlarge

Manufacturer: LOVATO

Price:

203,07 zł

gross / pcs.

(including VAT 23%)

up to 2 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

PKWIU

27.33.11.0

Other technical data

Width sensor

30 mm
Length of sensor

30 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

2.5 A
Rated operation current Ie at DC-13, 230 V

0.27 A
Switching function latching

Yes
Forced opening

Yes
Number of contacts as normally closed contact

2
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Metal
Type of control element

Adjustable roller lever
Type of electric connection

Cable entry metrical
Suitable for safety functions

No
Explosion safety category for dust

None
Degree of protection (IP)

IP65

Height of sensor

165 mm
Rated operation current Ie at AC-15, 24 V

10 A
Rated operation current Ie at AC-15, 230 V

3 A
Rated operation current Ie at DC-13, 125 V

0.55 A
Switching function

Slow-action switch with overlapping
Output electronic

No
Number of safety auxiliary contacts

0
Number of contacts as normally open contact

0
Type of interface

None
Construction type housing

Cuboid
Coating housing

Powder coating
Alignment of the control element

Other
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C

Manufacturer details

Manufacturer

LOVATO ELECTRIC S.P.A.
Address

24020 GORLE (Bergamo) Via Don E. Mazza 12 Włochy
E-mail

info@lovatoelectric.pl

Bulk packaging

A kind of package	Sztuka
Quantity	1 pcs.
Weight (kg)	0,200
Width (m)	0,044
Length (m)	0,133
Depth (m)	0,032
