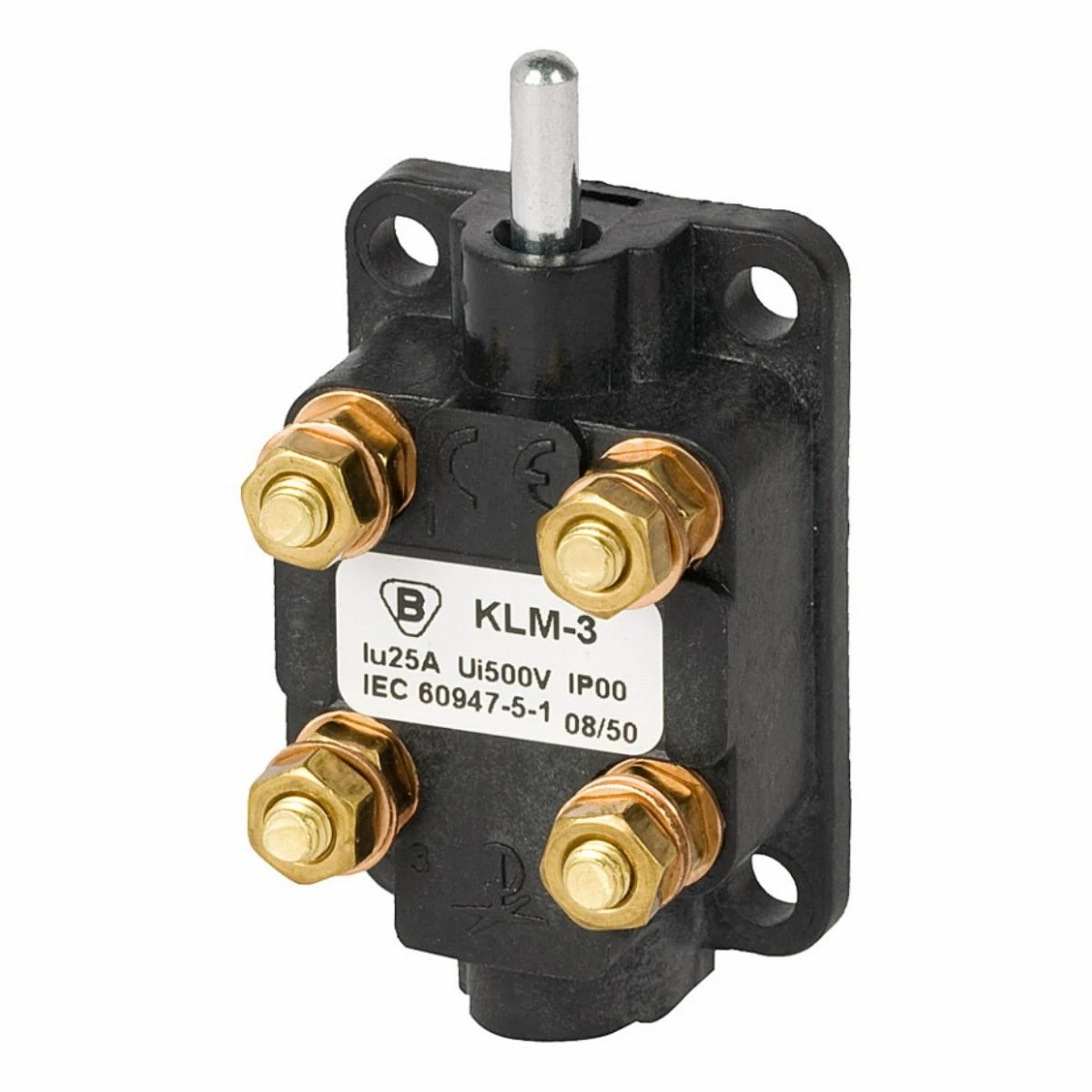

KLM-3 limit switch A36-3000
local index:
ALC010POKO
Catalog No:
A36-3000
EAN code:
5902626109417
Price:
11,80 €
gross / pcs.
(including VAT 23%)
0,30 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KLM type limit switches are designed to work in signaling, protection and control circuits. The limit switch is activated by a driving device. The force applied to the pusher lever causes switching of the movable contacts. After the driving force is removed, the movable contacts return to the initial position under the influence of the spring force
Technical data
-
Surge voltage [kV]4
-
Level of securityIP66
-
PKWIU27.33.11
-
Rated voltage [V]500
-
Pieces in the package40
Other technical data
-
Degree of protection (IP)IP00
-
Height of sensor26.5 mm
-
Rated operation current Ie at AC-15, 230 V4 A
-
Rated operation current Ie at DC-13, 230 V0.25 A
-
Forced openingYes
-
Number of contacts as normally open contact1
-
Housing materialPlastic
-
Type of electric connectionFlat plug-in connection
-
Suitable for safety functionsNo
-
Width sensor30 mm
-
Length of sensor60 mm
-
Rated operation current Ie at DC-13, 125 V0.6 A
-
Output electronicNo
-
Number of contacts as normally closed contact1
-
Construction type housingCuboid
-
Type of control elementPlunger
-
With status indicationNo
-
Ambient temperature during operating-25 ... 70 °C
