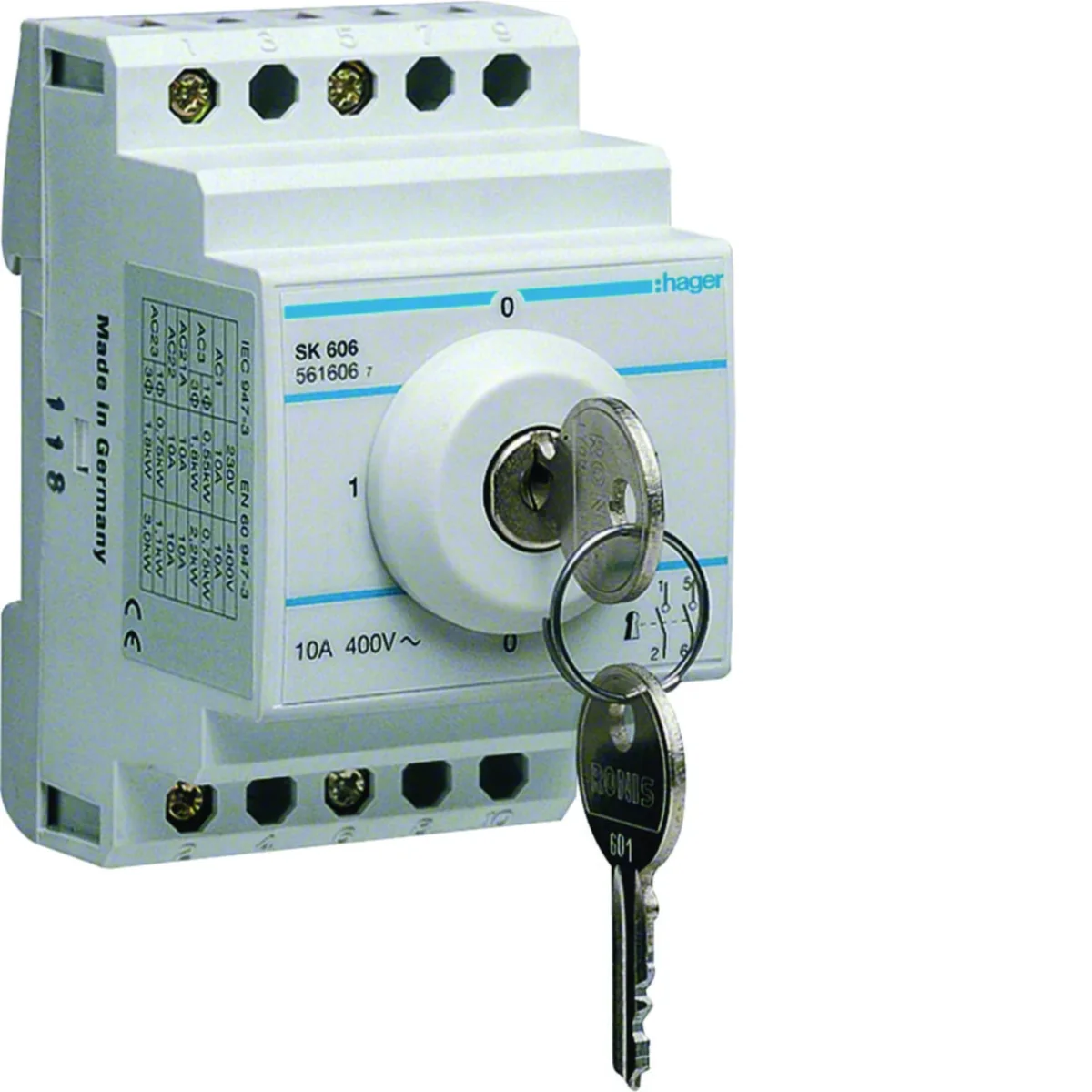

Key Switch 20A 400V 2 Pole SK606
local index:
ALB159HAGE
Catalog No:
SK606
EAN code:
3250615616067
Price:
123,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Key Switch 20A 400V 2 Pole
Technical data
-
Rated frequency [Hz]50
-
Number of contacts1NO
-
Rated insulation voltage [V]440
-
Level of securityIP20
-
Width [mm]70
-
Height [mm]85
-
Rated switching voltage [V]400
-
Setting [A]10
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]1 - 6
-
Depth [mm]64
-
Number of poles2
-
Rated current [A]10
-
power loss [W]1
-
Connection typeWith a screw
-
Operating temperature range [°C]from -10 to 40
-
Number of modules3
-
BeaconNO
-
Wire cross-section (cord) [mm²]1.5 - 10
-
PKWIU27.33.11.0
Other technical data
-
Switching functionControl switch
-
Number of contacts as normally closed contact0
-
Number of poles2
-
Rated voltage400 V
-
Short-circuit breaking capacity (Icw)3 kA
-
With signal lampNo
-
Built-in depth64 mm
-
Number of contacts as normally open contact2
-
Number of contacts as change-over contact0
-
Rated current10 A
-
Min. rated voltage400 V
-
Voltage typeAC
-
Width in number of modular spacings3
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,134 | 0,135 | 6,930 | 189,320 |
| Width (m) | 0,082 | 0,080 | 0,320 | 0,800 |
| Length (m) | 0,059 | 0,060 | 0,235 | 1,050 |
| Depth (m) | 0,094 | 0,095 | 0,360 | 1,200 |
