KBF2S11 K series limit switch, 1NO+1NC snap action contacts. Metal roller. KBF2S11

Name: KBF2S11 K series limit switch, 1NO+1NC snap action contacts. Metal roller.
Brand: LOVATO
SKU: ALC035LOVA
Price: 141.51 PLN
Availability: BackOrder

Index local:

ALC035LOVA

Numéro de catalogue:

KBF2S11

Code EAN:

8013975114568

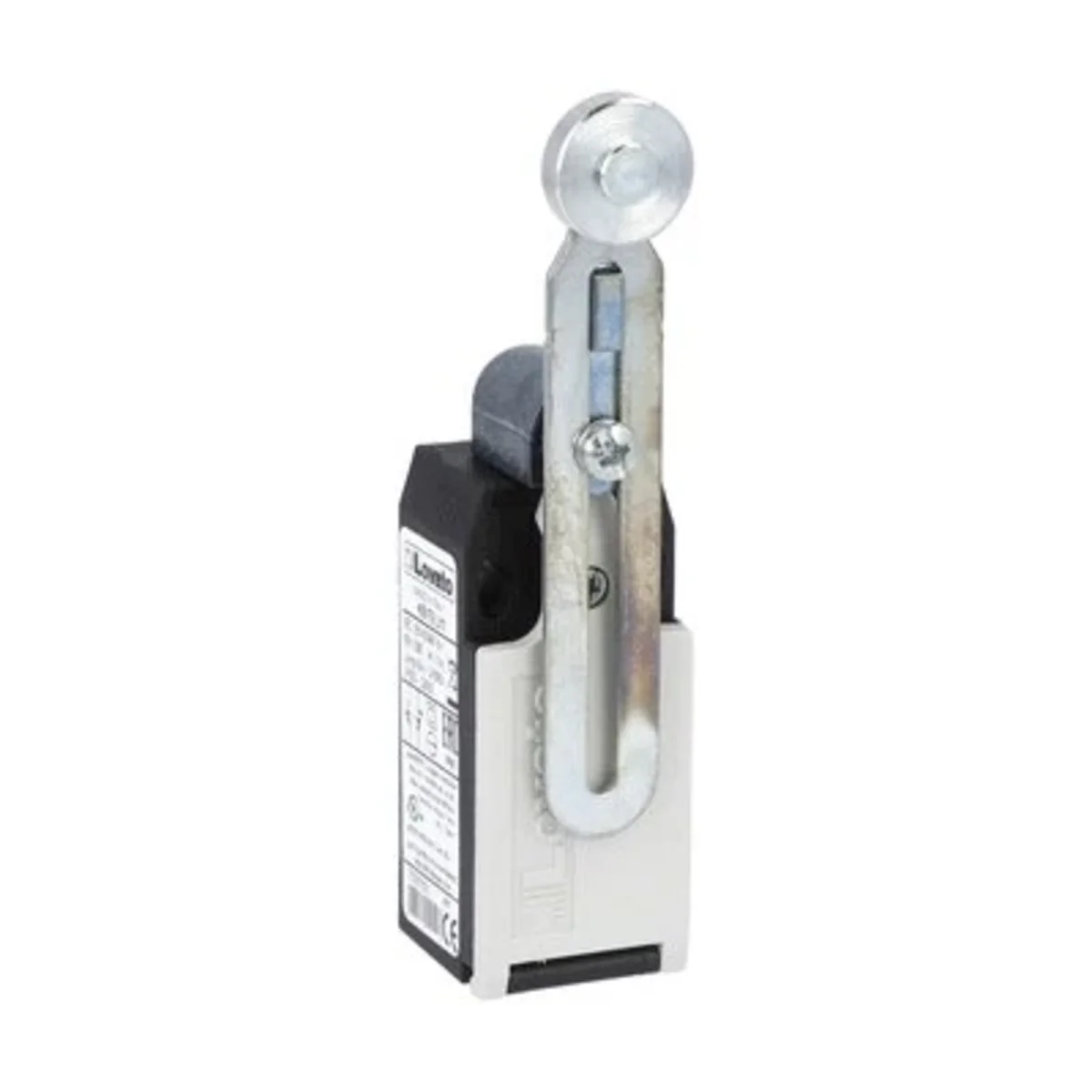

KBF2S11 K series limit switch, 1NO+1NC snap action contacts. Metal roller.

Cliquer sur la photo pour l'agrandir

Producteur: LOVATO

Prix:

141,51 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

1

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Données techniques

PKWIU

27.33.11.0

Autres données techniques

Width sensor

30 mm
Length of sensor

30 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

2.5 A
Rated operation current Ie at DC-13, 230 V

0.27 A
Switching function latching

Yes
Forced opening

Yes
Number of contacts as normally closed contact

1
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Plastic
Alignment of the control element

Other
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C

Height of sensor

165 mm
Rated operation current Ie at AC-15, 24 V

10 A
Rated operation current Ie at AC-15, 230 V

3 A
Rated operation current Ie at DC-13, 125 V

0.55 A
Switching function

Quick-break switch
Output electronic

No
Number of safety auxiliary contacts

0
Number of contacts as normally open contact

1
Type of interface

None
Construction type housing

Cuboid
Type of control element

Adjustable roller lever
Type of electric connection

Cable entry metrical
Suitable for safety functions

No
Explosion safety category for dust

None
Degree of protection (IP)

IP65

Détails du fabricant

Producteur

LOVATO ELECTRIC S.P.A.
Adresse

24020 GORLE (Bergamo) Via Don E. Mazza 12 Włochy
E-mail

info@lovatoelectric.pl

Emballage en vrac

Une sorte de paquet	Sztuka
Quantité	1 pcs.
poids (kg)	0,124
Largeur (m)	0,044
Longueur (m)	0,133
Profondeur (m)	0,032
