KBE1S11 K series limit switch, 1NO+1NC snap action contacts. Plastic roller. KBE1S11

Name: KBE1S11 K series limit switch, 1NO+1NC snap action contacts. Plastic roller.
Brand: LOVATO
SKU: ALC036LOVA
Price: 127.12 PLN
Availability: BackOrder

Indice locale:

ALC036LOVA

Numero di catalogo:

KBE1S11

Codice EAN:

8013975114209

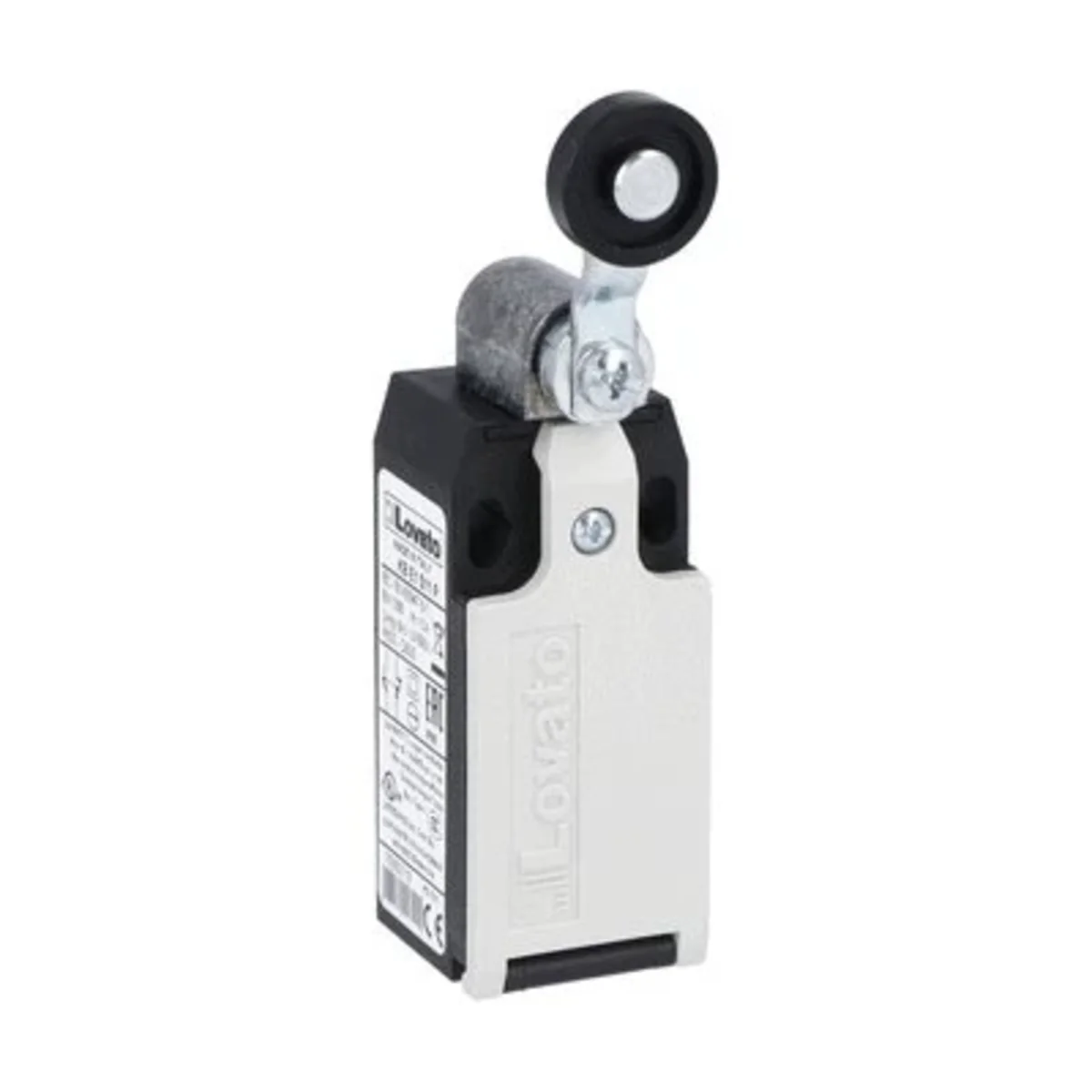

KBE1S11 K series limit switch, 1NO+1NC snap action contacts. Plastic roller.

Clicca sulla foto per ingrandire

Produttore: LOVATO

Prezzo:

127,12 zł

gross / pezzi

(inclusa IVA 23%)

2 settimane

Su ordinazione

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Dati tecnici

PKWIU

27.33.11.0

Altri dati tecnici

Width sensor

30 mm
Length of sensor

30 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

2.5 A
Rated operation current Ie at DC-13, 230 V

0.27 A
Switching function latching

Yes
Forced opening

Yes
Number of contacts as normally closed contact

1
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Plastic
Alignment of the control element

Other
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C

Height of sensor

110 mm
Rated operation current Ie at AC-15, 24 V

10 A
Rated operation current Ie at AC-15, 230 V

3 A
Rated operation current Ie at DC-13, 125 V

0.55 A
Switching function

Quick-break switch
Output electronic

No
Number of safety auxiliary contacts

0
Number of contacts as normally open contact

1
Type of interface

None
Construction type housing

Cuboid
Type of control element

Square roller lever
Type of electric connection

Cable entry metrical
Suitable for safety functions

No
Explosion safety category for dust

None
Degree of protection (IP)

IP65

Dettagli del produttore

Produttore

LOVATO ELECTRIC S.P.A.
Indirizzo

24020 GORLE (Bergamo) Via Don E. Mazza 12 Włochy
Email

info@lovatoelectric.pl

Imballaggio sfuso

Una specie di pacchetto	Sztuka
Quantità	1 pezzi
Peso (kg)	0,098
Larghezza (m)	0,044
Lunghezza (m)	0,133
Profondità (m)	0,032
