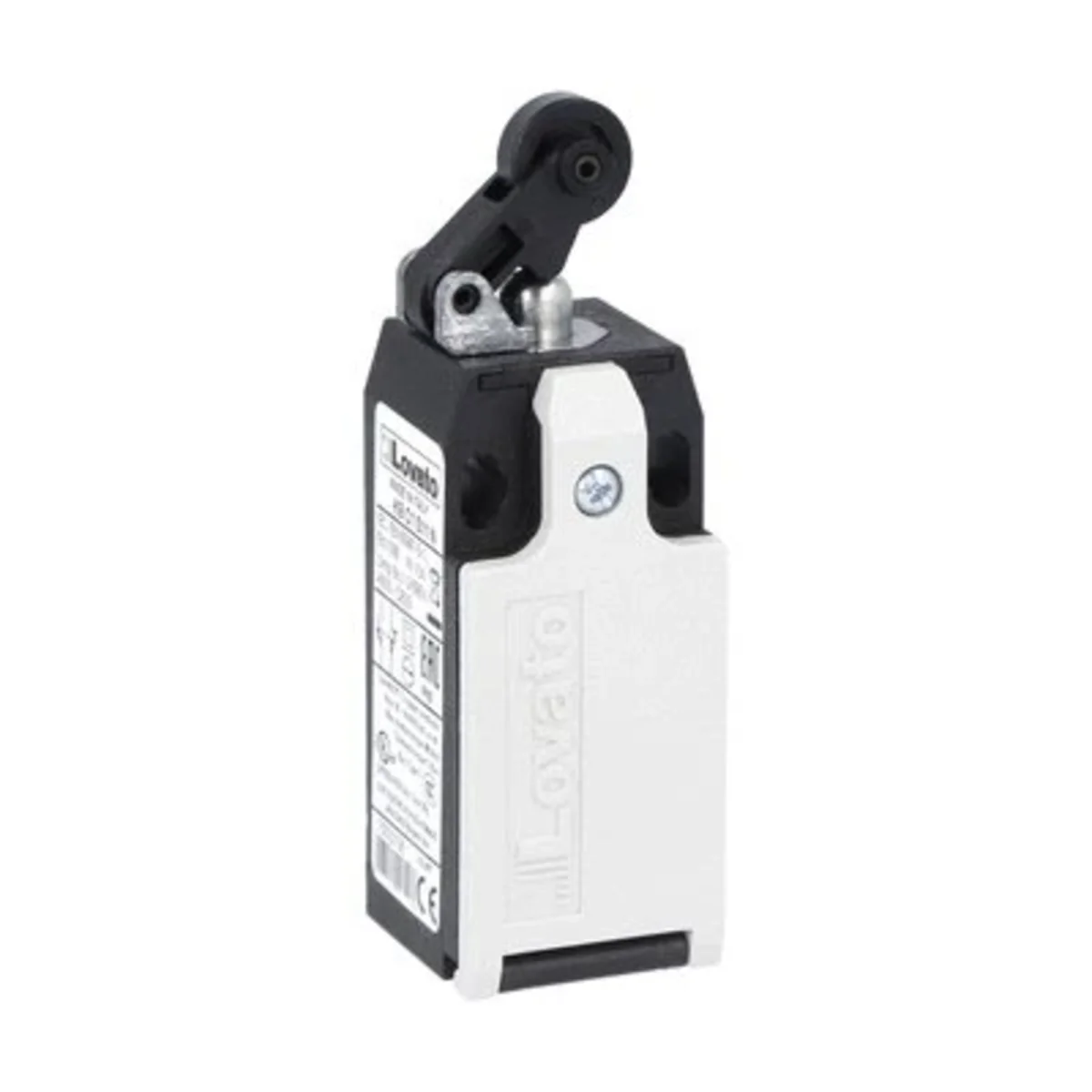

KBC1S11 K series limit switch, 1NO+1NC snap action contacts. Plastic roller. KBC1S11

Name: KBC1S11 K series limit switch, 1NO+1NC snap action contacts. Plastic roller.
Brand: LOVATO
SKU: ALC043LOVA
Price: 121.52 PLN
Availability: BackOrder

local index:

ALC043LOVA

Catalog number:

KBC1S11

EAN code:

8013975113844

KBC1S11 K series limit switch, 1NO+1NC snap action contacts. Plastic roller.

Click on the photo to enlarge

Manufacturer: LOVATO

Price:

121,52 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

PKWIU

27.33.11.0

Other technical data

Width sensor

30 mm
Length of sensor

30 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

2.5 A
Rated operation current Ie at DC-13, 230 V

0.27 A
Switching function latching

Yes
Forced opening

Yes
Number of contacts as normally closed contact

1
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Plastic
Alignment of the control element

Roller cam crossed
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C

Height of sensor

94 mm
Rated operation current Ie at AC-15, 24 V

10 A
Rated operation current Ie at AC-15, 230 V

3 A
Rated operation current Ie at DC-13, 125 V

0.55 A
Switching function

Quick-break switch
Output electronic

No
Number of safety auxiliary contacts

0
Number of contacts as normally open contact

1
Type of interface

None
Construction type housing

Cuboid
Type of control element

Roller lever
Type of electric connection

Cable entry metrical
Suitable for safety functions

No
Explosion safety category for dust

None
Degree of protection (IP)

IP65

Manufacturer details

Manufacturer

LOVATO ELECTRIC S.P.A.
Address

24020 GORLE (Bergamo) Via Don E. Mazza 12 Włochy
E-mail

info@lovatoelectric.pl

Bulk packaging

A kind of package	Sztuka
Quantity	1 pcs.
Weight (kg)	0,074
Width (m)	0,044
Length (m)	0,100
Depth (m)	0,032
