Interface relay PI85T-024DC-M41G-TS-3011-V0 862576

local index:
APE285RELP
Catalog No:
862576
EAN code:
5900005224249
Manufacturer: RELPOL
Number of poles: 1
Price:
16,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

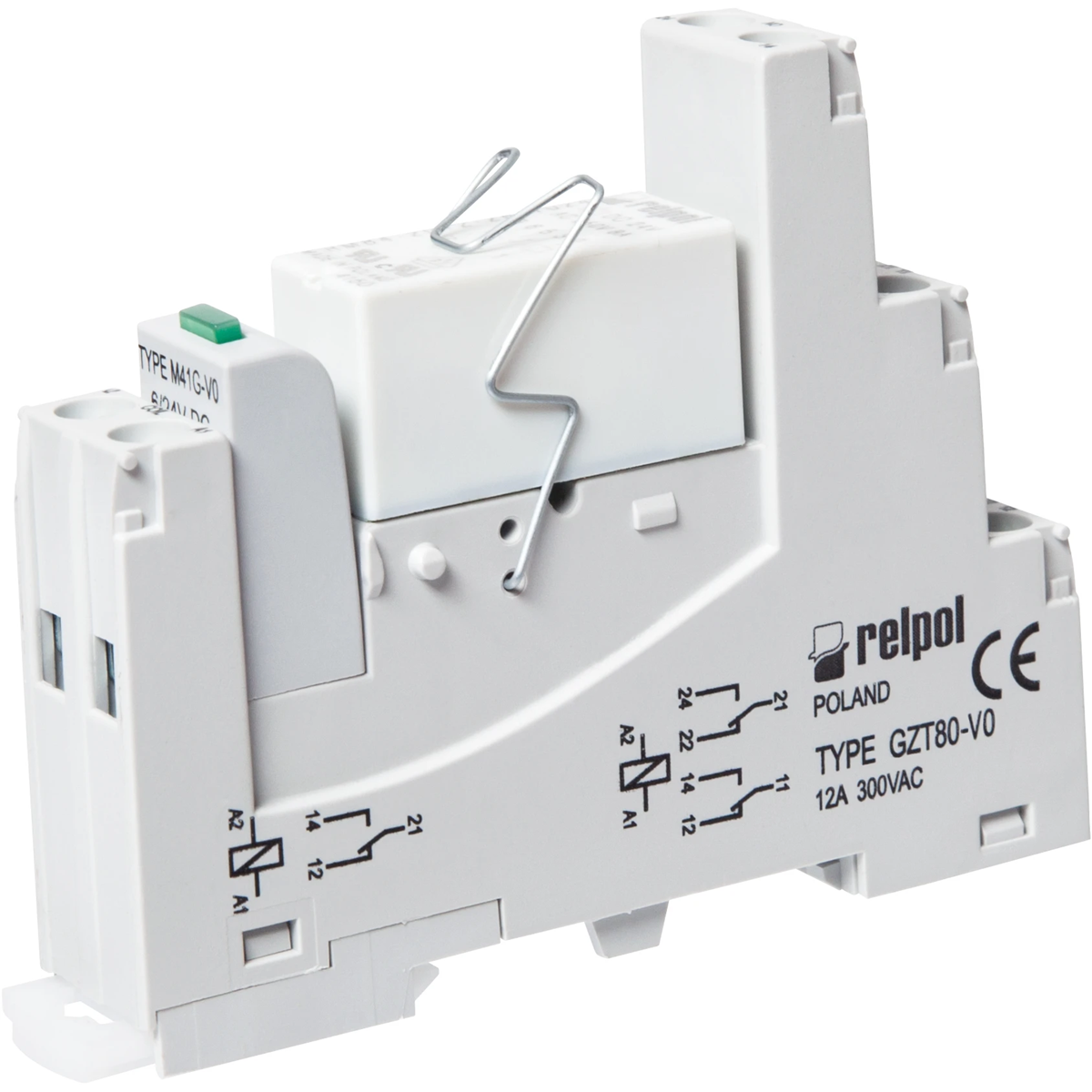

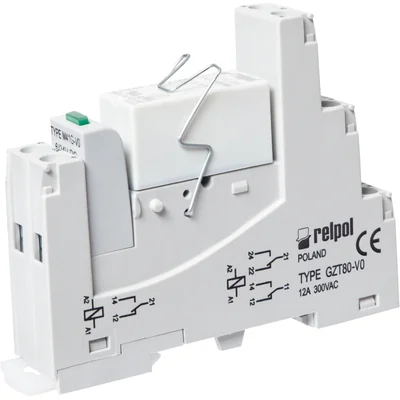

Interface relay: 1P - one changeover contact. Width 15.6mm. Circuit separation - input / output. Green LED indicator. Surge suppression diode D. screw terminals. Output: 1P contacts - terminals: 11/21-12/22-14/24; AC1 - 16A / 250V; DC1 - 16 A / 24 V. Contact loads above 12 A require bridging of screw terminals: 11 with 21, 12 with 22, 14 with 24. Input - terminals: (+)A1 - (-)A2, supply voltage Un - 24 V DC. Dimensions: 80 x 15.6 x 61mm. Mounting on a 35 mm rail or on a mounting plate with one M3 screw. The kit includes a GZT80-V0 - IP 20 socket.

Technical data

  • Number of poles
    1
