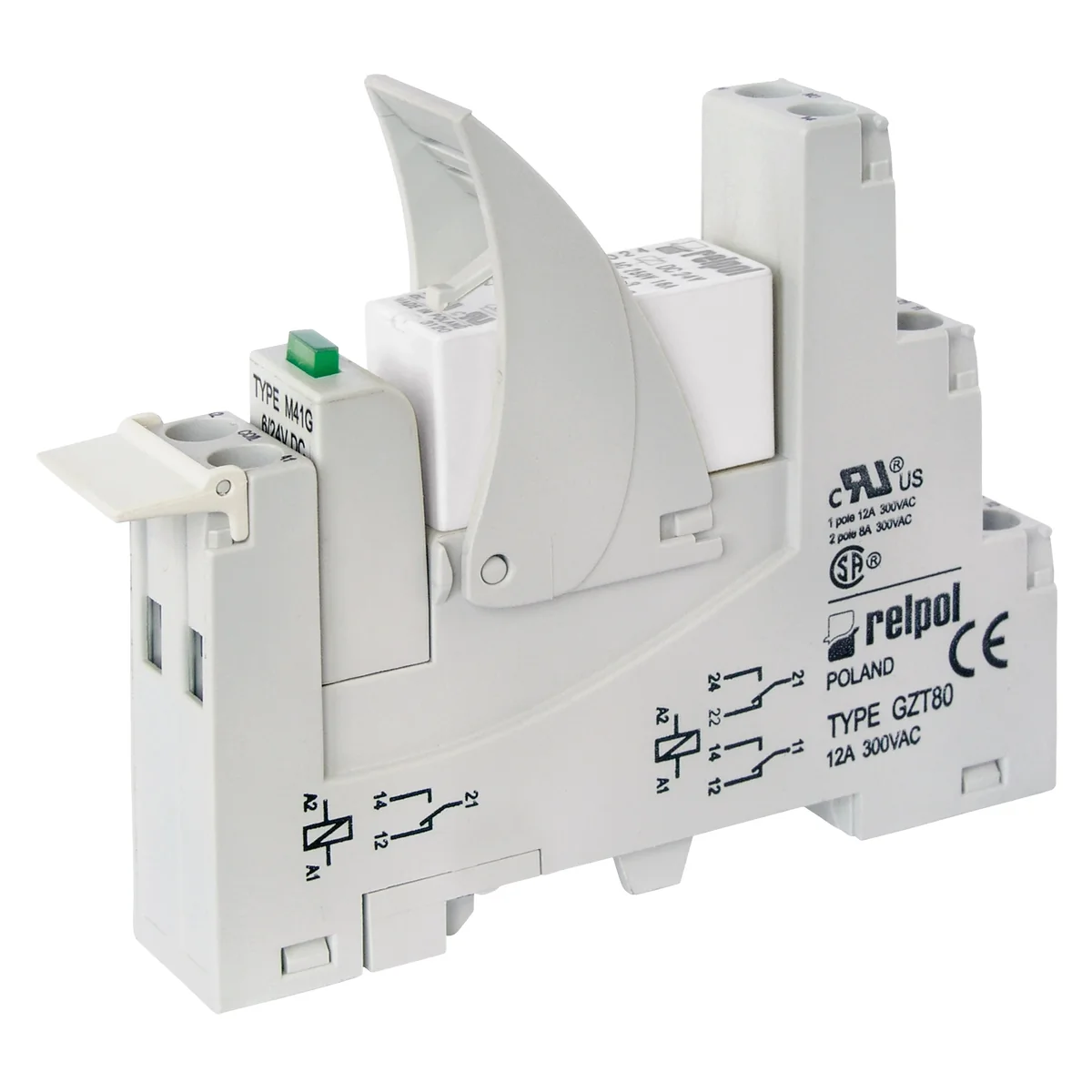

Interface relay PI85-110DC-M43G-TS-2011 862111

local index:
APE598RELP
Catalog No:
862111
EAN code:
5900005214042
Manufacturer: RELPOL
Family: PI | PI6 | PIR6W | PIR6WB | SIR6W | SIR6WB
Price:
16,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Interface relay: 1P - one changeover contact. AgNi contact material. Width 15.6mm. Circuit separation - input / output. Green LED indicator. Surge suppression diode D. screw terminals. Output: 1P contacts - terminals: 11/21-12/22-14/24; AC1 - 16A / 250V; DC1 - 16 A / 24 V. Contact loads above 12 A require bridging of screw terminals: 11 with 21, 12 with 22, 14 with 24. Input - terminals: (+)A1 - (-)A2, supply voltage Un - 110 V DC. Dimensions: 80 x 15.6 x 67mm. Mounting on a 35 mm rail or on a mounting plate with one M3 screw. The kit includes a GZT80 - IP 20 socket.

Technical data

  • Family
    PI PI6 PIR6W PIR6WB SIR6W SIR6WB
