Interface relay PI85-024DC-M41G-TS-2011 862110

Índice local:
APE597RELP
Número de catálogo:
862110
Código EAN:
5900005214004
Fabricante: RELPOL
Family: PI | PI6 | PIR6W | PIR6WB | SIR6W | SIR6WB
Precio:
12,61 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta una semana (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

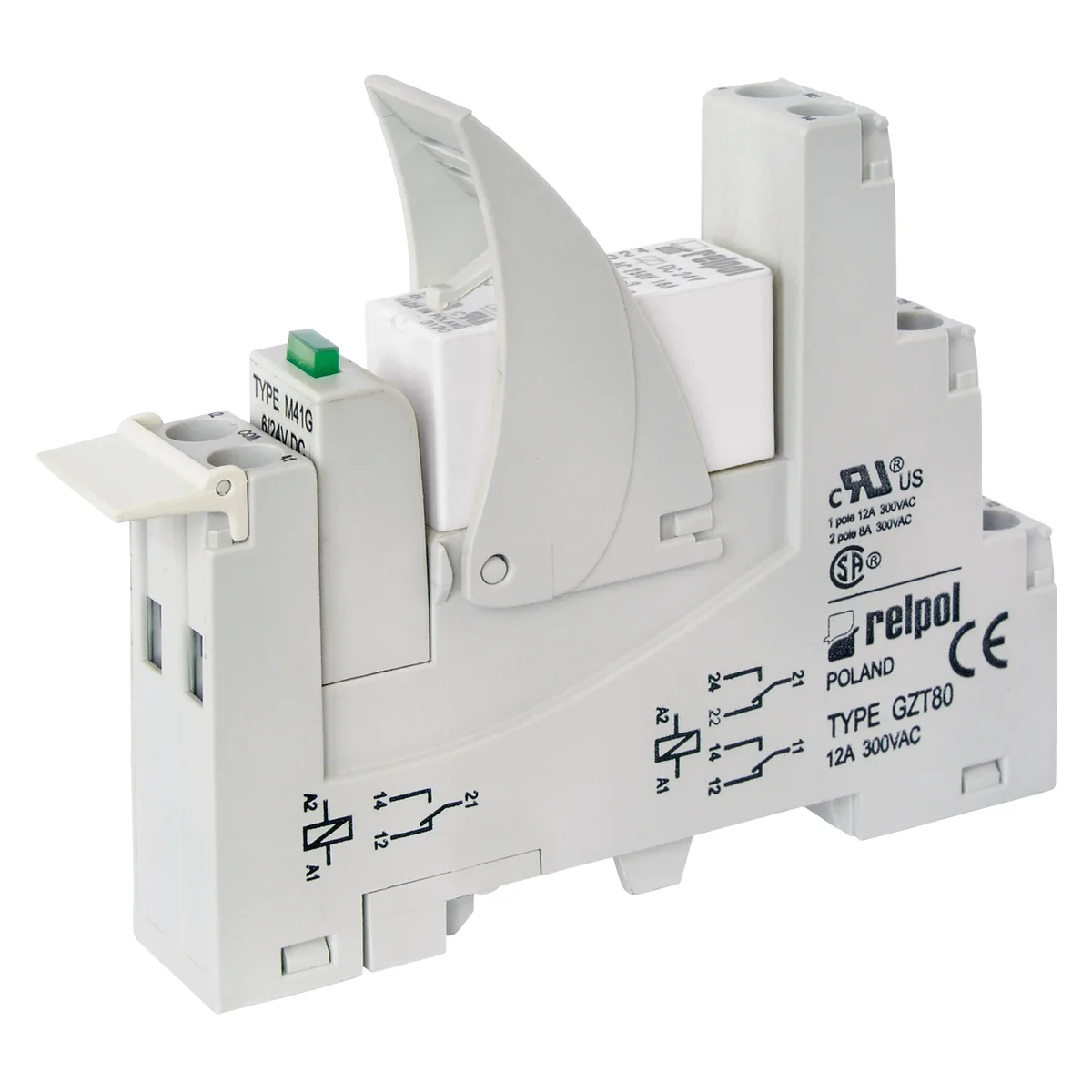

Interface relay: 1P - one changeover contact. AgNi contact material. Width 15.6mm. Circuit separation - input / output. Green LED indicator. Surge suppression diode D. screw terminals. Output: 1P contacts - terminals: 11/21-12/22-14/24; AC1 - 16A / 250V; DC1 - 16 A / 24 V. Contact loads above 12 A require bridging of screw terminals: 11 with 21, 12 with 22, 14 with 24. Input - terminals: (+)A1 - (-)A2, supply voltage Un - 24 V DC. Dimensions: 80 x 15.6 x 67mm. Mounting on a 35 mm rail or on a mounting plate with one M3 screw. The kit includes a GZT80 - IP 20 socket.

Datos técnicos

  • Family
    PI PI6 PIR6W PIR6WB SIR6W SIR6WB
