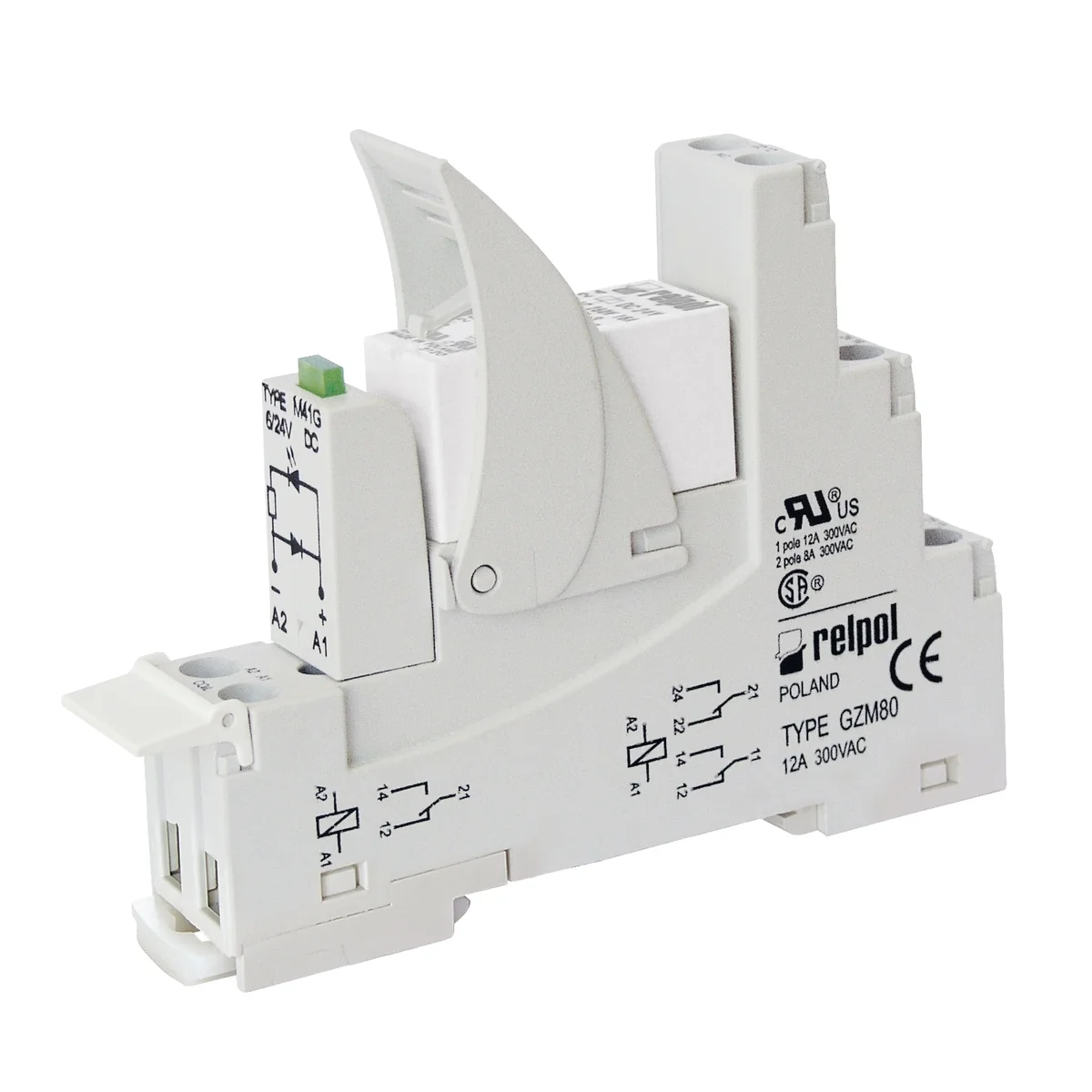

Interface relay PI85-024DC-M41G-MS-2011 862205

local index:
APE092RELP
Catalog No:
862205
EAN code:
5900005217456
Manufacturer: RELPOL
Family: PI | PI6 | PIR6W | PIR6WB | SIR6W | SIR6WB
Price:
12,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Interface relay: 1P - one changeover contact. Width 15.9mm. AgNi contact material. Circuit separation - input / output. Green LED indicator. Surge suppression diode D. screw terminals. Output: 1P contacts - terminals: 11-12-14; 21-22-24; AC1 - 16A / 250V; DC1 - 16 A / 24 V. Contact loads above 12 A require bridging of screw terminals: 11 with 21, 12 with 22, 14 with 24. Input - terminals: (+)A1 - (-)A2, supply voltage Un - 24 V DC. Dimensions: 81.6 x 15.9 x 67mm. Mounting on a 35 mm rail or on a mounting plate with one M3 screw. The set includes a GZM80 - IP 20 socket.

Technical data

  • Family
    PI PI6 PIR6W PIR6WB SIR6W SIR6WB
