Interface relay PI84-120AC-M93G-MS-3012 862196

local index:
APE623RELP
Catalog No:
862196
EAN code:
5900005217098
Manufacturer: RELPOL
Family: PI | PI6 | PIR6W | PIR6WB | SIR6W | SIR6WB
Price:
15,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

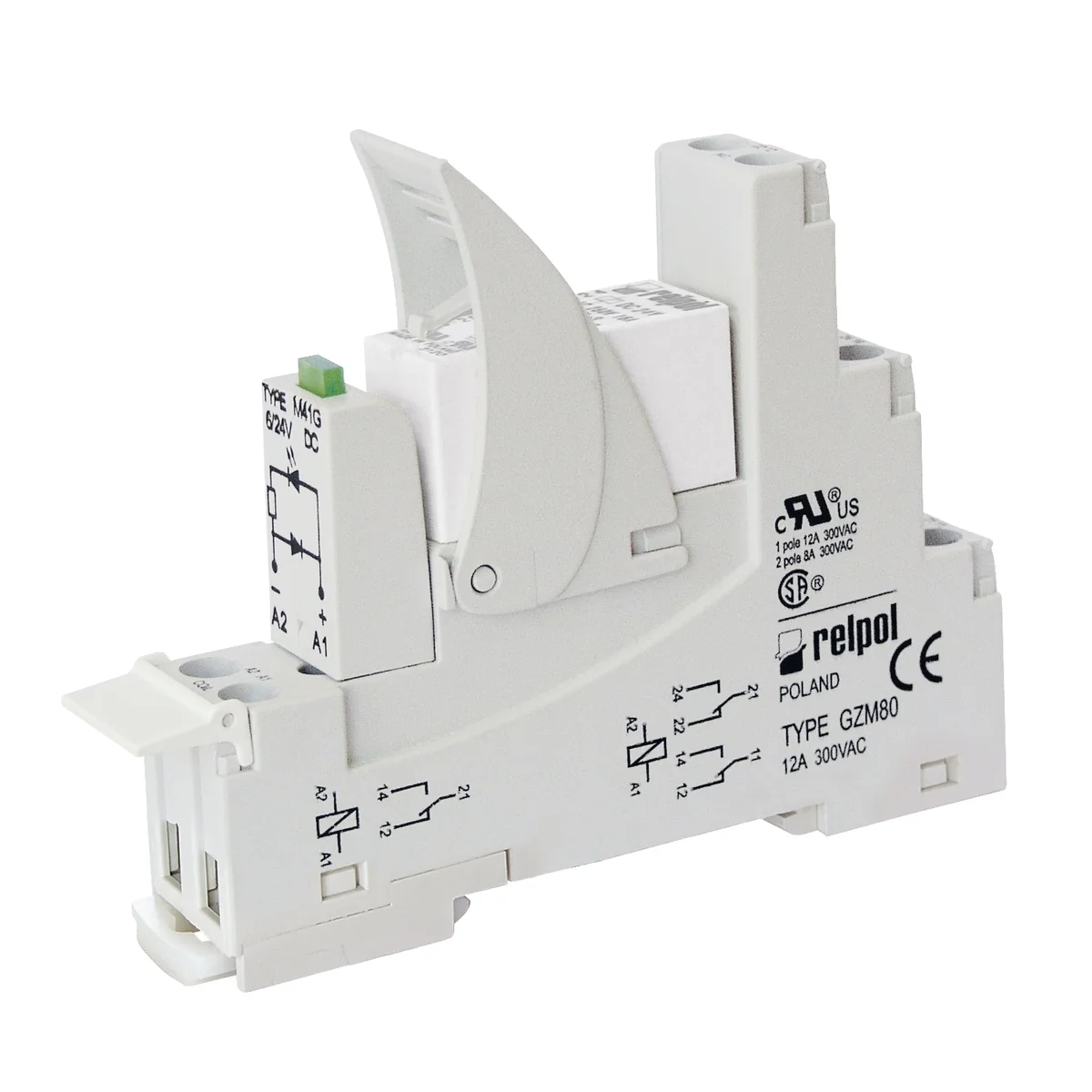

Interface relay: 2P - two changeover contacts. Width 15.9mm. AgSnO2 contact material. Circuit separation - input / output. Green LED indicator. Varistor V suppressing surges. screw terminals. Output: 2P contacts - terminals: 11-12-14; 21-22-24; AC1 - 8A / 250V; DC1 - 8 A / 24 V. Input - terminals: (+)A1 - (-)A2, supply voltage Un - 120 V AC. Dimensions: 81.6 x 15.9 x 67mm. Mounting on a 35 mm rail or on a mounting plate with one M3 screw. The set includes a GZM80 - IP 20 socket.

Technical data

  • Family
    PI PI6 PIR6W PIR6WB SIR6W SIR6WB
