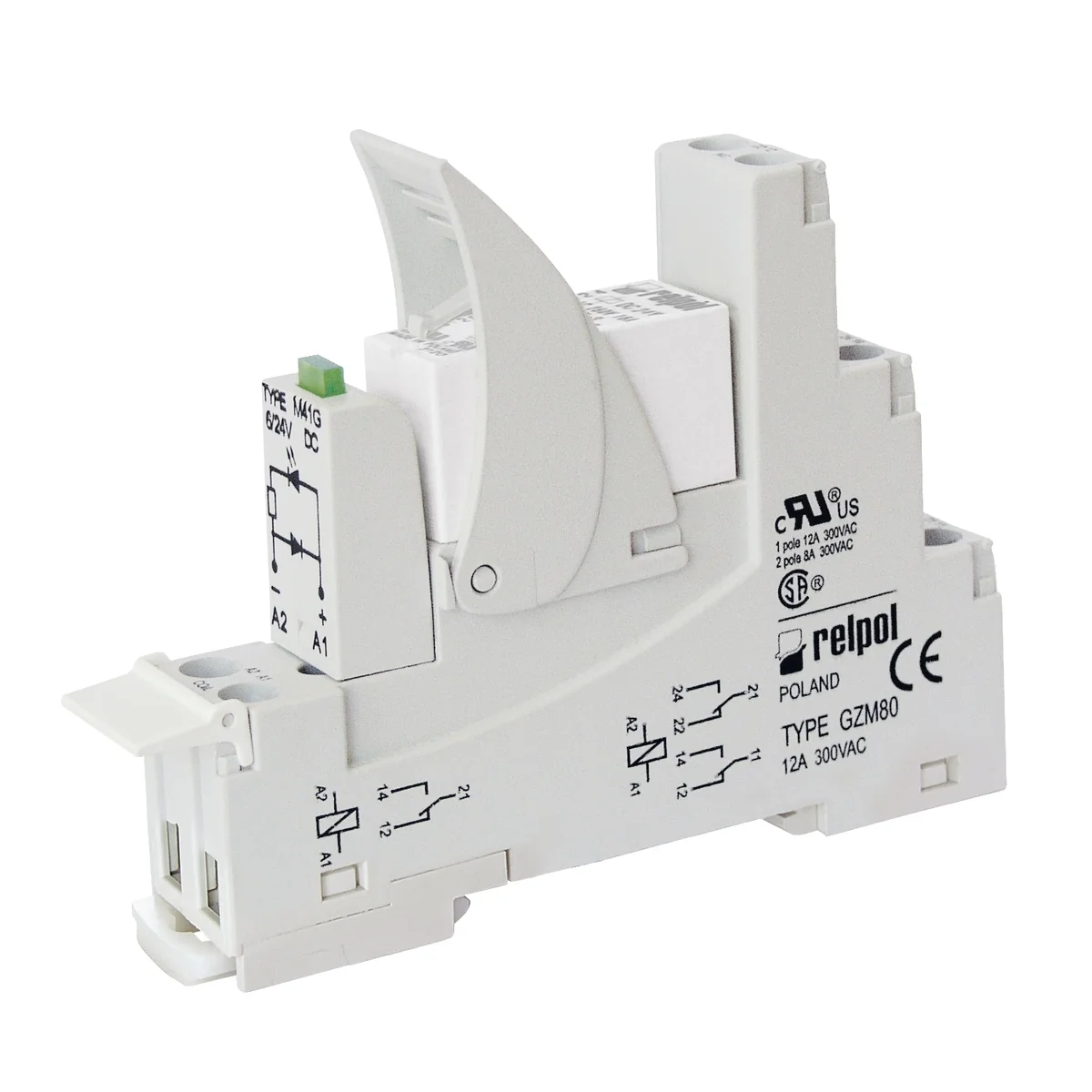

Interface relay PI84-048DC-M42G-MS-2012 863498

local index:
APE649RELP
Catalog No:
863498
EAN code:
5900005236983
Manufacturer: RELPOL
Family: PI | PI6 | PIR6W | PIR6WB | SIR6W | SIR6WB
Price:
13,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Interface relay: 2P - two changeover contacts. Width 15.9mm. AgNi contact material. Circuit separation - input / output. Green LED indicator. Surge suppression diode D. screw terminals. Output: 2P contacts - terminals: 11-12-14; 21-22-24; AC1 - 8A / 250V; DC1 - 8 A / 24 V. Input - terminals: (+)A1 - (-)A2, supply voltage Un - 48 V DC. Dimensions: 81.6 x 15.9 x 67mm. Mounting on a 35 mm rail or on a mounting plate with one M3 screw. The set includes a GZM80 - IP 20 socket.

Technical data

  • Family
    PI PI6 PIR6W PIR6WB SIR6W SIR6WB
  • PKWIU
    27.33.11.0
