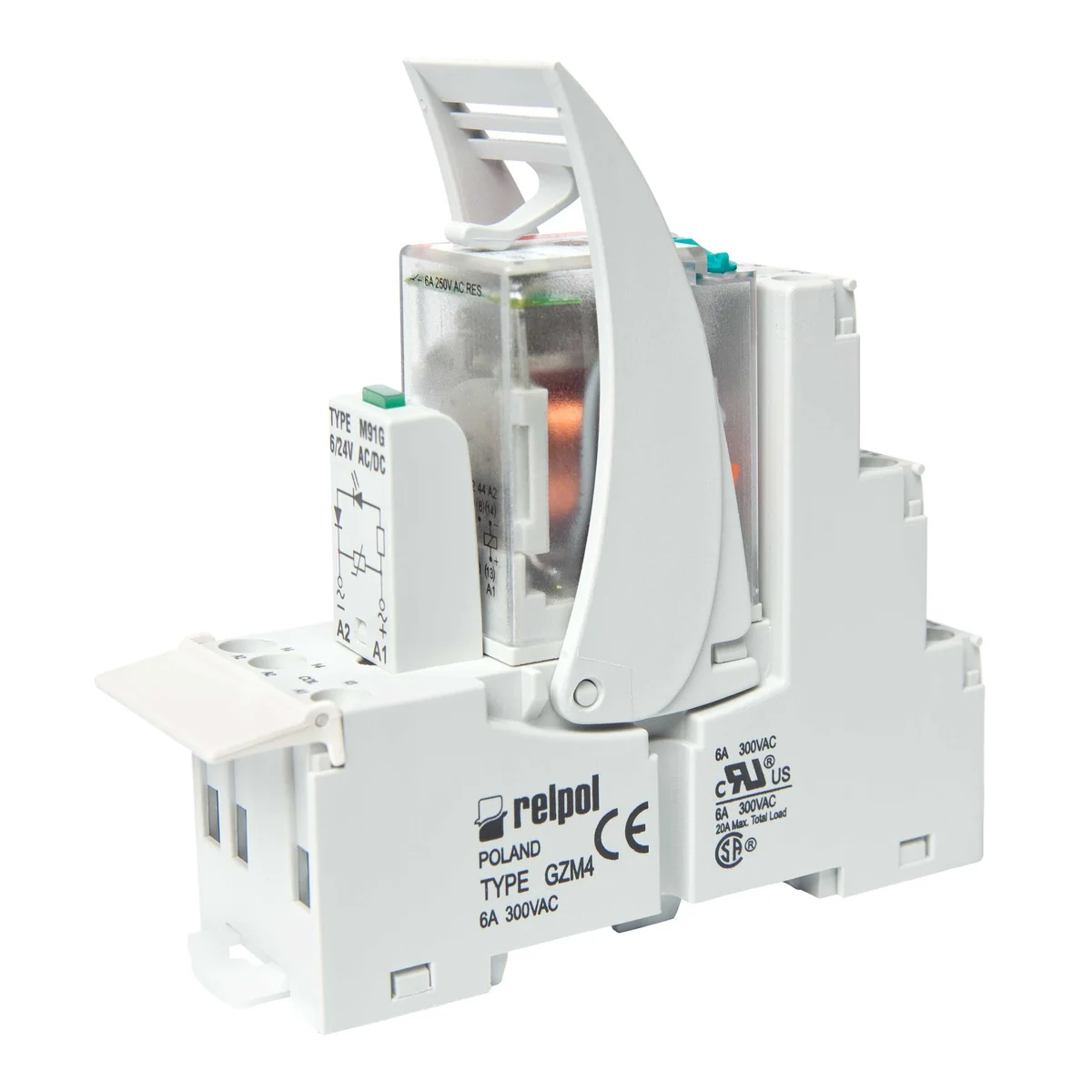

Interface relay: 4P - four changeover contacts PIR4-120AC-00LV 854785

local index:
APE553RELP
Catalog No:
854785
EAN code:
5900005165450
Manufacturer: RELPOL
Level of security: IP20
Width [mm]: 27
Price:
19,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Interface relay: 4P - four changeover contacts. Width 27mm. Circuit separation - input / output. Green LED indicator. Varistor V suppressing surges. screw terminals. Output: 4P contacts - terminals: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8); AC1 - 6A / 250V; DC1 - 6 A / 24 V. Input - terminals: (+)A1(13) - (-)A2(14), supply voltage Un - 120 V AC. Dimensions: 75x27x82mm. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. The set includes a GZM4 - IP 20 socket.

Technical data

  • Level of security
    IP20
  • Width [mm]
    27

Other technical data

  • Type of electric connection
    Screw connection
  • Rated control supply voltage AC 60 Hz
    120 ... 120 V
  • Voltage type for actuating
    AC
  • Drive, switching attitude
    Mono stable
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP20
  • Height
    75 mm
  • Rated control supply voltage AC 50 Hz
    120 ... 120 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Drive, polarization
    Polarity free
  • Number of contacts as change-over contact
    4
  • Complete with socket
    Yes
  • Width
    27 mm
  • Depth
    82 mm
