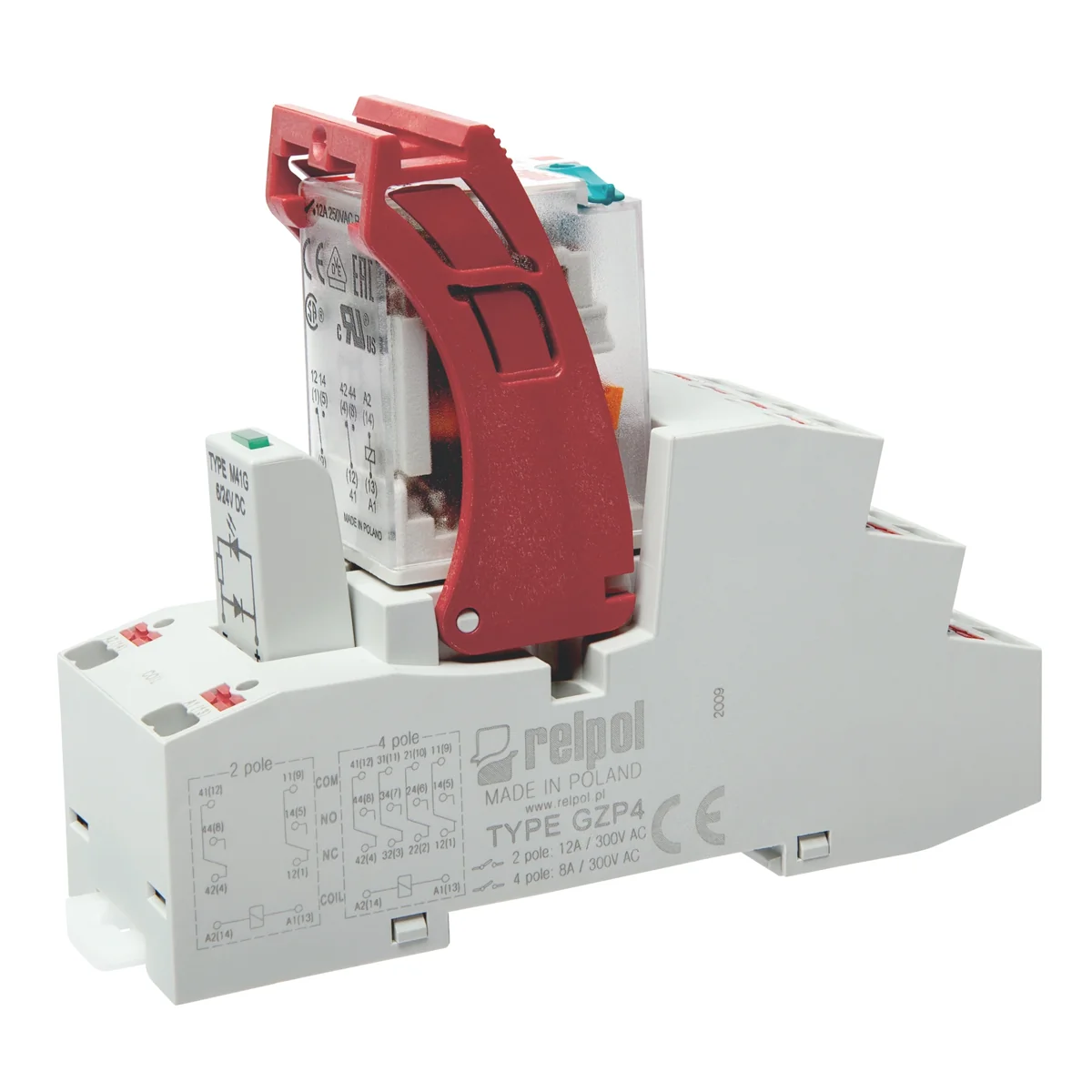

Interface Relay 24V DC 2P AgNi 12A / 250V AC 864839

PUSH-IN interface relay: 2P - two changeover contacts, supply voltage Un - 24V DC, contact material AgNi.

• AC1 - 12A / 250V AC; DC1 - 12A / 24V DC.
• Dimensions: 97 x 31 x 75.8mm.
• Mounting on a 35 mm rail or on a mounting plate with one M3 screw.
• Adapted to work with ZGZP comb connectors.
• The set includes: GZP4 push-in socket, R2N relay, GZP4-0400 ejection clamp and M41G surge protection module (green LED + suppression diode D, N polarity: +A1/-A2)
