Interface relay 24V AC 1P AgNi 16A / 250V AC 864994

PUSH-IN interface relay: 1P - one changeover contact, supply voltage Un - 24V AC, contact material AgNi.

• AC1 - 16A / 250V AC; DC1 - 16A / 24V DC.
• Dimensions: 97 x 15.9 x 75.8 mm.
• Mounting on a 35 mm rail or on a mounting plate with one M3 screw.
• Adjusted to work with comb connectors type ZGZP.

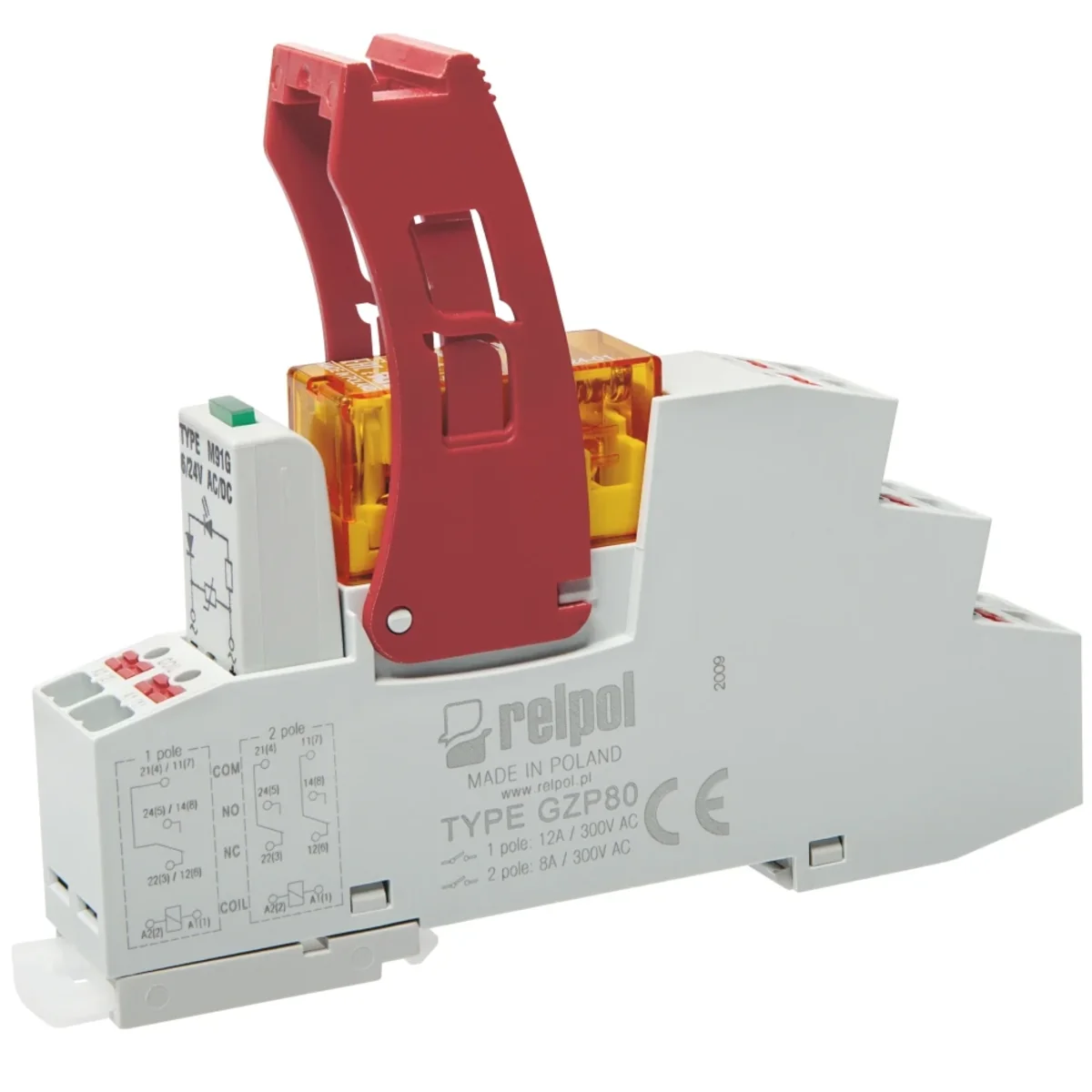

• The set includes: GZP80 push-in socket, RM85 relay in a transparent orange housing, GZP80-0400 discharge clamp and M91G surge protection module (green LED + varistor)
