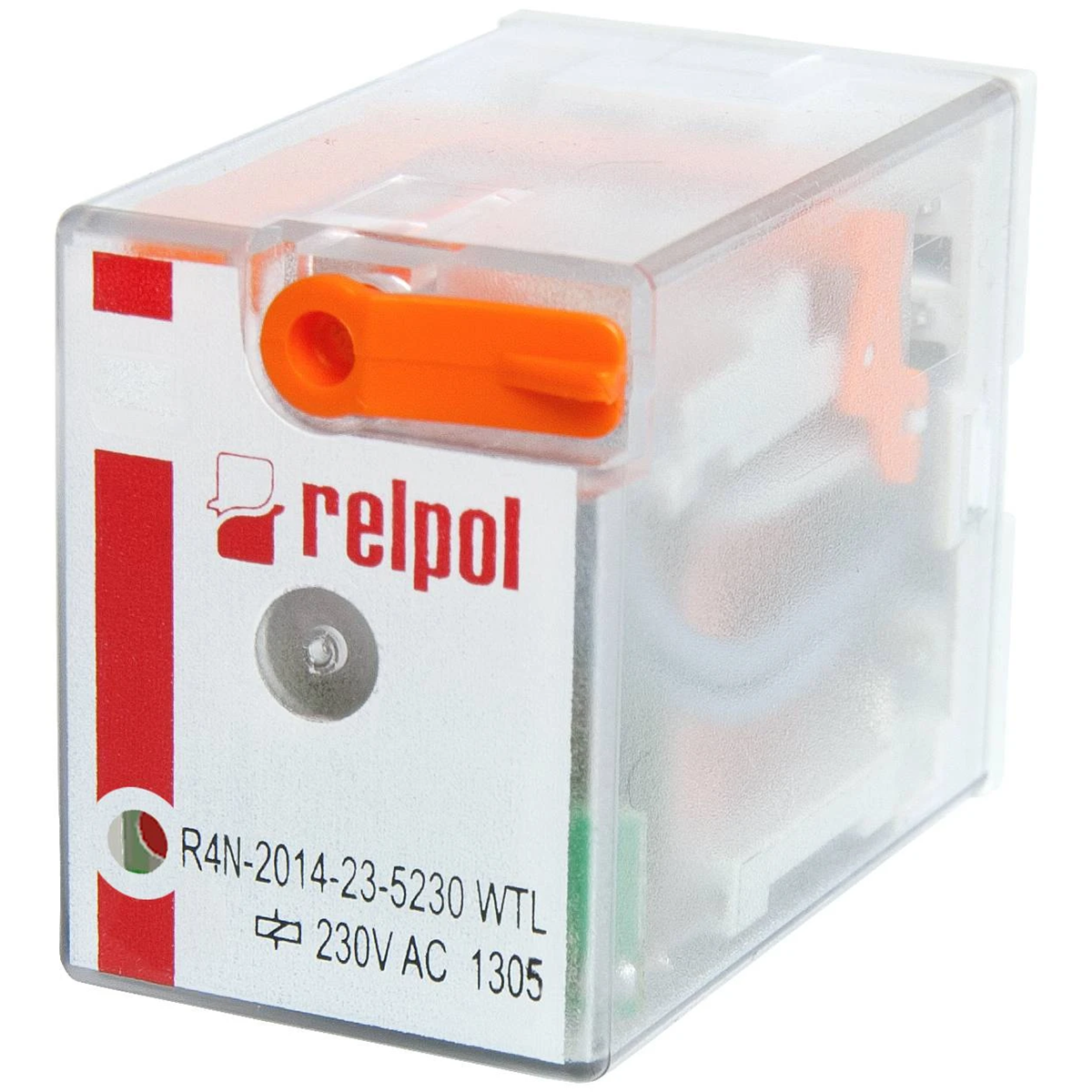

Industrial relay R4N-2014-23-5120-WTL 860623
local index:
APE255RELP
Catalog No:
860623
Manufacturer:
RELPOL
Family: R2N | R3N | R4N | R15 2P | R15 3P
Price:
12,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, industrial - miniature, for plug socket. Width 21.2mm. Output: 4P - four changeover contacts - terminals: 11(9), 12(1), 14(5); 21(10), 22(2), 24(6); 31(11), 32(3), 34(7); 41(12), 42(4), 44(8); AC1 - 6A / 250V; DC1 - 6 A / 24 V. Input / coil - terminals: A1(13) - A2(14), supply voltage Un - 120 V AC. Mechanical indicator W, red LED indicator L, test button T with locking function. Dimensions: 27.5 x 21.2 x 35.6mm. IP 40. Contact material: AgNi. Dimensions of the R4N set + plug socket + clamp: are indicated in the description of the selected socket.
Technical data
-
FamilyR2N R3N R4N R15 2P R15 3P
Other technical data
-
Type of electric connectionPlug-in connection
-
Rated control supply voltage AC 60 Hz120 ... 120 V
-
Voltage type for actuatingAC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP40
-
Height27.5 mm
-
Rated control supply voltage AC 50 Hz120 ... 120 V
-
Rated control supply voltage DC0 ... 0 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact4
-
Complete with socketNo
-
Width21.2 mm
-
Depth35.6 mm
