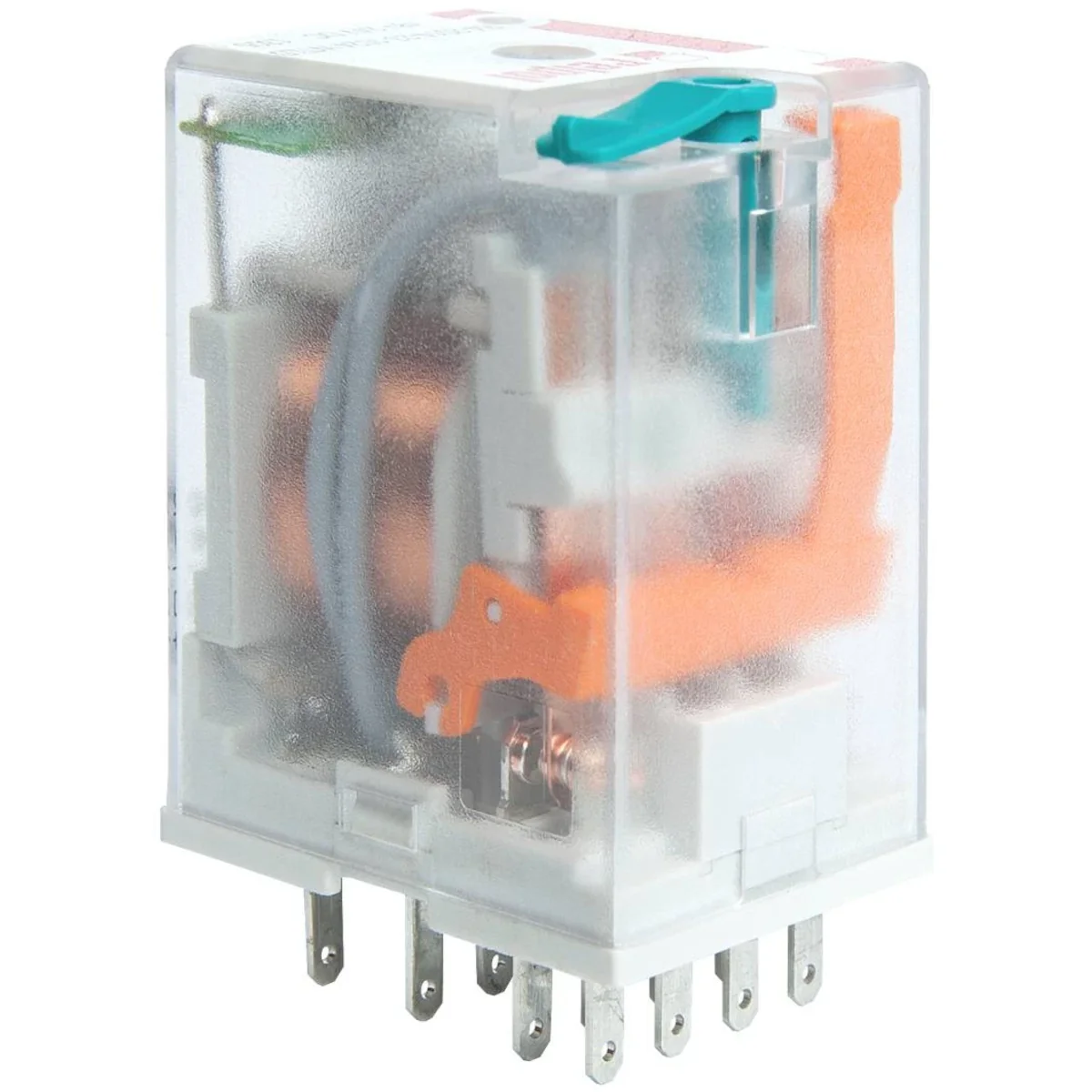

Industrial relay R4N-2014-23-1060-WT 860615

local index:
APE562RELP
Catalog No:
860615
Manufacturer: RELPOL
Family: R2N | R3N | R4N | R15 2P | R15 3P
Price:
10,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic relay, industrial - miniature, for plug socket. Width 21.2mm. Output: 4P - four changeover contacts - terminals: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8); AC1 - 6A / 250V; DC1 - 6 A / 24 V. Input / coil - terminals: A1(13) - A2(14), supply voltage Un - 60 V DC, any polarity. Mechanical indicator W and test button T with locking function. Dimensions: 27.5 x 21.2 x 35.6mm. IP 40. Contact material: AgNi. Dimensions of the R4N set + plug socket + clamp: are indicated in the description of the selected socket.

Technical data

  • Family
    R2N R3N R4N R15 2P R15 3P
