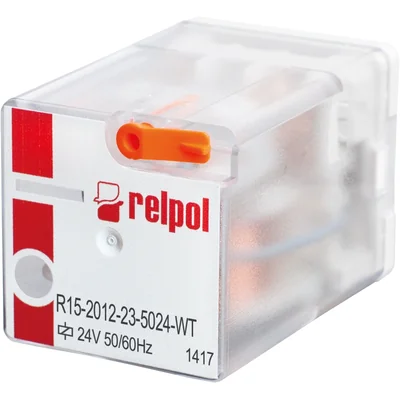

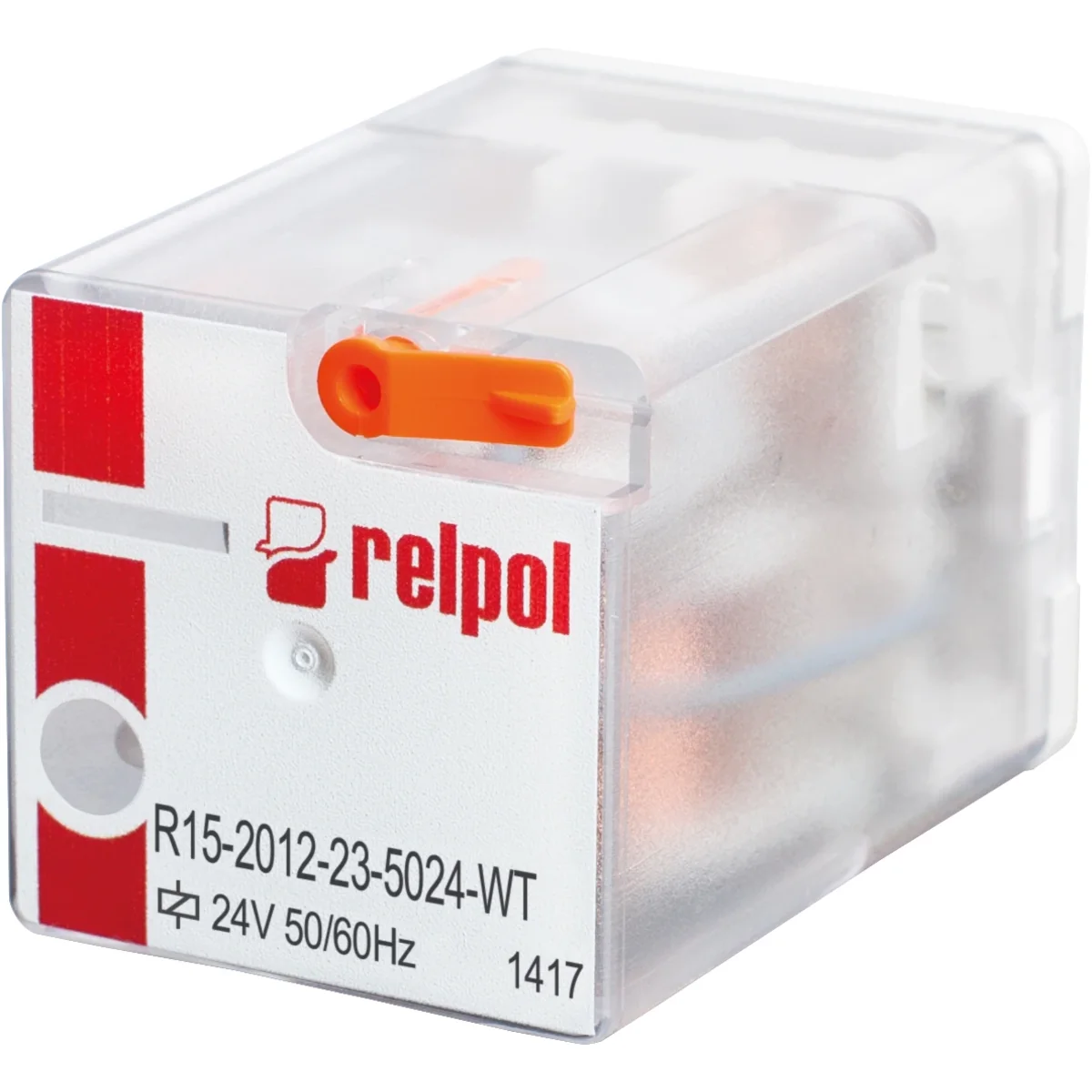

Industrial relay R15-2113-23-5024-WT 804456

local index:
APE513RELP
Catalog No:
804456
Manufacturer: RELPOL
Family: R2N | R3N | R4N | R15 2P | R15 3P
Price:
14,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic relay, industrial - small size, for plug socket. Width 35mm. Output: 3P - three changeover contacts - terminals: 111(1), 12(4), 14(3); 21(6), 22(5), 24(7); 31(11), 32(8), 34(9); AC1 - 10A / 250V; DC1 - 10 A / 24 V. Input / coil - terminals: A1(2) - A2(10), supply voltage Un - 24 V AC. Mechanical indicator W, test button T - with contact blocking function. Dimensions: 35x35x54.4mm. IP 40. Contact material: AgNi/Au stock gold plating. Dimensions of the set R15 3P + socket PZ11 + clamp PZ11 0031: 68.2 x 38 x 82.6 mm. Kit - IP 20. Dimensions of other kits are indicated in the description of the selected socket.

Technical data

  • Family
    R2N R3N R4N R15 2P R15 3P
