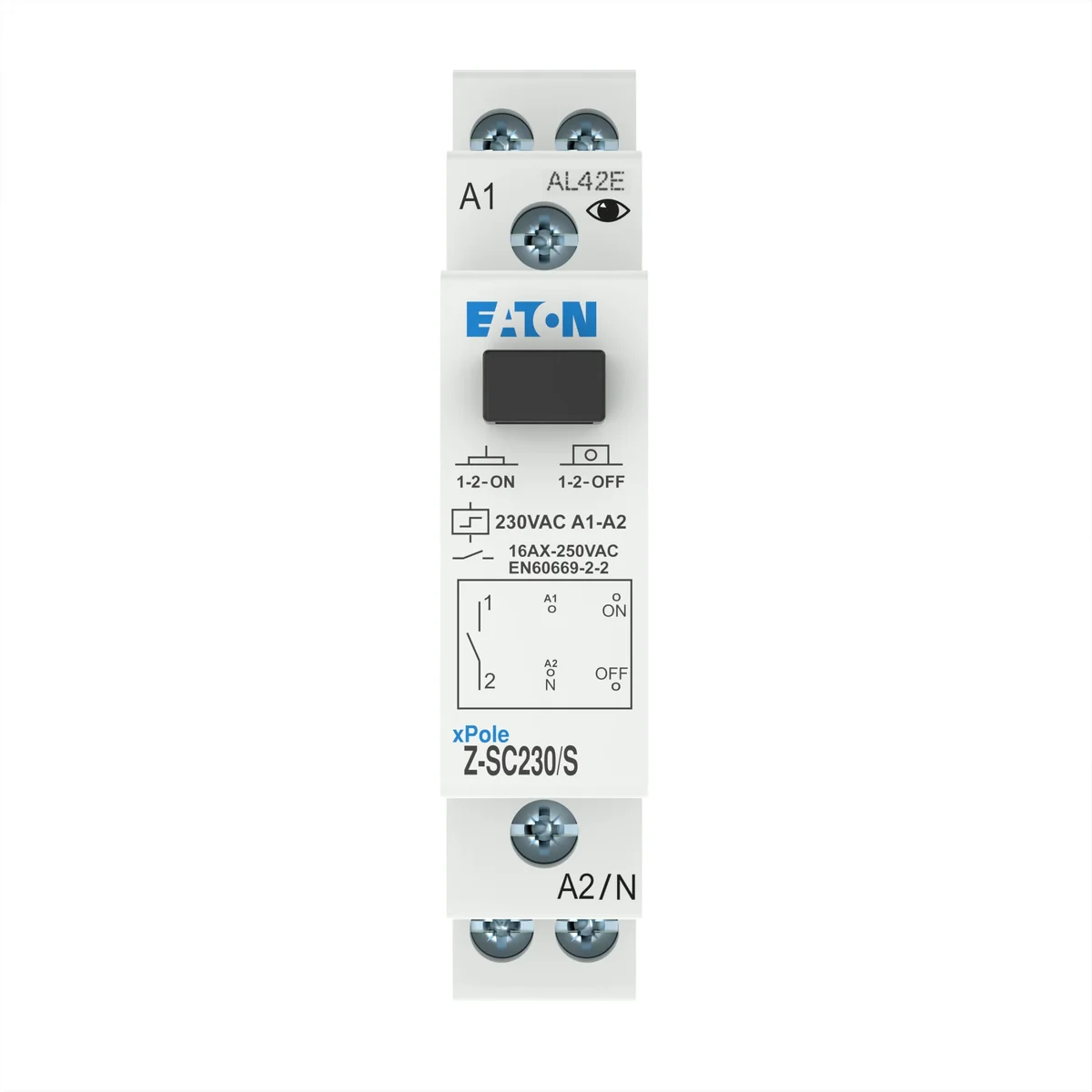

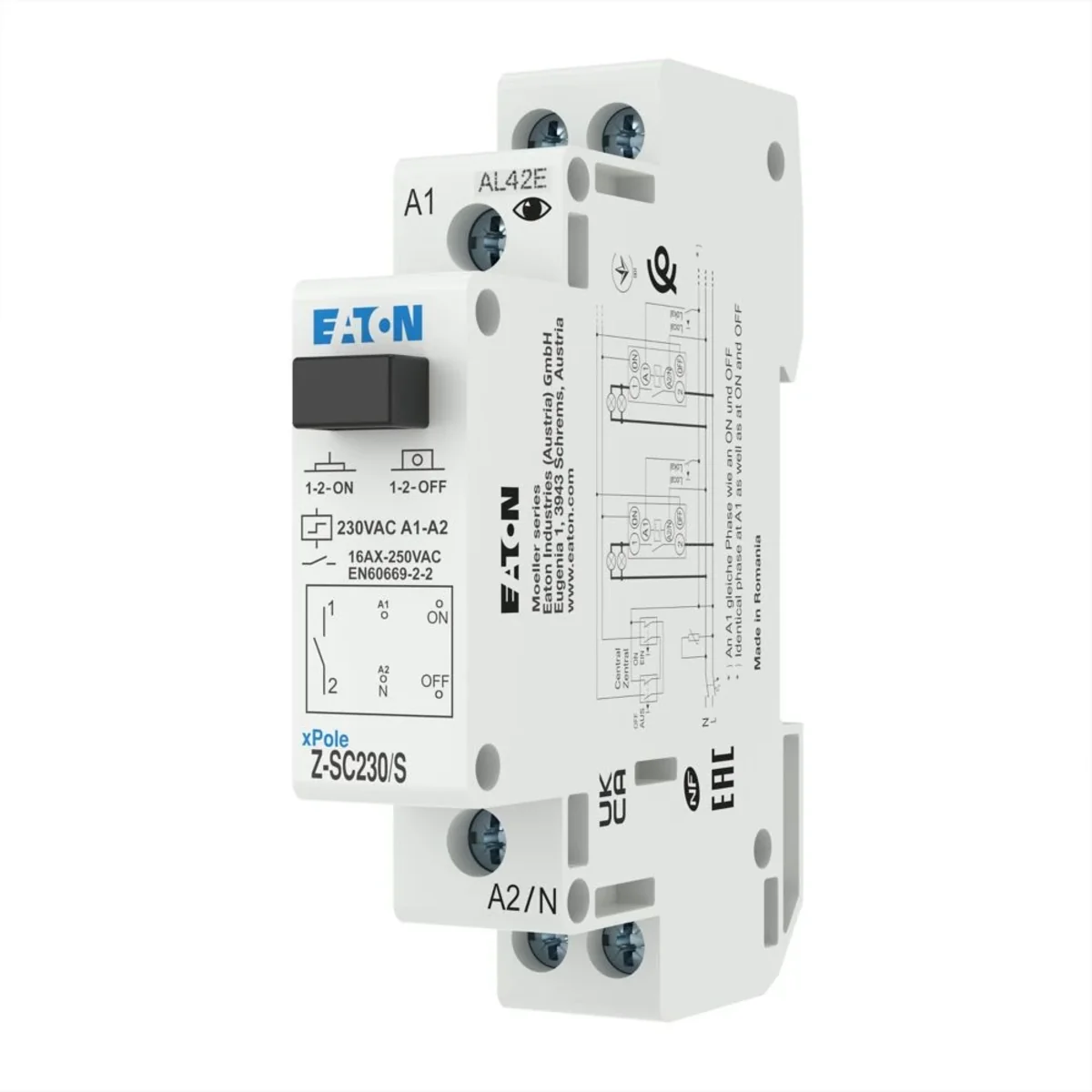

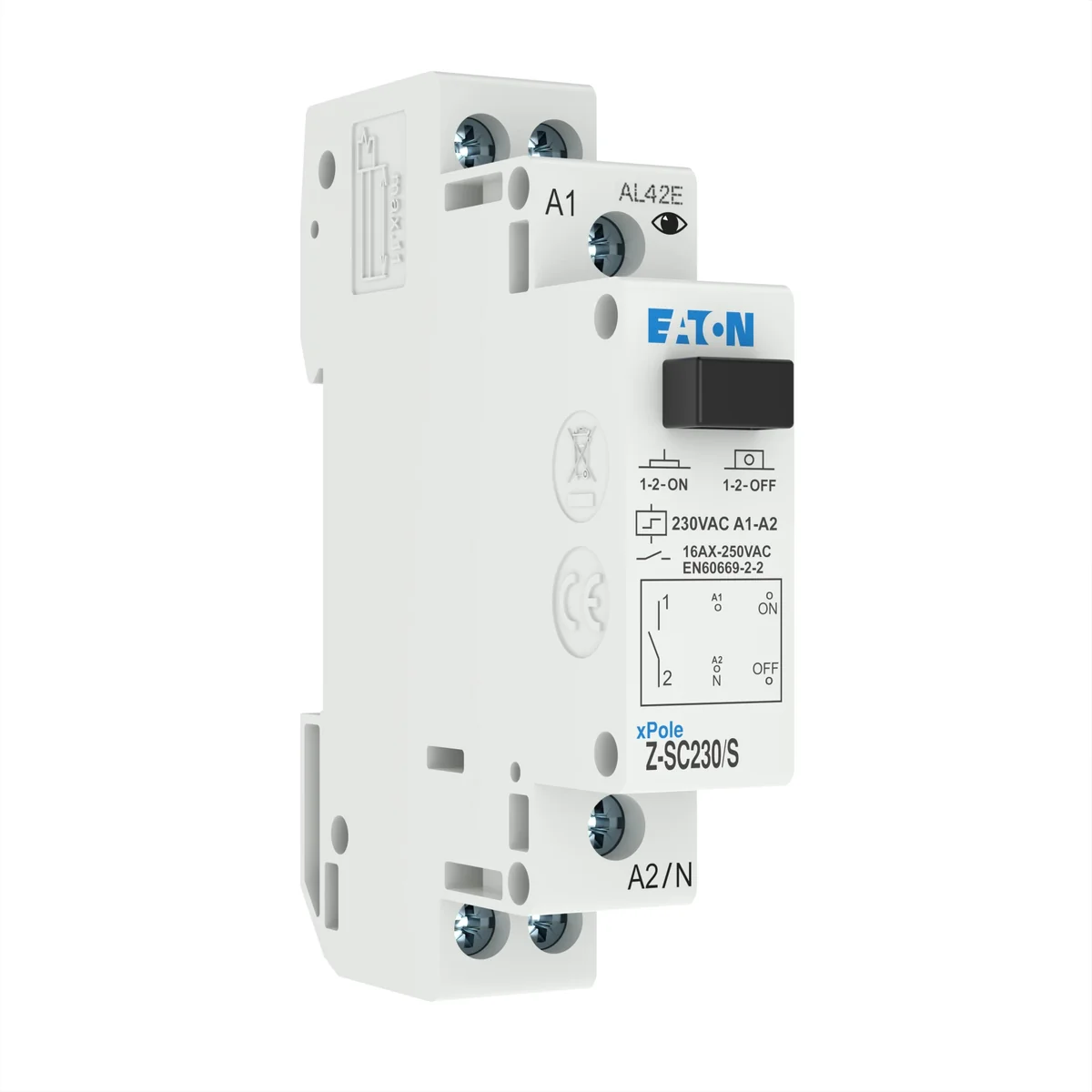

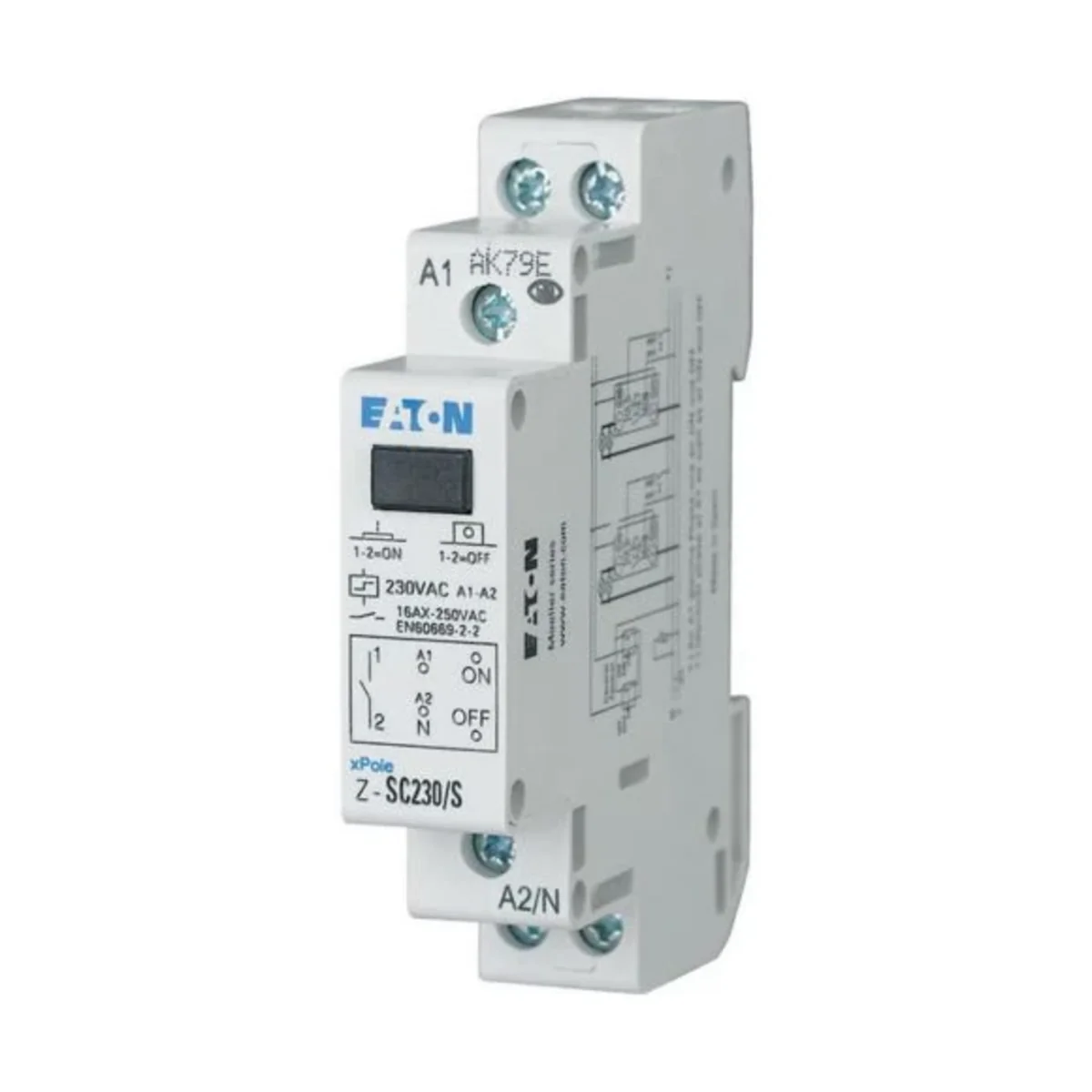

Impulse relay, Z-SC230/S 265299
local index:
APN005MOEL
Catalog No:
265299
EAN code:
4015082652999
Manufacturer:
EATON
Number of NO contacts: 1
Price:
71,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print
Ask about the product
Product description
Impulse relay, Z-SC230/S
Technical data
-
Number of NO contacts1
Other technical data
-
FunctionMechanical for centralized control
-
Width in number of modular spacings1
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Control voltage 20 ... 0 V
-
Frequency control voltage 20 ... 0 Hz
-
Supply voltage250 ... 250 V
-
Max. incandescent lamp load1980 W
-
Max. load fluorescent lamp (Duo circuit)1820 VA
-
Max. switching current (cos phi = 0.6)10 A
-
Mounting methodDIN rail
-
Built-in depth60 mm
-
Number of contacts as normally closed contact0
-
Control voltage 1230 ... 230 V
-
Frequency control voltage 150 ... 50 Hz
-
Type of control voltage 2AC
-
Rated switch current16 A
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp1020 VA
-
Max. load fluorescent lamp (parallel compensated)1150 VA
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 2 pcs. | 120 pcs. |
| Weight (kg) | 0,136 | 0,143 | 0,286 | 17,359 |
| Volume (m3) | 0,000 | 0,000 | 0,000 | 0,017 |
| Width (m) | 0,018 | 0,020 | 0,037 | 0,190 |
| Length (m) | 0,080 | 0,082 | 0,092 | 0,385 |
| Depth (m) | 0,070 | 0,072 | 0,075 | 0,235 |
