Automation
Relays and drivers
Overcurrent relays

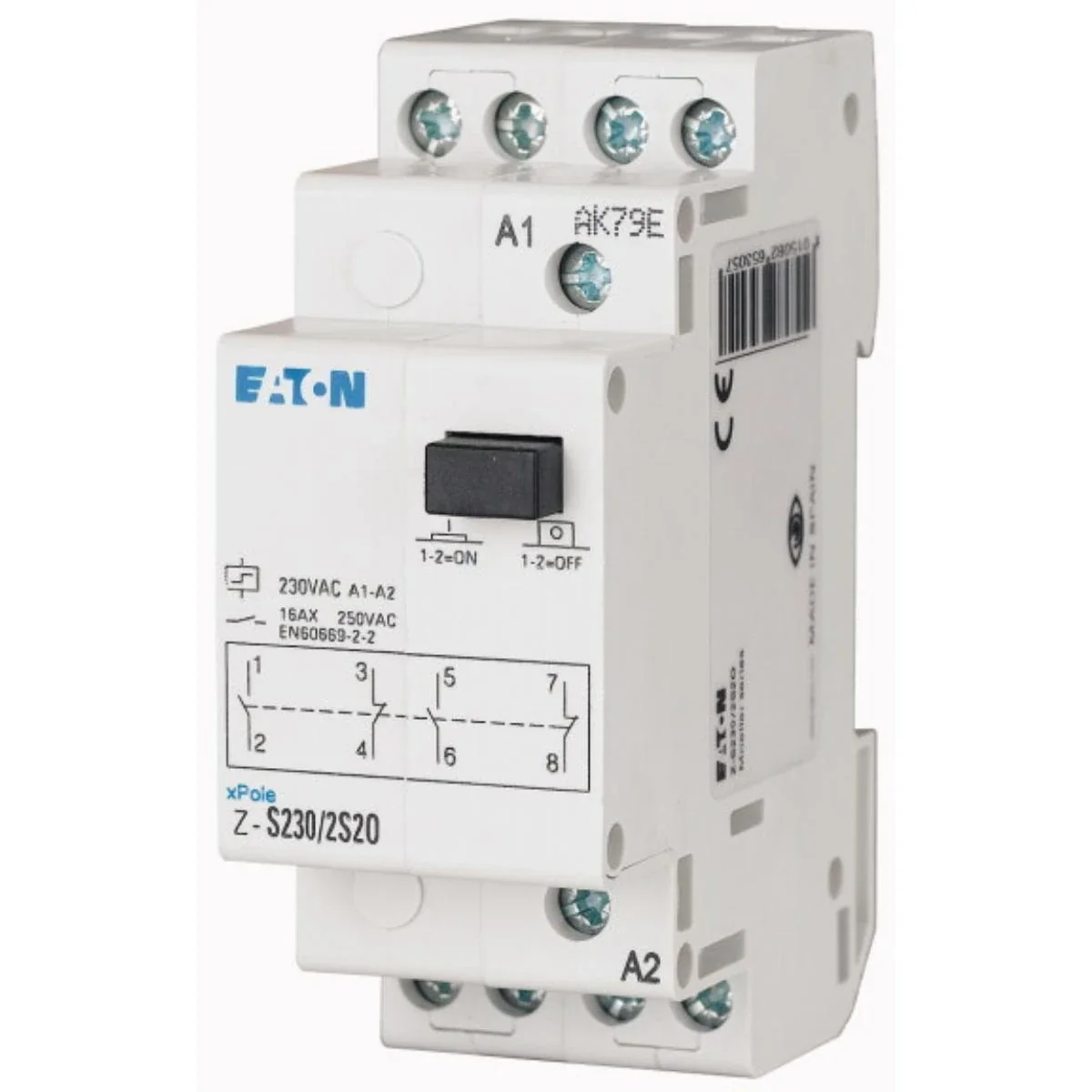

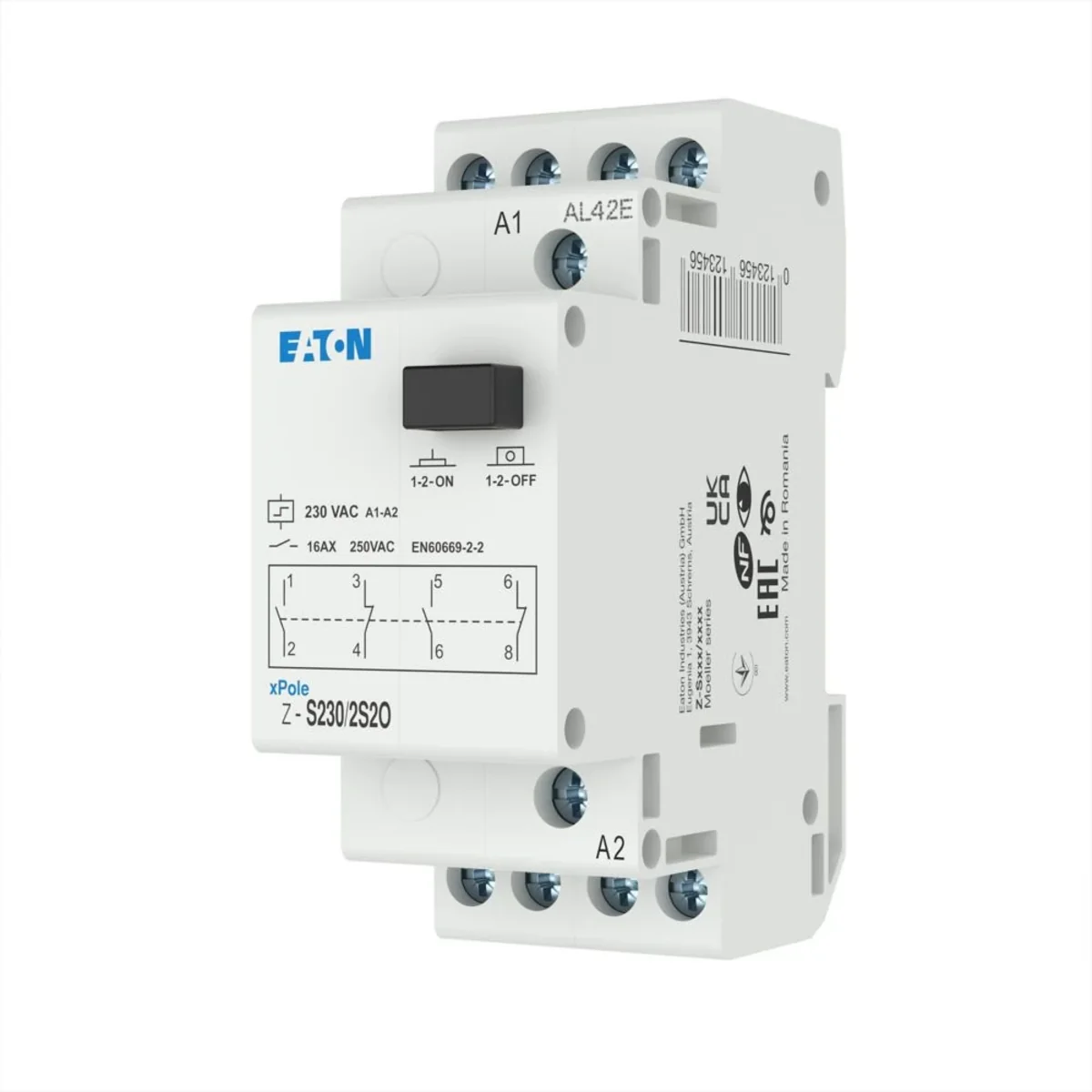

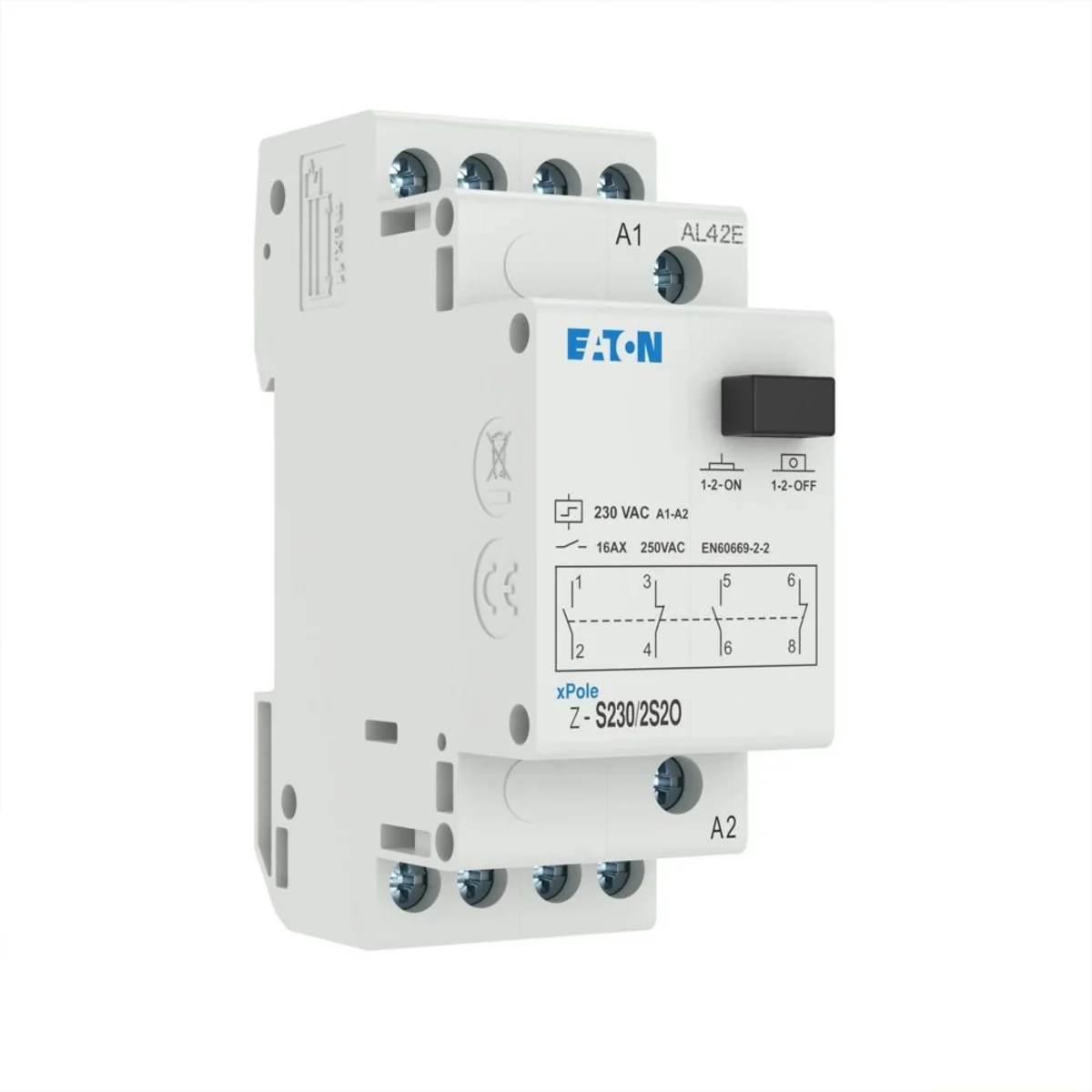

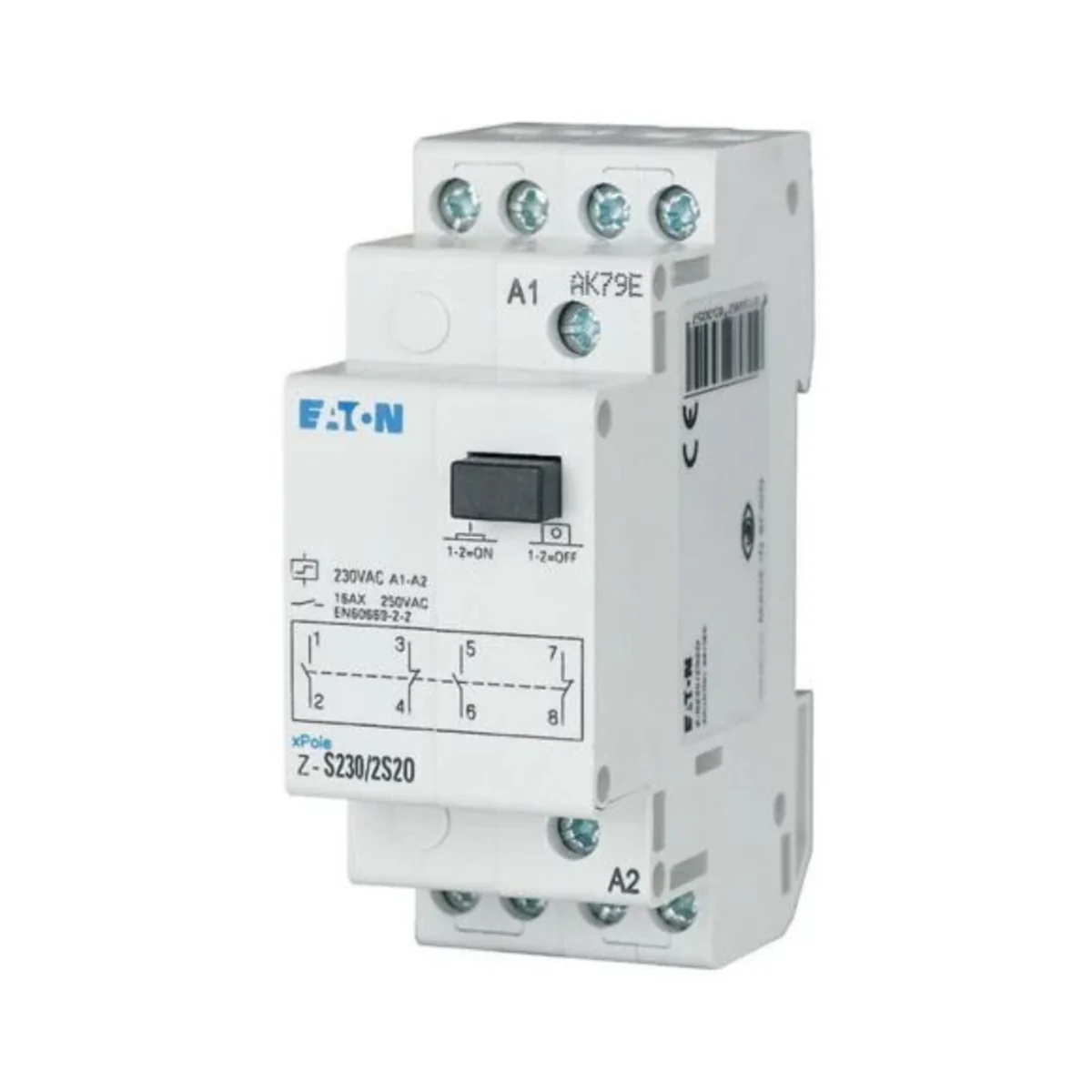

Impulse relay, Z-S230/2S2O 265305
local index:
APN021MOEL
Catalog No:
265305
EAN code:
4015082653057
Click on the photo to enlarge
Manufacturer:
EATON
Number of NO contacts:
2
See full description
Price:
92,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Impulse relay, Z-S230/2S2O
Technical data
Number of NO contacts
2
Other technical data
Function
Mechanical switch
Width in number of modular spacings
2
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Type of control voltage 1
AC
Control voltage 2
0 ... 0 V
Frequency control voltage 2
0 ... 0 Hz
Supply voltage
240 ... 415 V
Max. incandescent lamp load
0 W
Max. load fluorescent lamp (Duo circuit)
0 VA
Max. switching current (cos phi = 0.6)
0 A
Mounting method
DIN rail
Built-in depth
60 mm
Number of contacts as normally closed contact
2
Control voltage 1
230 ... 230 V
Frequency control voltage 1
50 ... 50 Hz
Type of control voltage 2
AC
Rated switch current
16 A
Voltage type (supply voltage)
AC
Max. load fluorescent lamp
0 VA
Max. load fluorescent lamp (parallel compensated)
0 VA
Bulk packaging
A kind of package
Skrzynia
Karton
Quantity
1 pcs.
60 pcs.
Weight (kg)
0,277
16,819
Volume (m3)
0,000
0,017
Width (m)
0,037
0,190
Length (m)
0,092
0,385
Depth (m)
0,075
0,235
