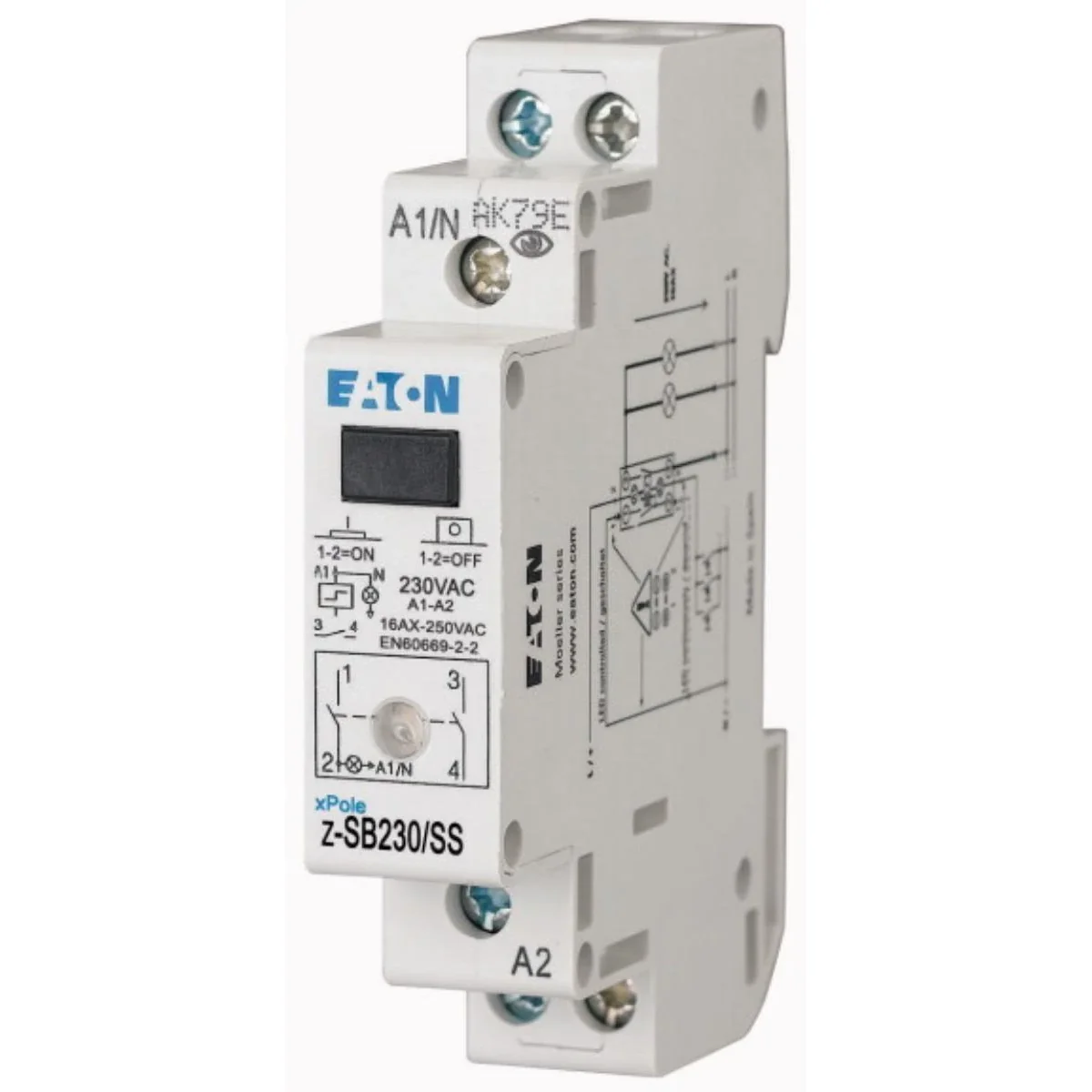

Impulse relay with signaling diode, Z-SB230/SS 265301
local index:
APN002MOEL
Catalog No:
265301
EAN code:
4015082653019
Manufacturer:
EATON
Number of NO contacts: 2
Price:
61,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print
Ask about the product
Product description

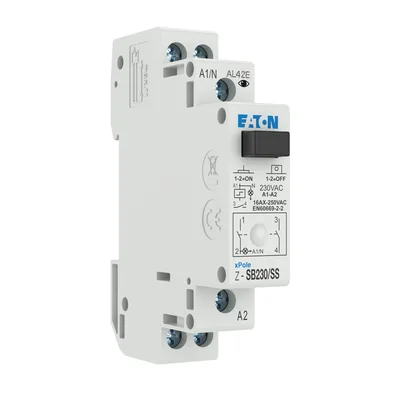

Impulse relay with signaling diode, Z-SB230/SS
Technical data
-
Number of NO contacts2
Other technical data
-
FunctionOther
-
Width in number of modular spacings1
-
Number of contacts as normally open contact2
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Control voltage 20 ... 0 V
-
Frequency control voltage 20 ... 0 Hz
-
Supply voltage250 ... 250 V
-
Max. incandescent lamp load0 W
-
Max. load fluorescent lamp (Duo circuit)0 VA
-
Max. switching current (cos phi = 0.6)0 A
-
Mounting methodDIN rail
-
Built-in depth60 mm
-
Number of contacts as normally closed contact0
-
Control voltage 1230 ... 230 V
-
Frequency control voltage 150 ... 50 Hz
-
Type of control voltage 2AC
-
Rated switch current16 A
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp0 VA
-
Max. load fluorescent lamp (parallel compensated)0 VA
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 2 pcs. | 120 pcs. |
| Weight (kg) | 0,139 | 0,146 | 0,292 | 17,719 |
| Volume (m3) | 0,000 | 0,000 | 0,000 | 0,017 |
| Width (m) | 0,018 | 0,020 | 0,037 | 0,190 |
| Length (m) | 0,080 | 0,082 | 0,092 | 0,385 |
| Depth (m) | 0,070 | 0,072 | 0,075 | 0,235 |
