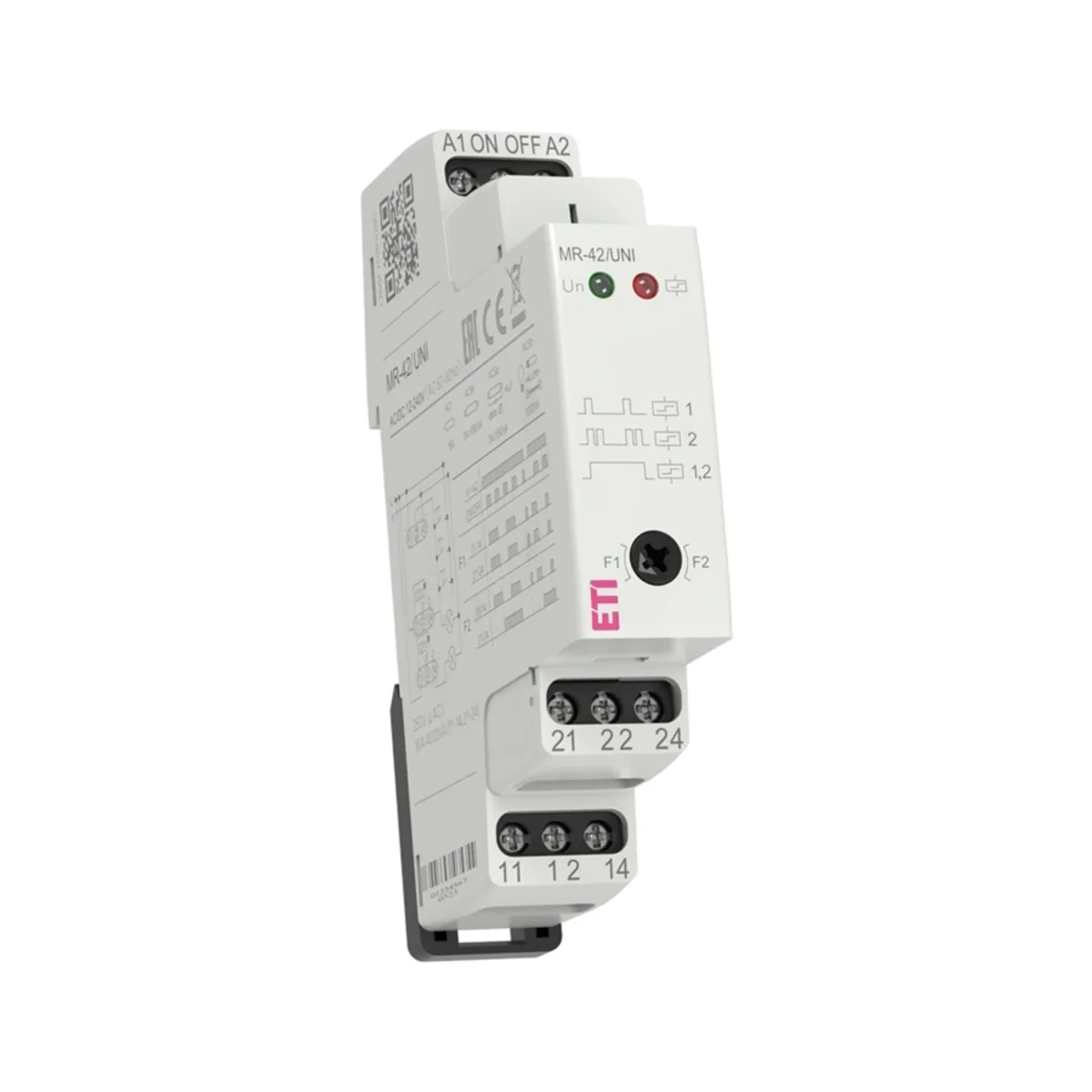

Impulse relay (bistable) with UNI MR-42 memory 002470008

local index:
APE001ETIP
Catalog No:
002470008
EAN code:
8594030338285
Manufacturer: ETI POLAM
Number of functions: 2
Rated voltage [V]: 230
Clamps: 2.5mm2
Price:
49,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - Allows you to control the operation of devices using an impulse. The contacts are switched after each pulse, the MR-42 serial function allows you to control two groups of receivers with one button.

Advantages:
→ universal supply voltage,
→ contacts working in parallel or in series,
→ load capacity 16A,
→ memory - after turning off the power, the device remembers the last position of the contacts,
→ quiet operation,
→ width one module,
→ mounting on a TH 35 rail.

Technical data

  • Number of functions
    2
  • Clamps
    2.5mm2
  • Compliance with standards
    EN 61812-1, EN 50081, EN 61000
  • Rated voltage [V]
    230
  • Power
    Terminals A1 - A2
  • PKWIU
    27.12.24.0

Other technical data

  • Type of excitation
    Analogue with single function
  • Mounting method
    DIN rail
  • Built-in height
    65 mm
  • Supply voltage
    12 ... 240 V
  • Nominal switching current at 250 V AC
    16 A
  • Function
    Passing break contact
  • Width in number of modular spacings
    1
  • Number of changeover switches
    2
  • Voltage type (supply voltage)
    AC/DC
