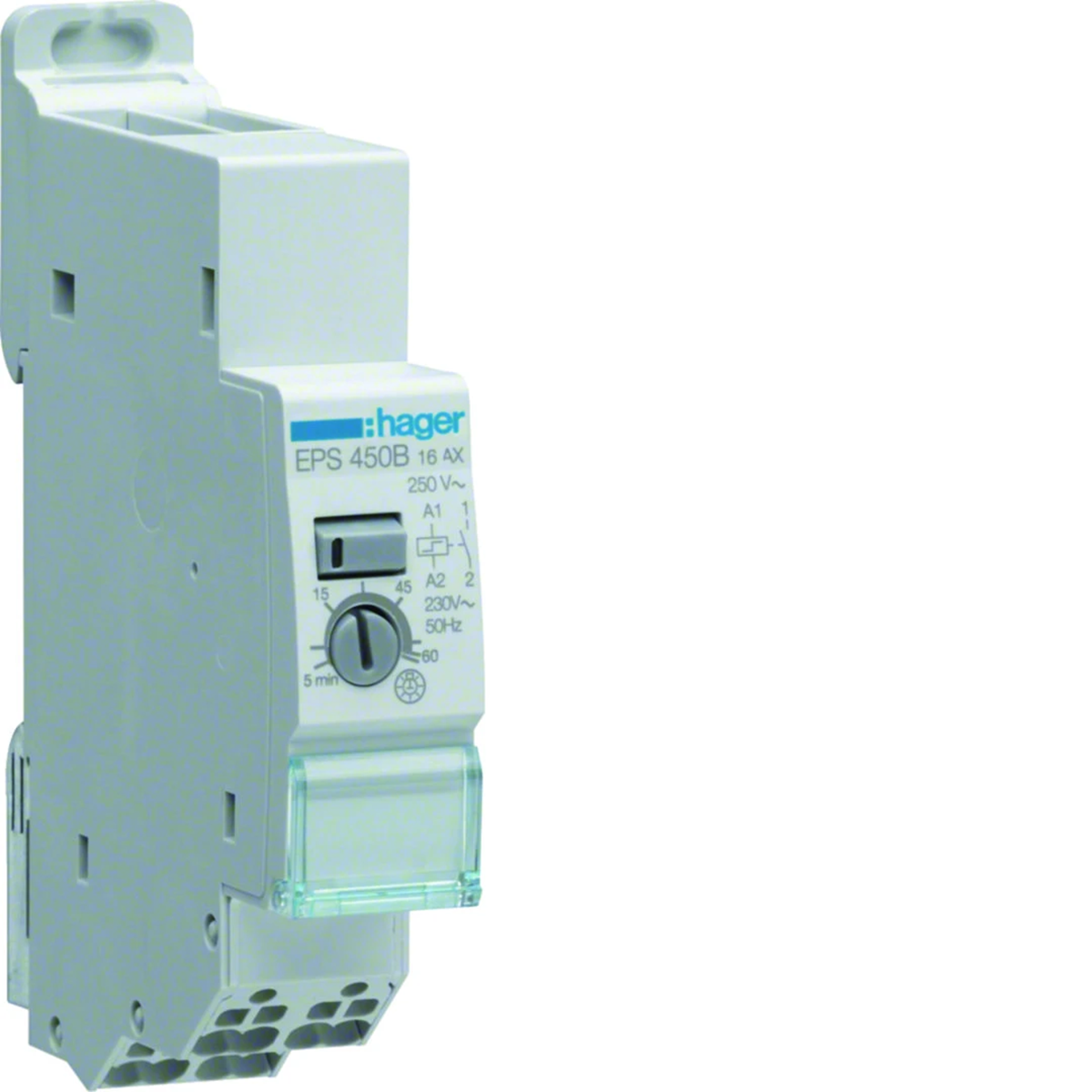

imp. breaker 8-24V+230V 1Z/16A time delay electronic EPS450B

Electronic bistable relays for use in installations where a silent switching process is important.
• low noise
• standards:
PN-EN 60669-1
PN-EN 60669-2-1
PN-EN 60669-2-2
• for impulse control of lighting circuits up to 16 A
• 230 V inputs and outputs are bridged in the device
• in the case of devices with different control voltages, there is a galvanic separation between low and low voltages (> 4 kV)
• devices with high continuous current for illuminated buttons (up to 100 mA)
• devices with adjustable disconnection delay
• low inrush and hold current
• accessories: auxiliary contacts EPN 051 and EPN 053

With adjustable delay 1NO 16 A 230 V AC 50/60 Hz 1 1 EPS450B
- silent switching
- delay time time: 5min. up to 1h
- manual override
- status visualization - LED
