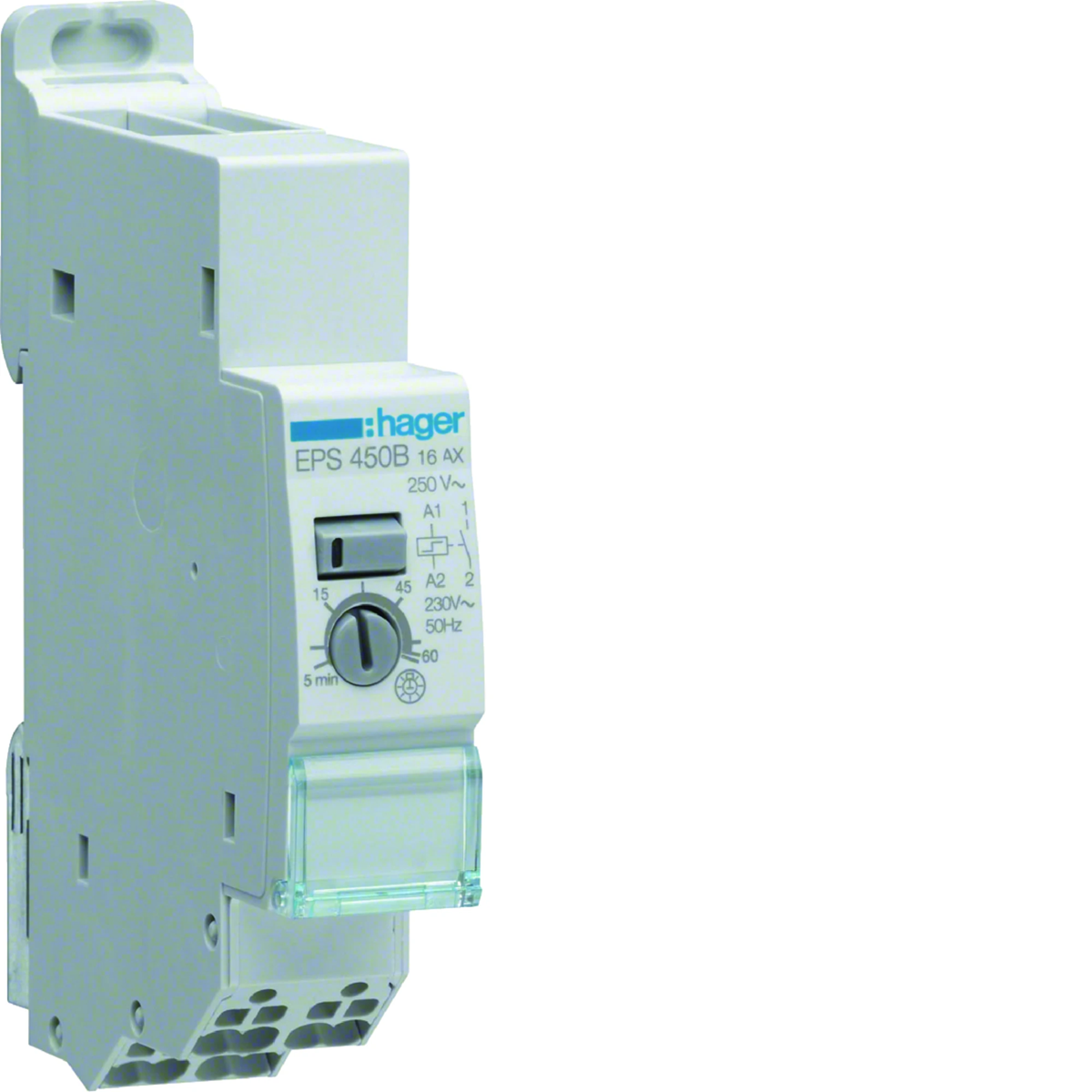

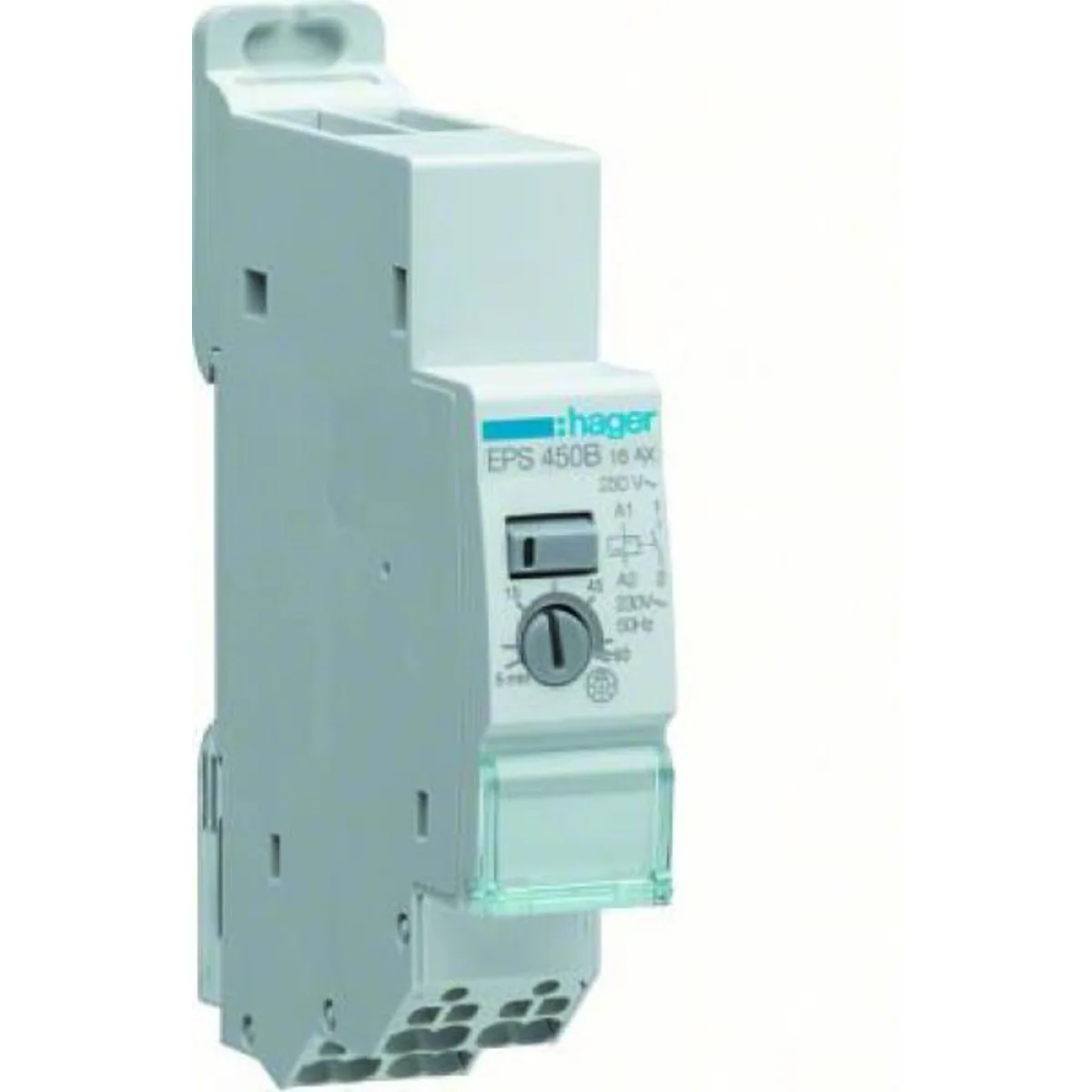

imp. breaker 8-24V+230V 1Z/16A time delay electronic EPS450B

Name: imp. breaker 8-24V+230V 1Z/16A time delay electronic
Brand: HAGER
SKU: APC042HAGE
Price: 154.34 PLN

local index:

APC042HAGE

Catalog No:

EPS450B

EAN code:

3250612364268

imp. breaker 8-24V+230V 1Z/16A time delay electronic

Click on the photo to enlarge

Manufacturer: HAGER

Number of modules: 1

Maximum power [W]: 1500

AC control voltage [V]: 8/12/24/230

See full description

Price:

154,34 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Electronic bistable relays for use in installations where a silent switching process is important.
• low noise
• standards:
PN-EN 60669-1
PN-EN 60669-2-1
PN-EN 60669-2-2
• for impulse control of lighting circuits up to 16 A
• 230 V inputs and outputs are bridged in the device
• in the case of devices with different control voltages, there is a galvanic separation between low and low voltages (> 4 kV)
• devices with high continuous current for illuminated buttons (up to 100 mA)
• devices with adjustable disconnection delay
• low inrush and hold current
• accessories: auxiliary contacts EPN 051 and EPN 053

With adjustable delay 1NO 16 A 230 V AC 50/60 Hz 1 1 EPS450B
- silent switching
- delay time time: 5min. up to 1h
- manual override
- status visualization - LED

Technical data

Number of modules

1
AC control voltage [V]

8/12/24/230
Idle current [mA]

100
Number of modules

1

Maximum power [W]

1500
Rated voltage [V]

230
Rated current [A]

16
PKWIU

27.12.24.0

Other technical data

Function

Electronic switch
Width in number of modular spacings

18
Number of contacts as normally open contact

1
Number of contacts as change-over contact

0
Type of control voltage 1

AC
Control voltage 2

0 ... 0 V
Frequency control voltage 2

50 ... 60 Hz
Supply voltage

230 ... 230 V
Max. incandescent lamp load

1500 W
Max. load fluorescent lamp (Duo circuit)

600 VA
Max. switching current (cos phi = 0.6)

16 A

Mounting method

DIN rail
Built-in depth

60 mm
Number of contacts as normally closed contact

0
Control voltage 1

8 ... 230 V
Frequency control voltage 1

50 ... 60 Hz
Type of control voltage 2

AC
Rated switch current

16 A
Voltage type (supply voltage)

AC
Max. load fluorescent lamp

1000 VA
Max. load fluorescent lamp (parallel compensated)

300 VA

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	108 pcs.	2592 pcs.
Weight (kg)	0,070	0,080	8,835	235,040
Width (m)	0,018	0,080	0,310	0,800
Length (m)	0,095	0,025	0,210	1,014
Depth (m)	0,061	0,095	0,360	1,200
