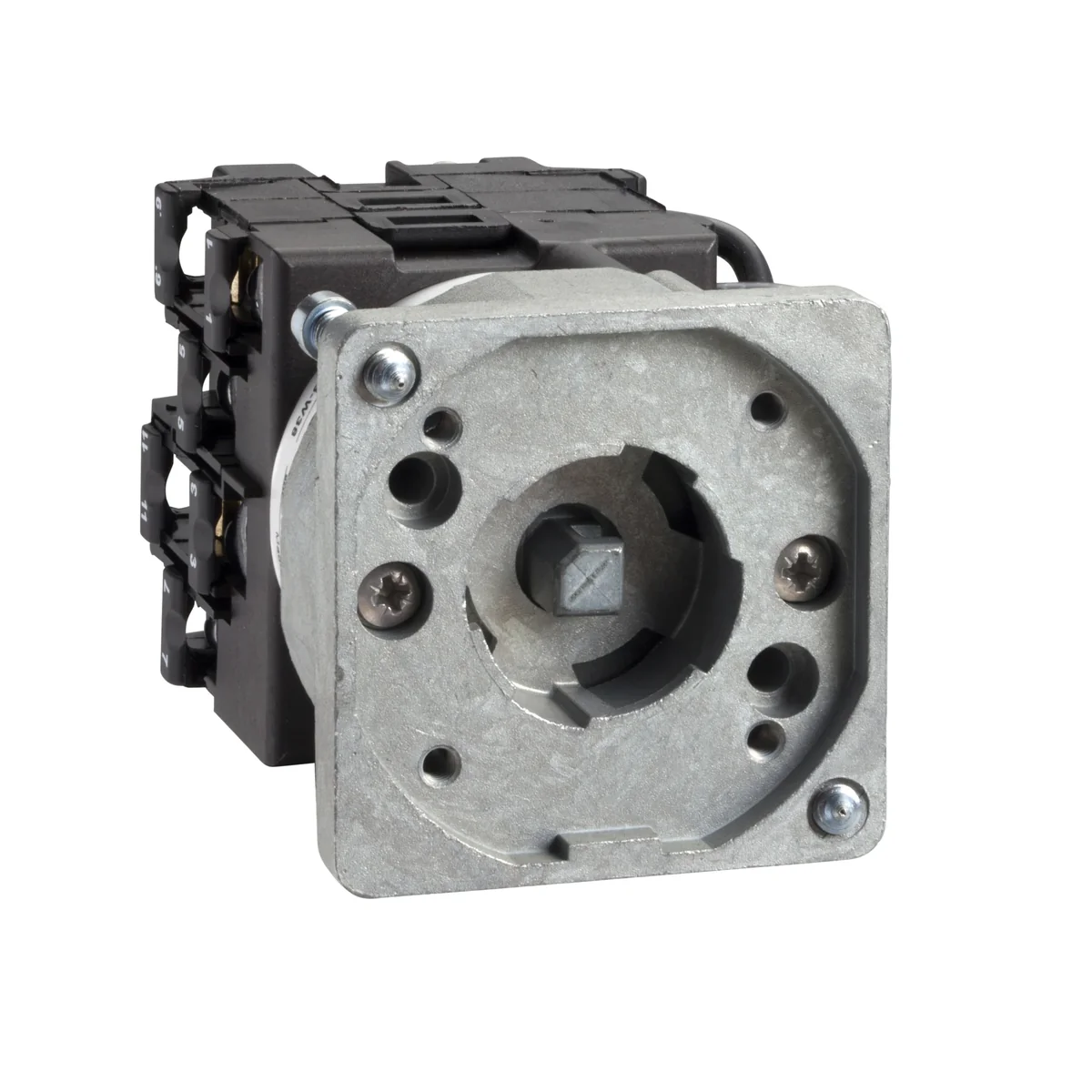

Harmony K Switch body Ø22mm 12A screw terminals K1M024NX
local index:
ALA417SCHN
Catalog No:
K1M024NX
EAN code:
3389110795080
Manufacturer:
SCHNEIDER ELECTRIC
Family: Harmony K
Price:
145,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Harmony K Switch body Ø22mm 12A screw terminals
Technical data
-
FamilyHarmony K
-
PKWIU27.11.61.0
Other technical data
-
ModelLevel switch
-
With zero (off) positionNo
-
Rated permanent current Iu12 A
-
Rated operation power at AC-3, 400 V1.5 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Suitable for front mountingYes
-
Suitable for intermediate mountingYes
-
Type of control elementOther
-
Number of poles3
-
With retraction in 0-positionNo
-
Rated operation current Ie at AC-3, 400 V3.3 A
-
Degree of protection (IP), front sideOther
-
Number of auxiliary contacts as normally open contact0
-
Suitable for floor mountingNo
-
Suitable for distribution board installationNo
-
Complete device in housingNo
-
Type of electrical connection of main circuitScrew connection
