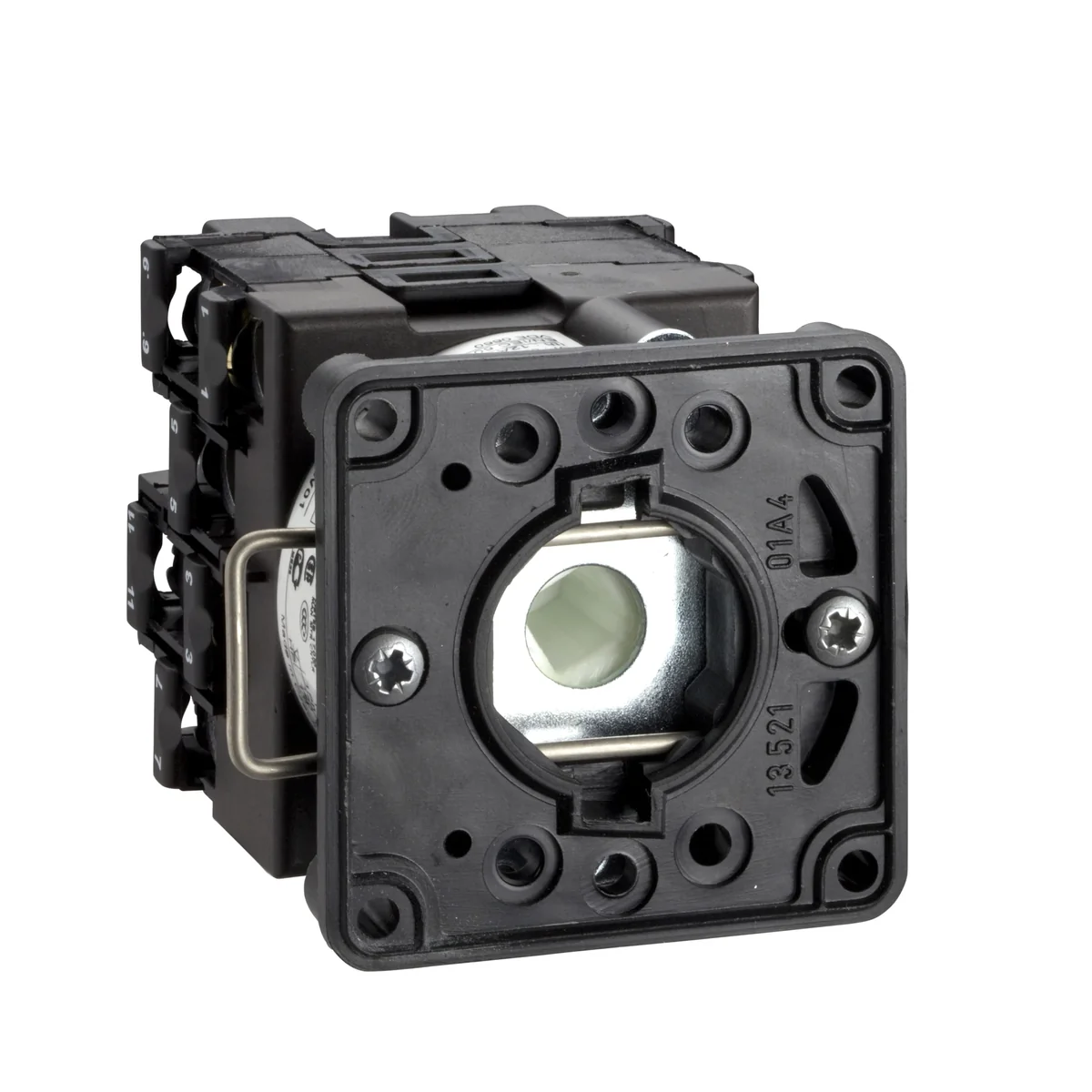

Harmony K Switch body 3P 20A screw terminals K2C003A

local index:
ALA419SCHN
Catalog No:
K2C003A
EAN code:
3389110446685
Manufacturer: SCHNEIDER ELECTRIC
Family: Harmony K
Price:
33,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Harmony K Switch body 3P 20A screw terminals

Technical data

  • Family
    Harmony K
  • PKWIU
    27.11.61.0

Other technical data

  • Model
    On/Off switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    20 A
  • Rated operation power at AC-3, 400 V
    4 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Other
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation current Ie at AC-3, 400 V
    8 A
  • Degree of protection (IP), front side
    Other
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    No
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Type of electrical connection of main circuit
    Screw connection
