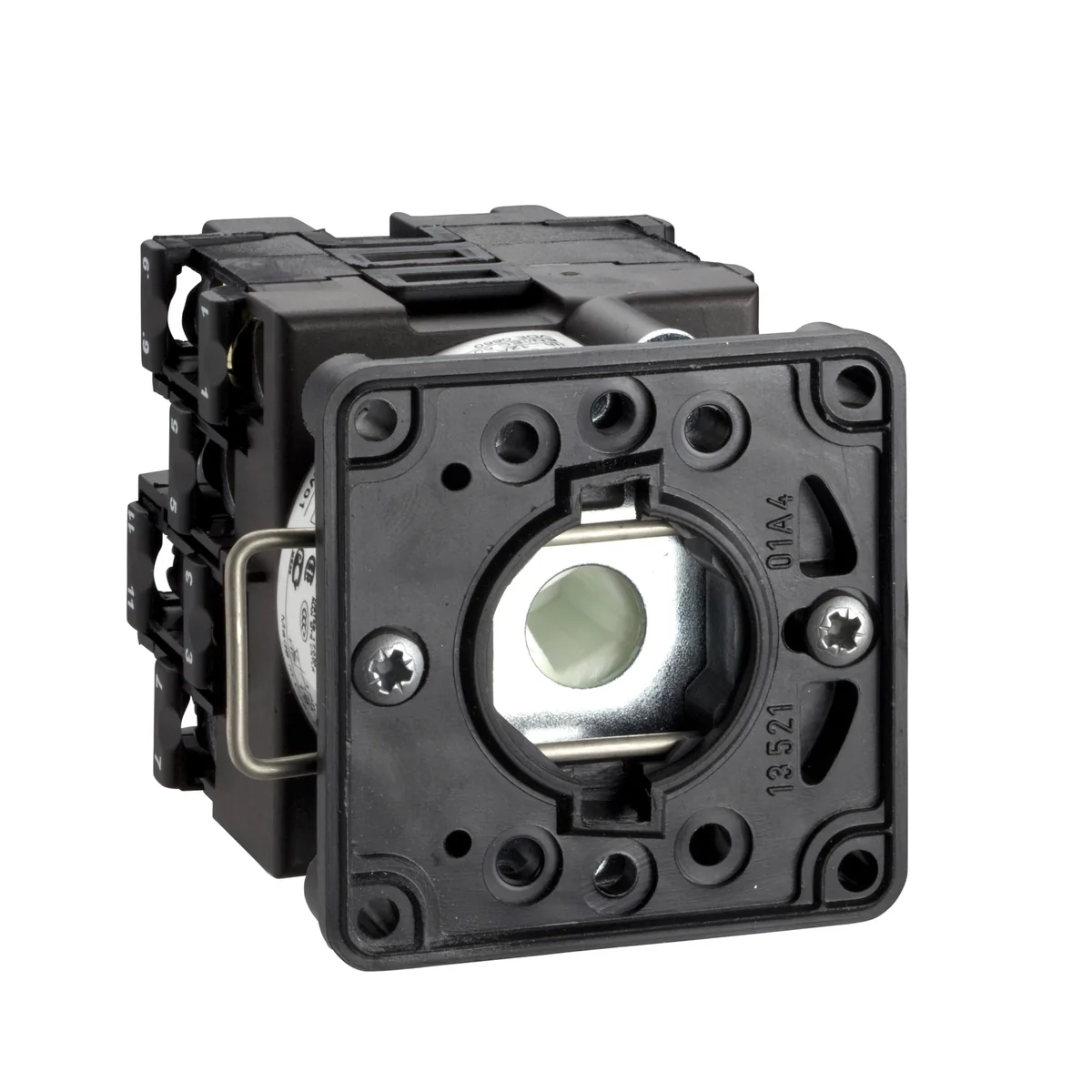

Harmony K Switch body 2P 12A screw terminals K1M016N

local index:
ALA416SCHN
Catalog No:
K1M016N
EAN code:
3389110444148
Manufacturer: SCHNEIDER ELECTRIC
Family: Harmony K
Price:
123,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Harmony K Switch body 2P 12A screw terminals

Technical data

  • Family
    Harmony K
  • PKWIU
    27.11.61.0

Other technical data

  • Model
    Level switch
  • With zero (off) position
    No
  • Rated permanent current Iu
    12 A
  • Rated operation power at AC-3, 400 V
    1.5 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    Yes
  • Suitable for intermediate mounting
    Yes
  • Type of control element
    Other
  • Number of poles
    2
  • With retraction in 0-position
    No
  • Rated operation current Ie at AC-3, 400 V
    3.3 A
  • Degree of protection (IP), front side
    Other
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    No
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Type of electrical connection of main circuit
    Screw connection
