Harmony K Step switch body 1 pole 45° 12A for Ø22mm K1E005NX
local index:
ALA408SCHN
Catalog No:
K1E005NX
EAN code:
3389110794243
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Family:
Harmony K
See full description
Price:
179,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description

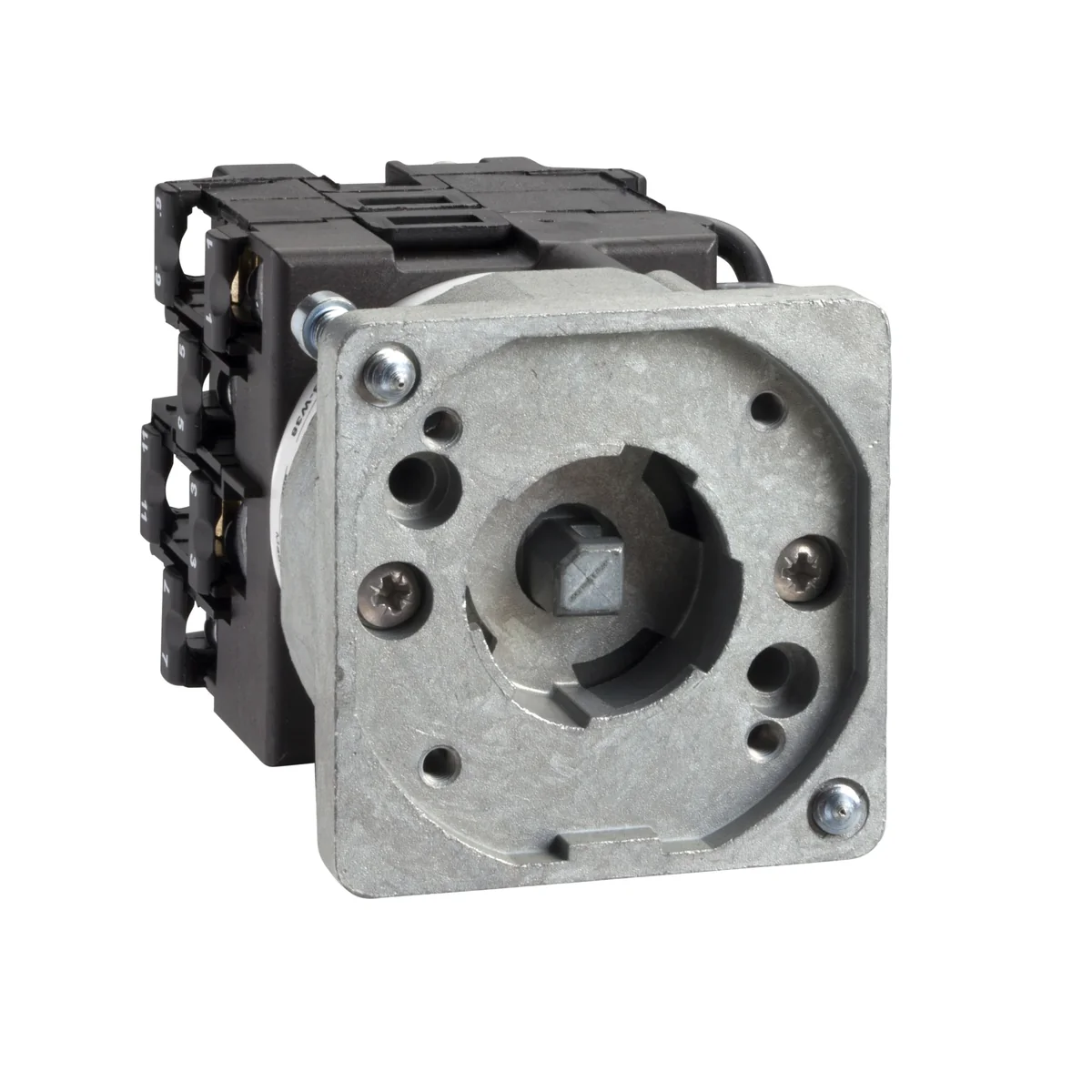

Harmony K Step switch body 1 pole 45° 12A for Ø22mm
Technical data
Family
Harmony K
PKWIU
27.11.61.0
Other technical data
Model
Level switch
With zero (off) position
No
Rated permanent current Iu
12 A
Rated operation power at AC-3, 400 V
1.5 kW
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Suitable for front mounting
Yes
Suitable for intermediate mounting
Yes
Type of control element
Other
Number of poles
1
With retraction in 0-position
No
Rated operation current Ie at AC-3, 400 V
3.3 A
Degree of protection (IP), front side
Other
Number of auxiliary contacts as normally open contact
0
Suitable for floor mounting
No
Suitable for distribution board installation
No
Complete device in housing
No
Type of electrical connection of main circuit
Screw connection
See more >>
